Installation -

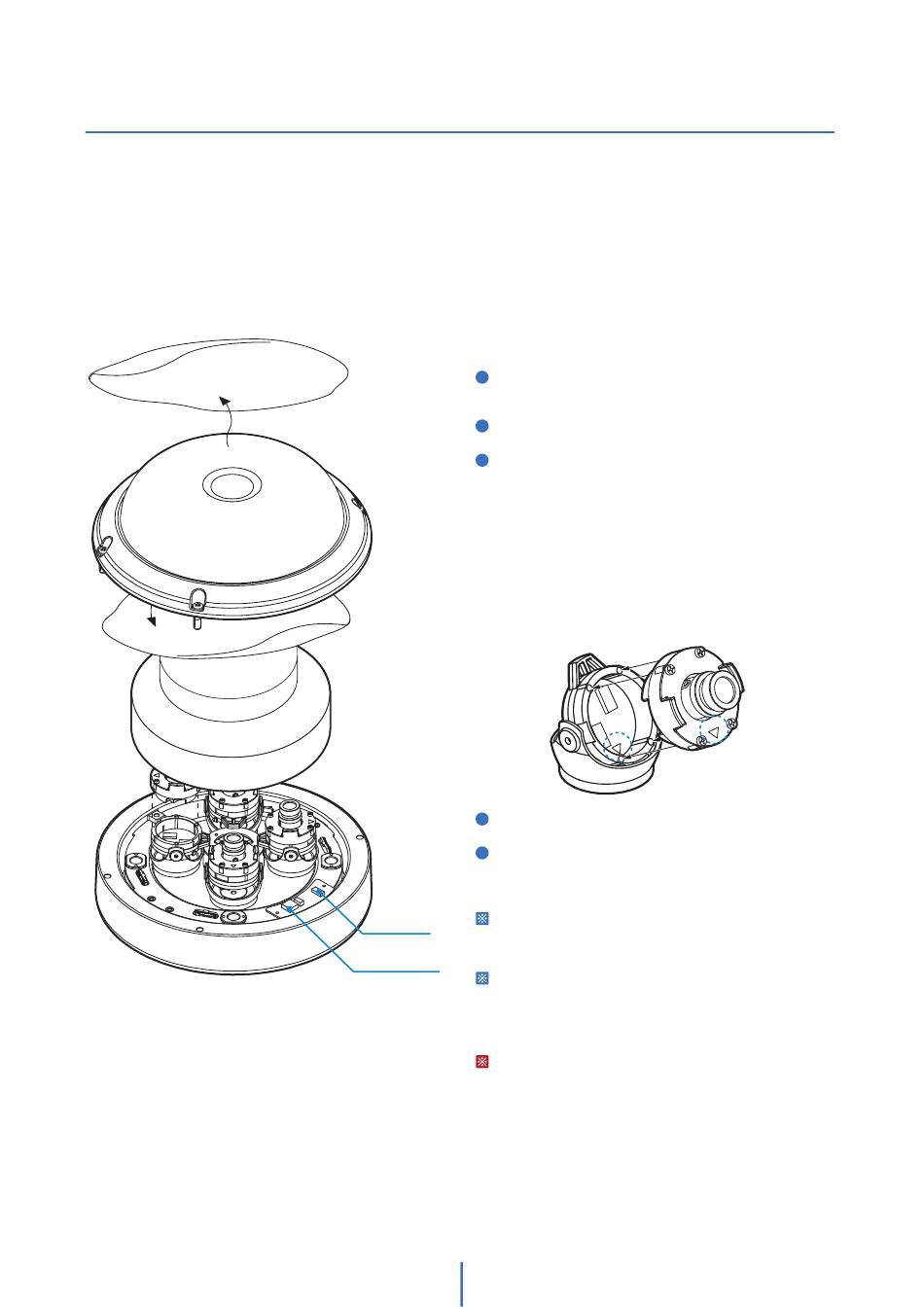

Disassemble the camera
Before installing your camera, you have to read the following cautions.
1. You have to check whether the location can bear five times of the weight of your camera.
2. Do not let the cables get caught in improper places or the electric line cover to be damaged. This may
cause a breakdown or fire.
3. When installing your camera, don't allow any person to approach the installation site. If you have any
valuable things under the place, move them away.
Before installing the camera, detach the dome cover from
1
the bottom case by using the hex Allen wrench provided.
Dome cover
outer protective film
Remove camera module's protective PEfoam.
2
Assemble the sensor module block (with a lens) to the base
3
guide. If you have purchased the DWC-PVX16W model, the
lens modules are sold separately.
a. Assemble the module block to the guide base by aligning the
b. Make sure the sensor module fits into the base guide according
c. Assembling the sensor module to the base guide upside down is
d. Tighten the 4 bolts to the sensor module block.
Dome cover
inner protective film
Camera module
protective PEfoam
Base guide
4 Remove the dome cover inner protective film.
5 Remove the dome cover outer protective film.
Reset to the factory default
Reset Button
Press the reset button for 5 seconds to return the setup
to the factory default.
Test Monitor
Select switch
Test monitor select switch
Connect the test monitor cable to a local monitor and the
camera. Click the test monitor select switch to view the image
of each lens on the monitor.
Warning:
If you press the 'Reset' button, you will lose all setting
data. If needed, please, make a note for further installation.
8
four (4) bolts to the four (4) guide points in the base guide.
to the image to the right.
impossible due to the interface socket locations.
Sensor
module block
