Installation -
Adjusting the camera angle
Tilting 60º
Rotation 357º
1. 180º configuration
Adjustinf direction of monitoring
1

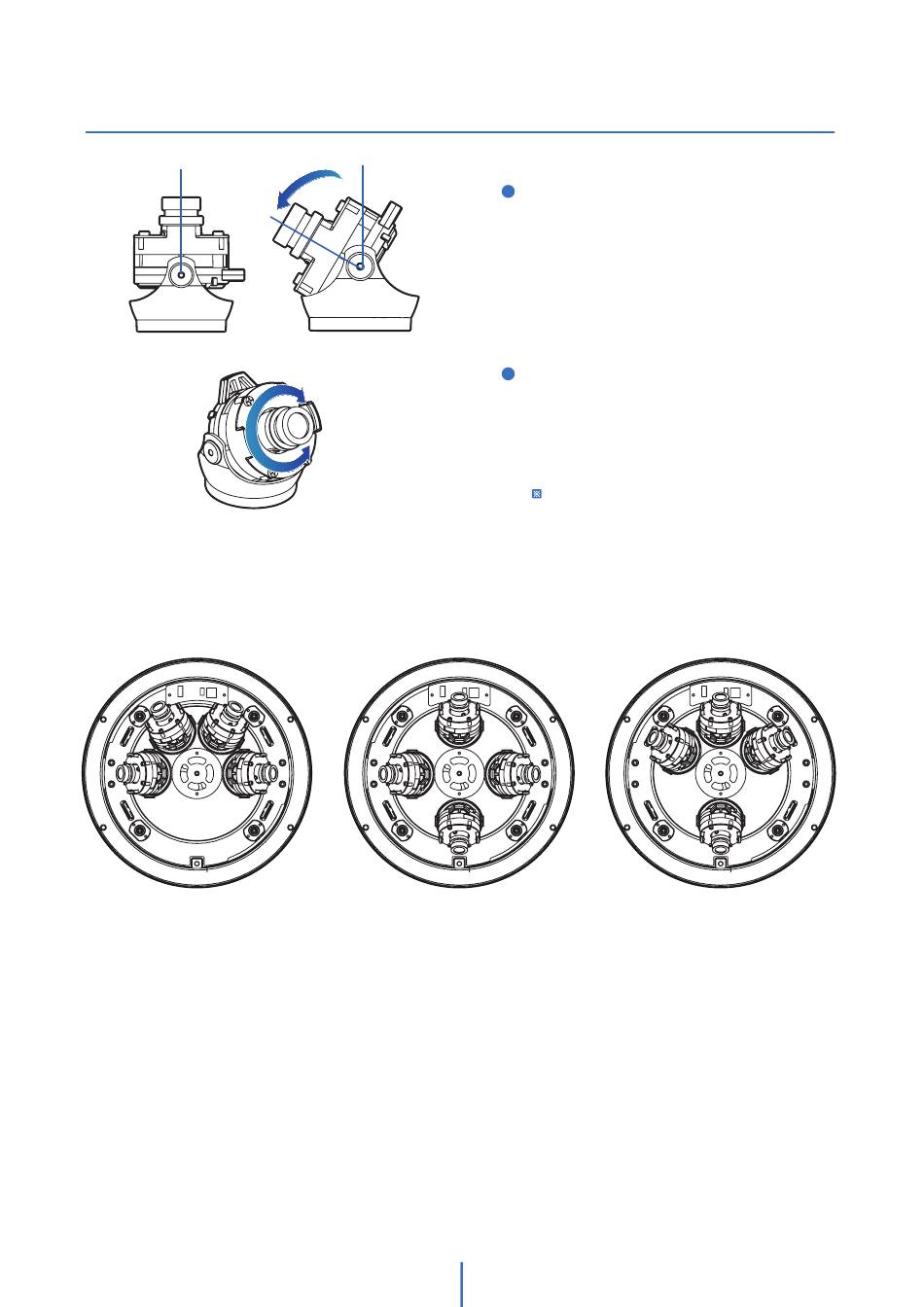

Adjust the direction of the camera while it its fixed on
the ceiling. Tilt is used to adjust the tilt. Rotating the
lens by its axis is called Rotation.
- Rotation angle is 357° total.
- Tilt rotation angle is 60° total.
How to adjust
2
- After attacing the camera to the magnetic board, adjust
the pan angle considering the direction to monitor.
- Adjust the horizontal angle so that the image does not
appear reversed during rotation.
- Adjust the tilt angle to point in the direction you want
to monitor.
Please note that the camera module is made of magnet,
which may damage the cable.
2. Random configuration
10
3. Random configuration
