Setup - Video & Audio Setup

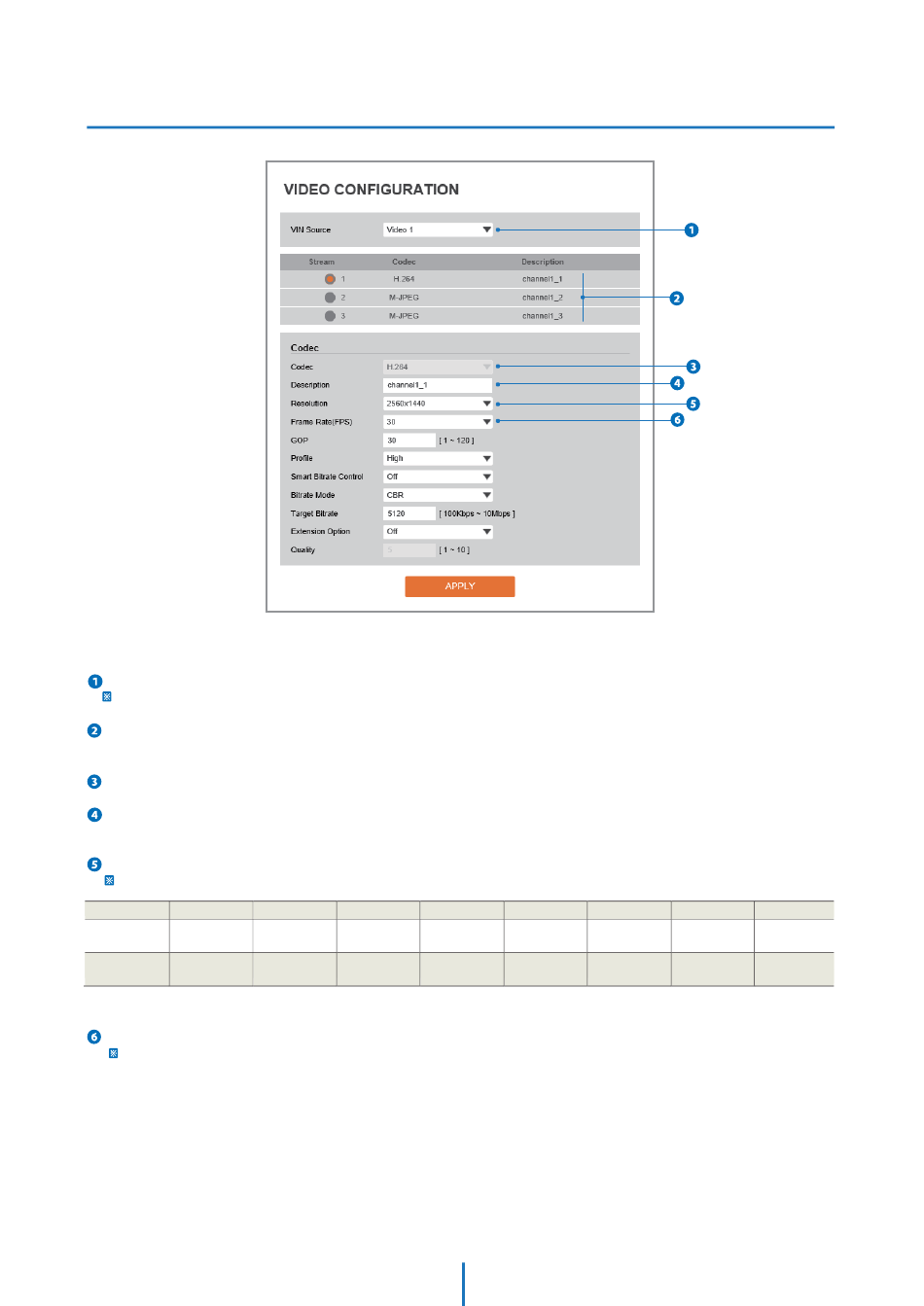

Video Configuration
VIN Source - Select the Video 1 ~ Video 4 and Set the video setup.
Click 'apply' to set the other video setting.
Live Video Channel Setup - The video can be configured to variety settings with a combination of codec and resolution.
The camera performance has to be considered when setting multiple channels. This effects on the performance of the camera.
Codec - Choose the video codec. According to the selected codec, the subcategories can be changed automatically.
Description - Input the additional description about the selected channel. Max. 30 alphabets are allowed (Including space).
For the description, English Alphabets, numbers and special characters ( - _ @ . ) can be used.
Resolution - Select the video resolution.
Available resolution can be depends on the codec setup between the channels.
4M
2560 x 1440
NTSC
PAL 2560 x 1440
Frame Rate - Select the maximum Frame Rate.
Available Frame Rate can be different although same codecs were set up.
3M 1080p/i
2304 x 1296 1920 x 1080 1280 x 720
2304 x 1296 1920 x 1080 1280 x 720
<Resolution of Video Format>
720p/i SVGA VGA
800 x 600 640 x 480
800 x 600 640 x 480
24
4CIF CIF
704 x 576 352 x 288
352 x 240
704 x 480
704 x 576 352 x 288
704 x 480 352 x 240
