Digital Watchdog MEGApix Flex DWC-PVX16W2 User Manual page 12

Installation -

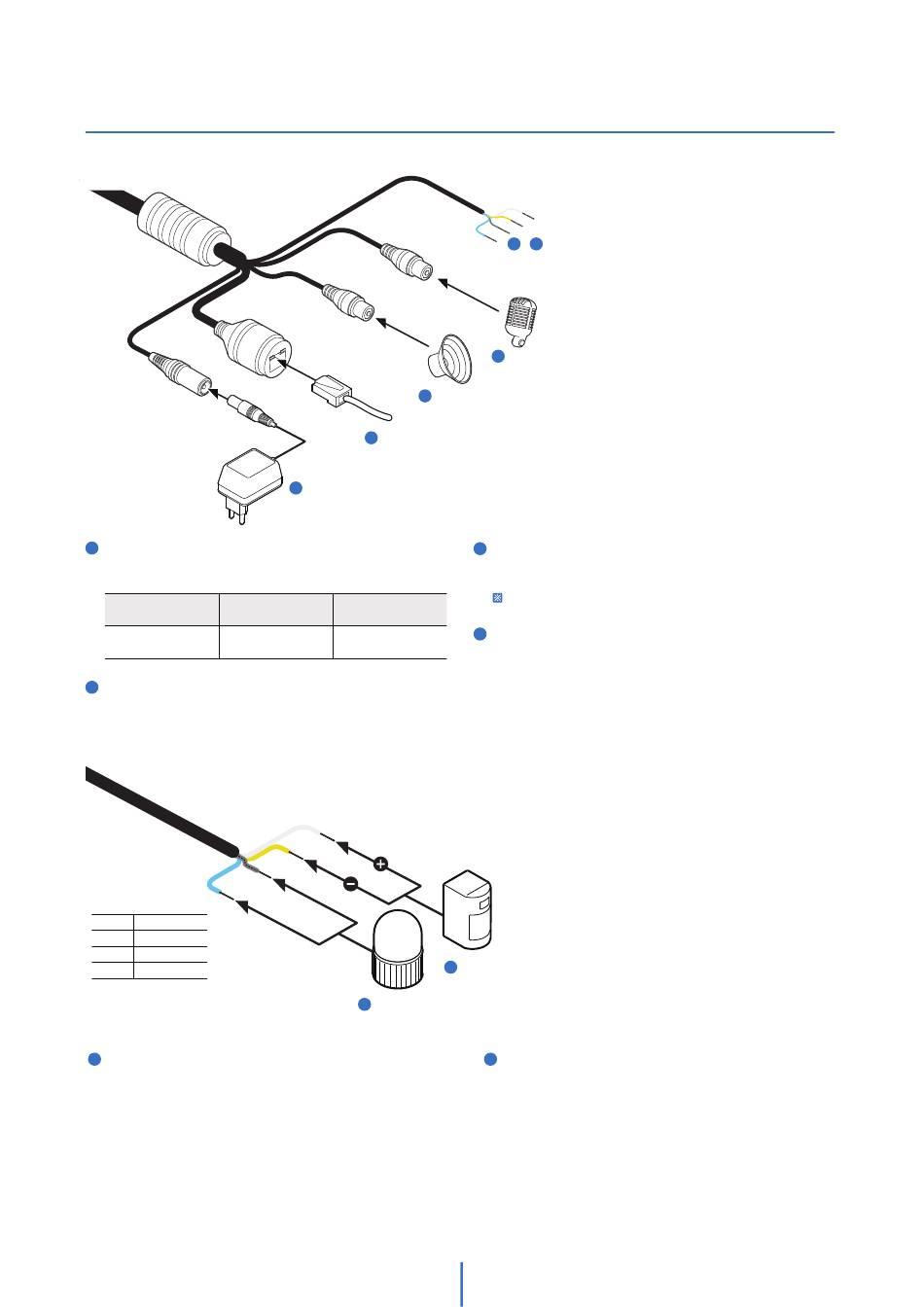

Cabling
Power Connection
1
Please, check the voltage and current capacity of rated power
carefully.
Rate Current
Power Consumption
DC 12V 16.5W
Network Connection
2
Connect the crossover cable into the RJ-45.
DI (+) WHITE
DI ( - ) YELLOW
DO ( - ) SKY BLUE
DO (+) GRAY + DOT
Alarm Output
5
It connects to the alarm lights, siren or lamps, and it is
activated according to the Setup menu setting.
Cable of the relay output device should connect to sky blue
and gray+dot line of the Alarm Cable.
Audio Output
3
Network
2
Power
1
PoE
IEEE 802.3at PoE+
6 Alarm Input
Alarm Output
5
12
Alarm In/Out
5 ~ 6
Audio Input
4
Audio Output
3
Connect the 'Audio Out' cable of the camera to device like
speaker.
Audio Out supports only RTSP Back channel function. It plans to make it
available on the web later.
Audio Input
4
Connect the 'Audio In' cable of the camera to the device like
microphone.
Alarm Input/Sensor
6
Cable of the sensor/alarm input device should connect to
yellow and white line of the Alarm Cable.
