Preparing for commissioning

Prerequisites: before you start
Before starting commissioning, you must answer the following questions:
● What is the data for the connected motor?
● What technological requirements must the drive fulfill?
● Via which inverter interfaces does the higher-level control operate the drive?
4.2.1

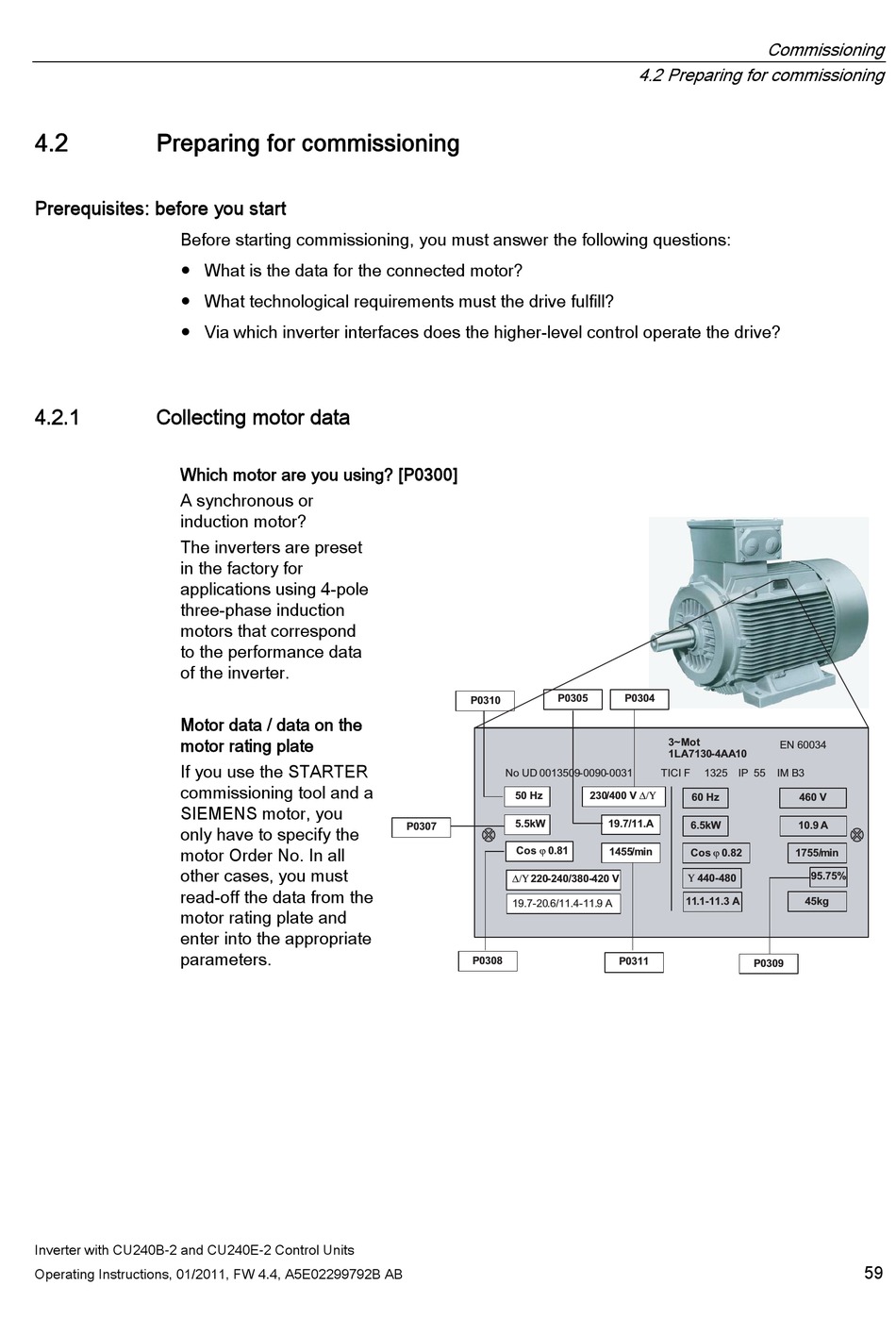

Collecting motor data

Which motor are you using? [P0300]
A synchronous or
induction motor?
The inverters are preset
in the factory for
applications using 4-pole
three-phase induction
motors that correspond
to the performance data
of the inverter.
Motor data / data on the
motor rating plate
If you use the STARTER
commissioning tool and a
SIEMENS motor, you
only have to specify the
motor Order No. In all
other cases, you must
read-off the data from the
motor rating plate and
enter into the appropriate
parameters.
