SA-ETH wiring

The optional SA-ETH card provides a standard Ethernet network
connection for connecting to a local network. The SA-ETH is listed
for use with the following DACRs.
Receiver Model
Osborne-Hoffman OH2000 and OH2000E (with a OH-TCP/IP-LC
card installed) (see note below)
Note: If the line card firmware is V2.2 or later, use the default CMS network settings. If
the line card firmware is V2.2 or earlier, the Timeout Seconds must be set to 60, the
Hello Timer set to 75, and the Line Cut timer in the line card itself set to 175 seconds.
If you are unsure of the firmware version in the receiver or there are communication
faults between the panel and the receiver, then these settings are recommended.
Circuit specifications
• Ethernet: 10/100 Base-T
• Network cable: Crossover cable or straight through cable
• Operating current
Standby/Alarm: 34 mA
Max.: 41 mA
• Max. wire runs: 200 feet (60 m), Cat 5 cable (panel to
communication equipment)

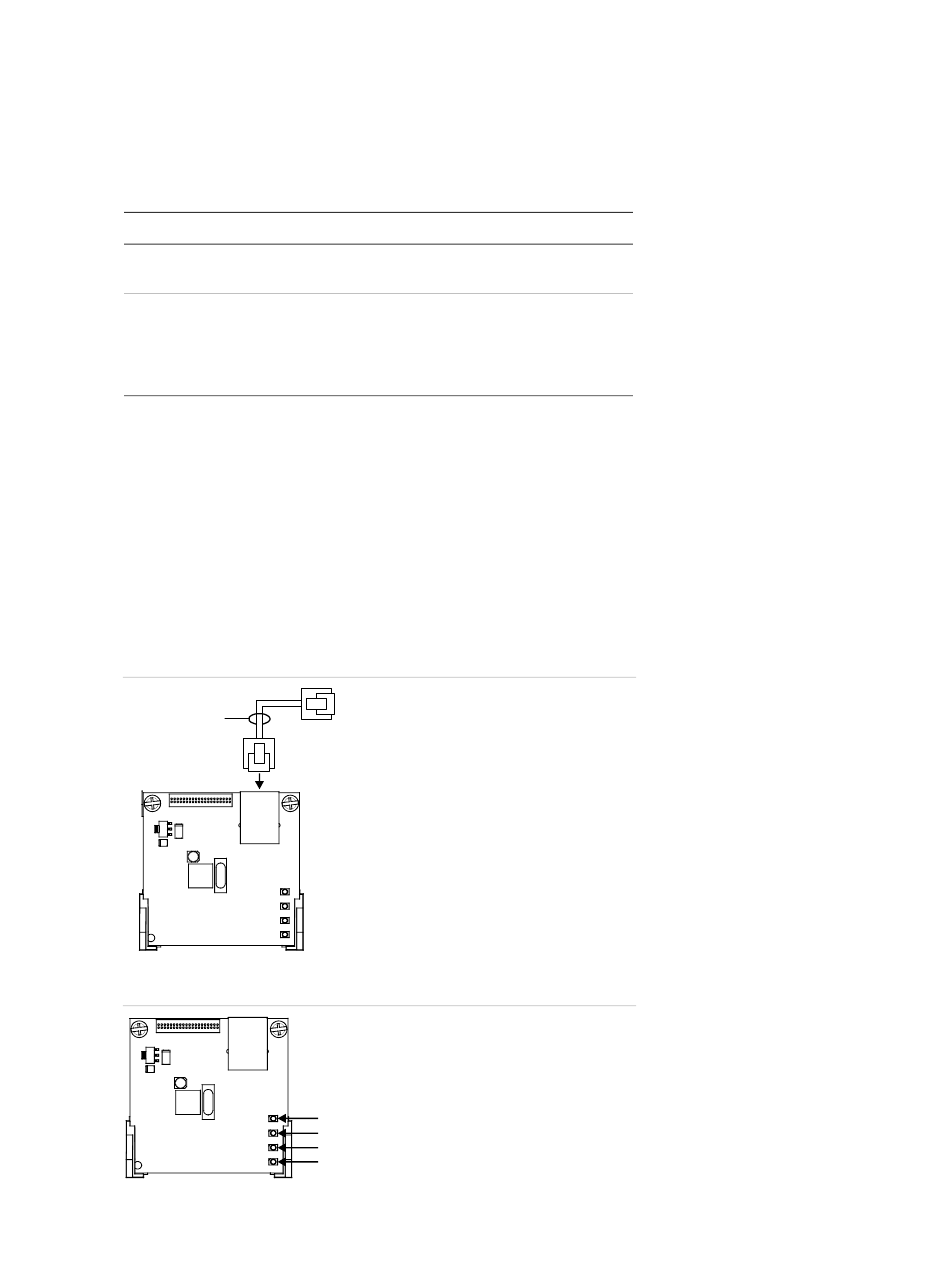

SA-ETH wiring

Network cable
Ethernet card
SA-ETH LEDs
Ethernet card
EST iO64 and iO500 Technical Reference Manual
To network
connection
(PC, router, switch, etc.)
LED 1 (DS1): Link
LED 2 (DS2): Speed
LED 3 (DS3): Duplex
LED 4 (DS4): Collision
Chapter 2: Installation and wiring
Format
Contact ID
