Operation overview

Front panel display

The front panel display is the user interface for the control panel.
The display is comprised of the LCD display, LED indicators, and
control buttons, which are used to operate and program the panel.

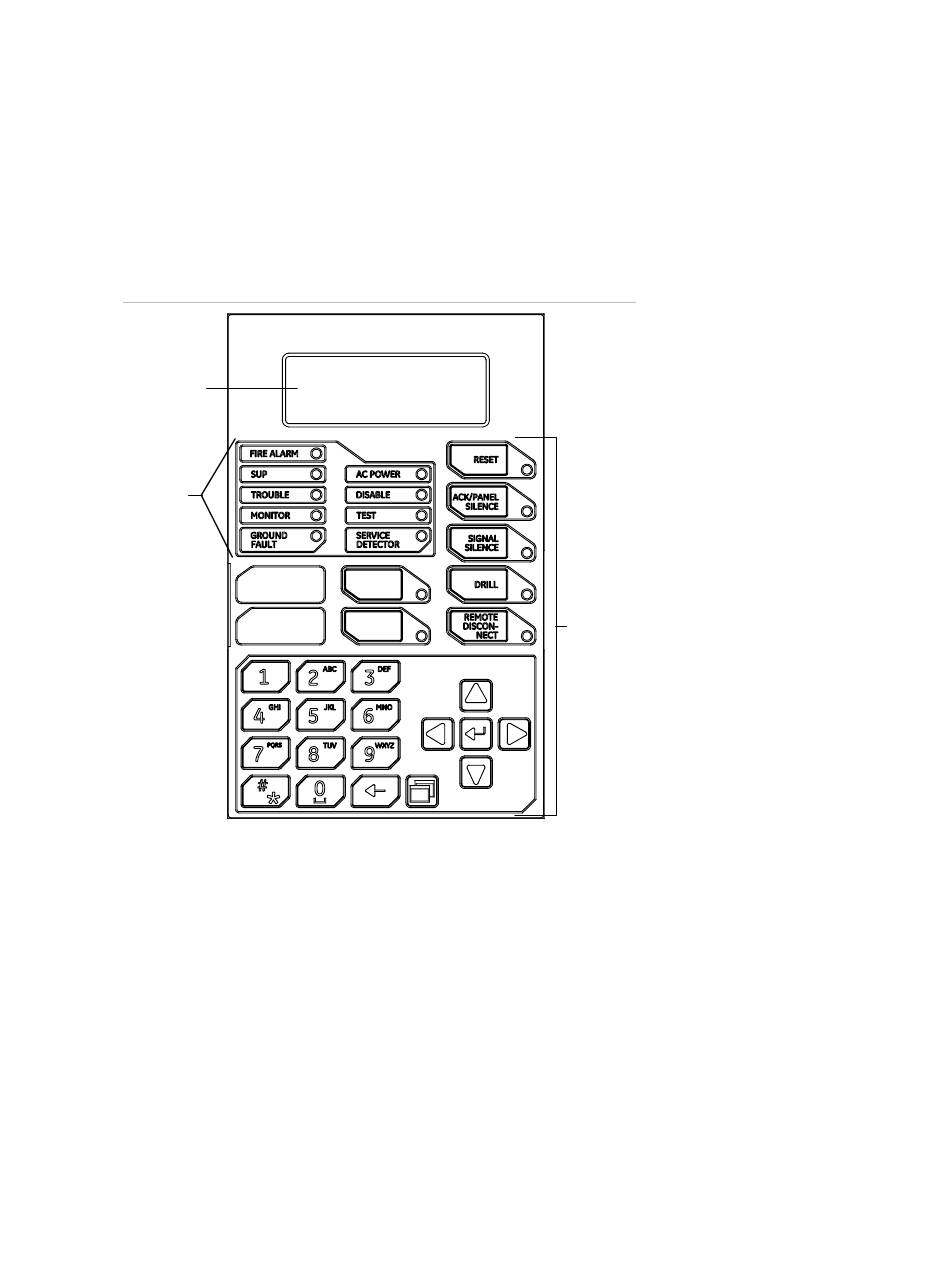

Front panel display layout
00:00:00
LCD
display
System
LEDs
,

Control panel operations

The control panel operates in either normal mode or off-normal
mode.
Normal mode
The panel operates in normal mode in the absence of any alarm,
supervisory, trouble, or monitor events. In normal mode, the control
panel monitors the system.
Off-normal mode
The panel operates in off-normal mode any time an event is
introduced into the system. When this happens, the panel:
