Chapter 2: Jumpers and Connectors
Locations of the Jumpers and Connectors

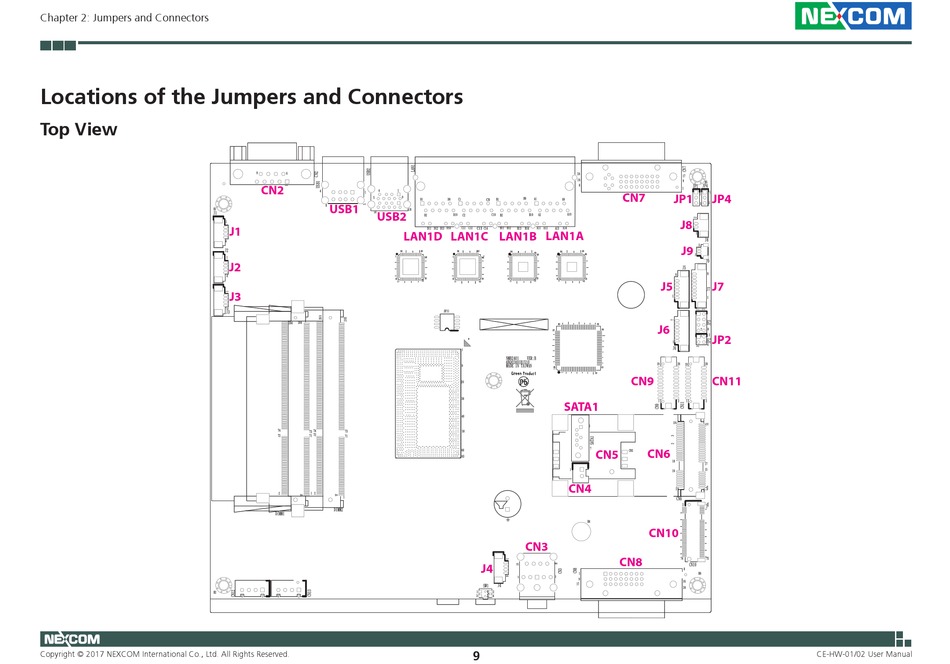

Top View
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
CN2
USB1
USB2
J1
LAN1D
J2
J3
CN7
LAN1A
LAN1C
LAN1B
SATA1
CN5
CN4
CN3
CN8
J4
9
JP1
JP4
J8
J9
J5
J7
J6
JP2
CN9
CN11
CN6
CN10
CE-HW-01/02 User Manual
