Chapter 2: Jumpers and Connectors

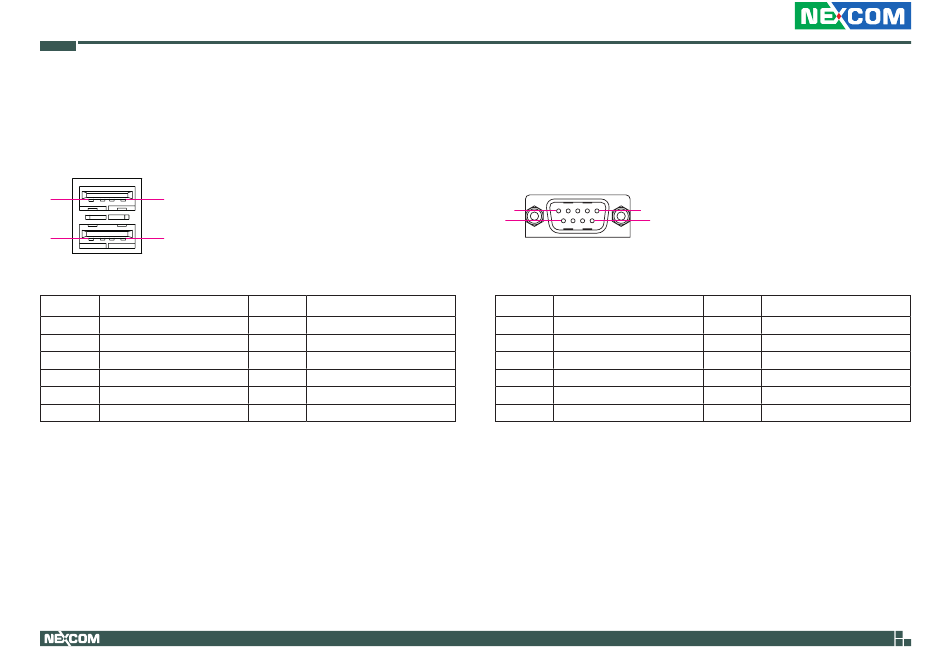

Dual USB 2.0 Port

Connector type: USB 2.0 ports, Type A
Connector location: USB1
1 4
5
8
Pin Definition
1 5V
3 USB2P2
5 5V
7 USB2P3
MH1 CHASSIS_GND
MH3 CHASSIS_GND
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 USB2N2
4 GND
6 USB2N3
8 GND
MH2 CHASSIS_GND
MH4 CHASSIS_GND

COM Port

Connector type: DB-9 port, 9-pin D-Sub
Connector location: CN2
1 5
6
Pin Definition
1 SP1_DCD
3 SP1_TXD
5 ISO_GND
7 SP1_RTS
9 SP1_RI
MH1 CHASSIS_GND
16
9
Pin Definition
2 SP1_RXD
4 SP1_DTR
6 SP1_DSR
8 SP1_CTS
MH2 CHASSIS_GND
