Chapter 2: Jumpers and Connectors

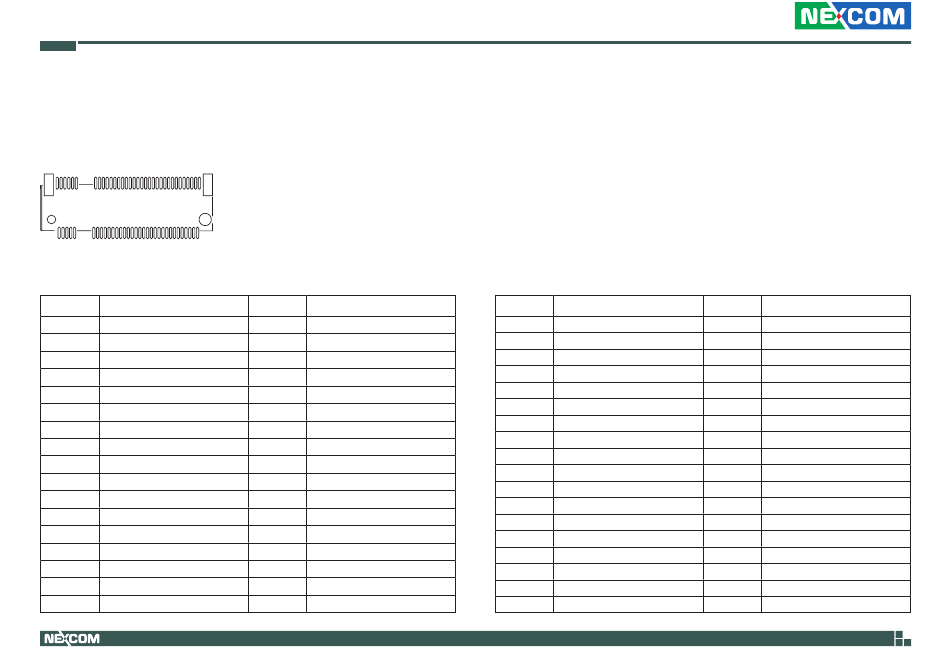

NGFF M.2 SATA Connector

Connector location: CN10
1 75
2 74
Pin Definition
1 PCIE_M2_CONFIG3
3 NC
5 NC
7 NC
9 NC
11 NC
21 PCIE_M2_CONFIG0
23 NC
25 NC
27 NC
29 NC
31 NC
33 NC
35 NC
37 NC
39 NC
41 SATA_RXP0
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 VCC3
4 VCC3
6 NC
8 NC
10 PCIE_M2_DAS_DSS#
20 NC
22 NC
24 NC
26 NC
28 NC
30 NC
32 NC
34 NC
36 NC
38 PCIE_M2_DEVSLP
40 NC
42 NC
Pin Definition
43 SATA_RXN0
45 NC
47 SATA_TXN0
49 SATA_TXP0
51 NC
53 NC
55 NC
57 NC
59 NC
61 NC
63 NC
65 NC
67 NC
69 PCIE_M2_CONFIG1
71 NC
73 NC
75 PCIE_M2_CONFIG2
MH2 GND
27
Pin Definition
44 NC
46 NC
48 NC
50 NC
52 NC
54 NC
56 PCIE_M2_Z01
58 PCIE_M2_Z02
60 NC
62 NC
64 NC
66 NC
68 NC
70 VCC3
72 VCC3
74 VCC3
MH1 GND
MH3 NC
