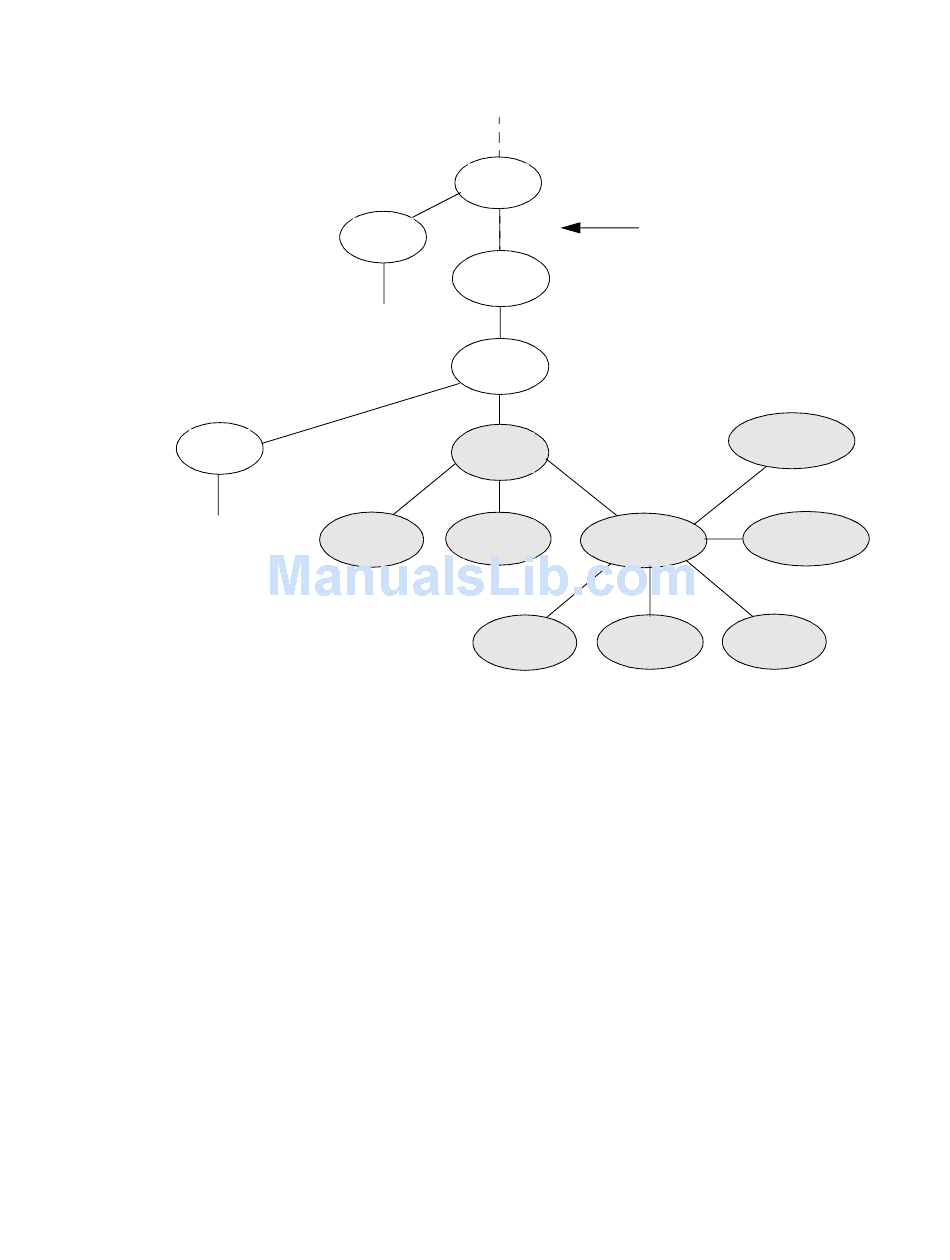

Figure B-2 ZeitNet Private MIBs

In Figure B-2, the ZeitNet proprietary group is identified by 1.3.6.1.4.1.1295; its subgroup, called znProducts, is
identified by 1; and the first variable is znManagedObjects with a value of 2. Therefore, the object znManagedObjects
has an object identifier of 1.3.6.1.4.1.1295.2.
B.1.2

Relation Between Object Identifier and the Represented Value

In Figure B-3, the znLec object (representing Lan Emulation Client information) has an Object Identifier of
1.3.6.1.4.1.1295.2.3333.9.1.1. The znLecDDCount object representing the number of Data direct connections
maintained by one LEC (Lan Emulation Client) has a object identifier of 1.3.6.1.4.1.1295.2.3333.9.1.1.1.1. Querying
for the value represented by this object identifier (using the SNMP protocol), returns the actual number of data direct
connections for the identified LEC.
MIB
1
atomMIB
37
Private
4
enterprise
1
ZeitNet
1295
znCommonMIB znProducts
199 1
znCommonObjs
MIB, SMI, MIB Files and Internet MIB Hierarchy
Label from the root to
this point is 1.3.6.1
znManagedObjects
2
znTrapObjs
301
300
