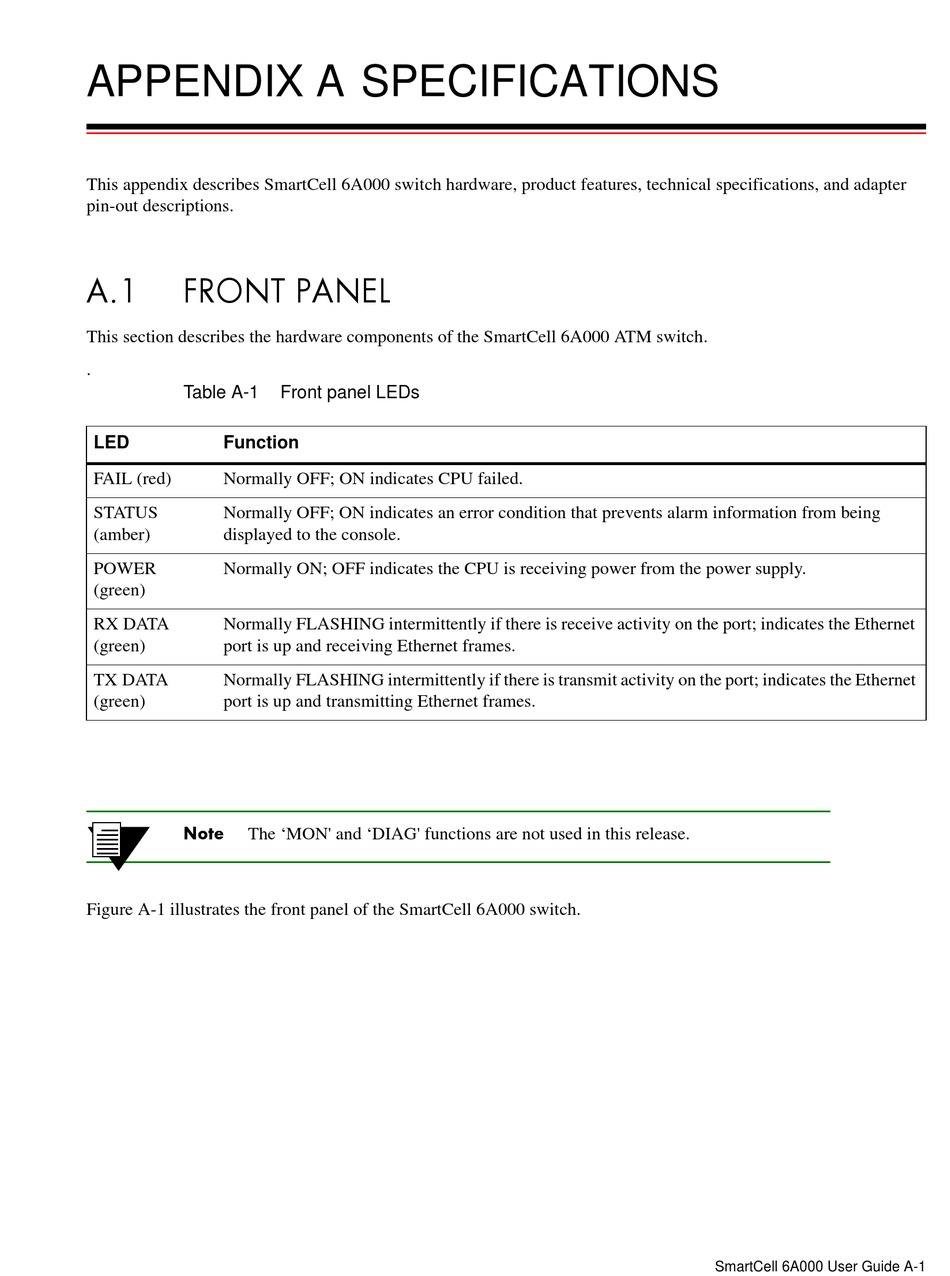

APPENDIX A SPECIFICATIONS
This appendix describes SmartCell 6A000 switch hardware, product features, technical specifications, and adapter
pin-out descriptions.
"•s
)832:˜6"2'/
This section describes the hardware components of the SmartCell 6A000 ATM switch.
.
Table A-1
LED
Function
FAIL (red)
Normally OFF; ON indicates CPU failed.
STATUS
Normally OFF; ON indicates an error condition that prevents alarm information from being
(amber)
displayed to the console.
POWER
Normally ON; OFF indicates the CPU is receiving power from the power supply.
(green)
RX DATA
Normally FLASHING intermittently if there is receive activity on the port; indicates the Ethernet
(green)
port is up and receiving Ethernet frames.
TX DATA
Normally FLASHING intermittently if there is transmit activity on the port; indicates the Ethernet
(green)
port is up and transmitting Ethernet frames.
2p›F
The 'MON' and 'DIAG' functions are not used in this release.
Figure A-1 illustrates the front panel of the SmartCell 6A000 switch.
Front panel LEDs
SmartCell 6A000 User Guide A-1
