Switch Installation and Setup

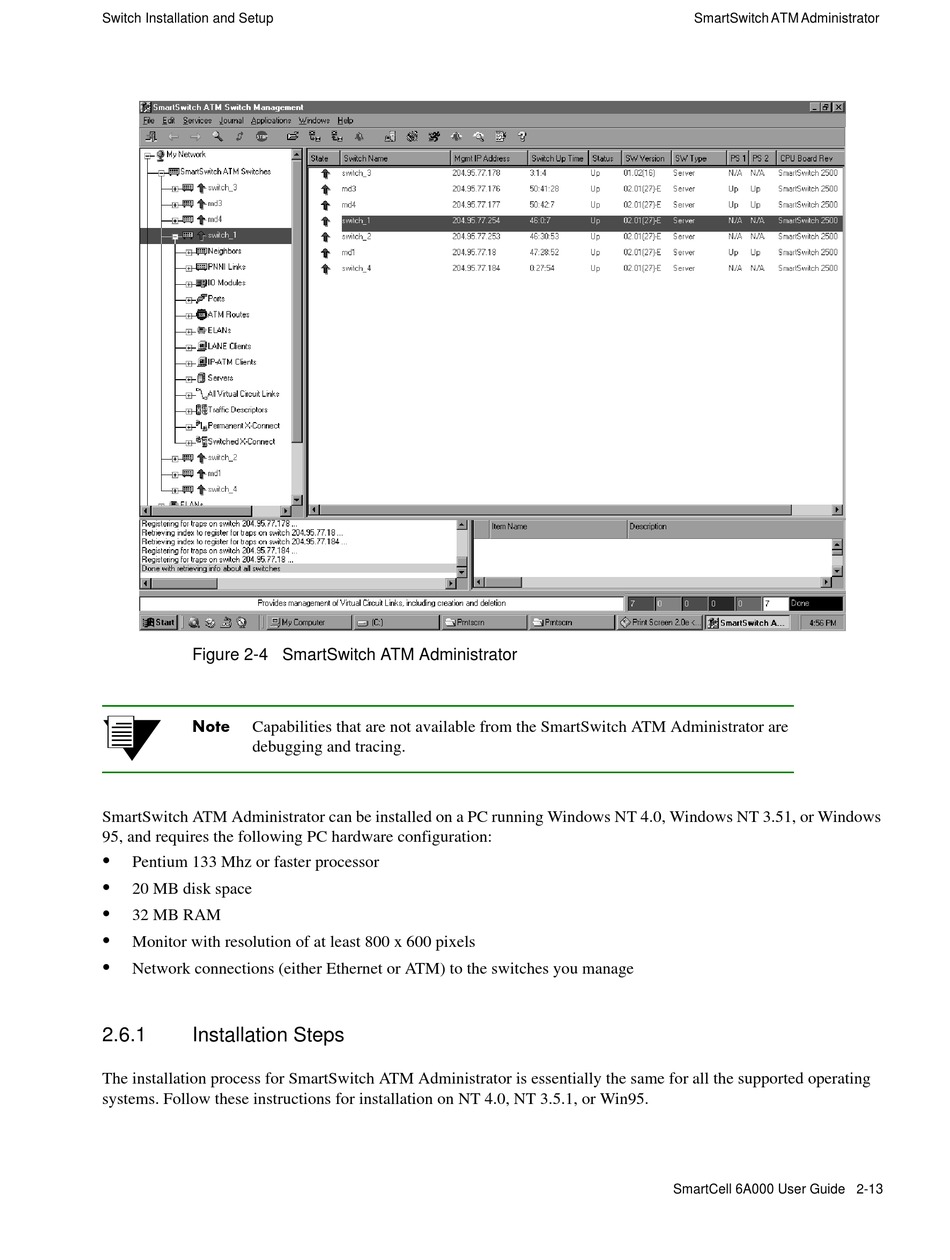

Figure 2-4 SmartSwitch ATM Administrator

2p›F
Capabilities that are not available from the SmartSwitch ATM Administrator are
debugging and tracing.
SmartSwitch ATM Administrator can be installed on a PC running Windows NT 4.0, Windows NT 3.51, or Windows
95, and requires the following PC hardware configuration:
U
Pentium 133 Mhz or faster processor
U
20 MB disk space
U
32 MB RAM
U
Monitor with resolution of at least 800 x 600 pixels
U
Network connections (either Ethernet or ATM) to the switches you manage
2.6.1

Installation Steps

The installation process for SmartSwitch ATM Administrator is essentially the same for all the supported operating
systems. Follow these instructions for installation on NT 4.0, NT 3.5.1, or Win95.
SmartSwitch ATM Administrator
SmartCell 6A000 User Guide 2-13
