Figure 2-3 6A000 Console And Network Connections - Cabletron Systems SmartCell 6A000 User Manual

Switch Installation and Setup
Terminal

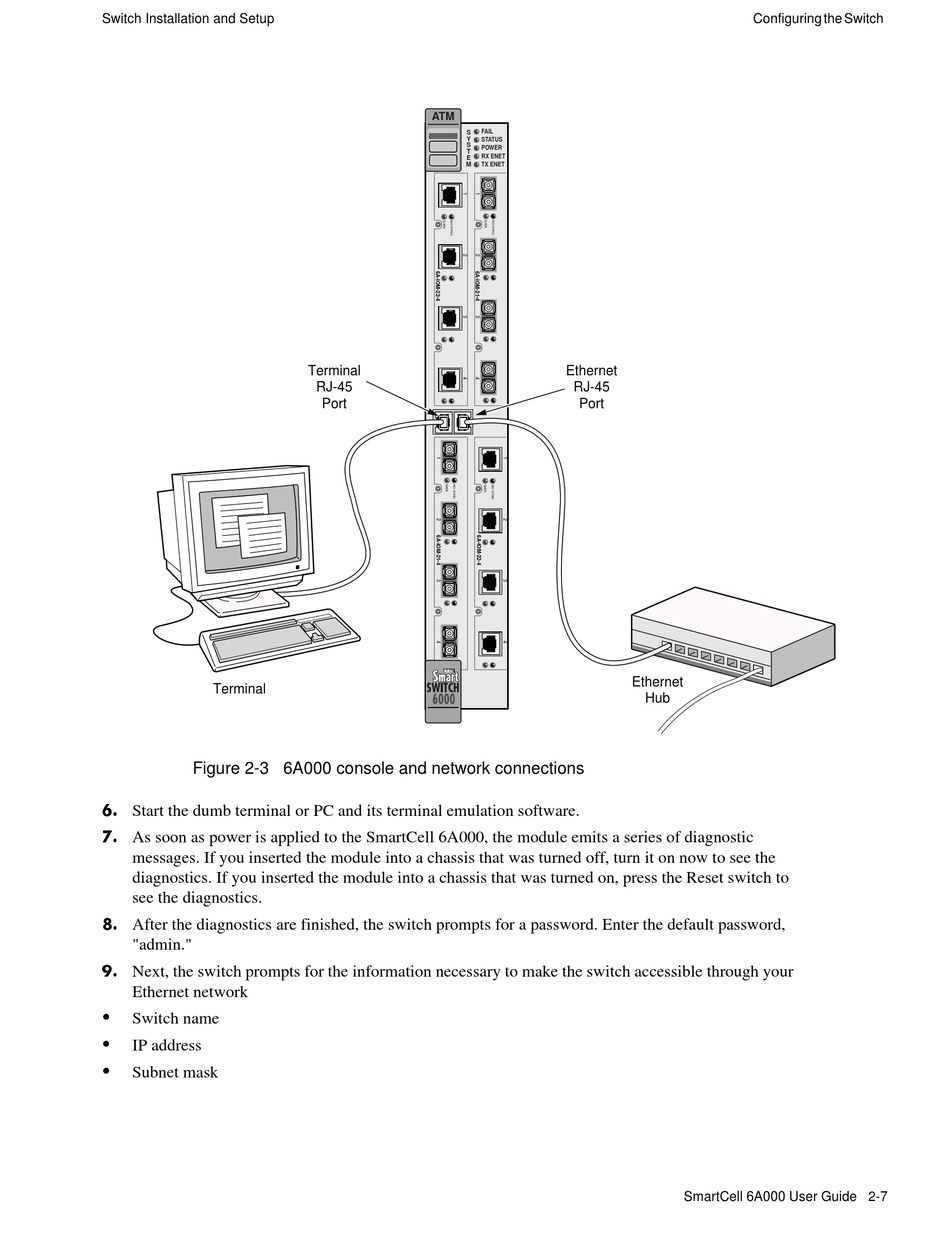

Figure 2-3 6A000 console and network connections

–•
Start the dumb terminal or PC and its terminal emulation software.
••
As soon as power is applied to the SmartCell 6A000, the module emits a series of diagnostic
messages. If you inserted the module into a chassis that was turned off, turn it on now to see the
diagnostics. If you inserted the module into a chassis that was turned on, press the Reset switch to
see the diagnostics.
G•
After the diagnostics are finished, the switch prompts for a password. Enter the default password,
"admin."
n•
Next, the switch prompts for the information necessary to make the switch accessible through your
Ethernet network
U
Switch name
U
IP address
U
Subnet mask
ATM
FAIL
S
Y
STATUS
S
POWER
T
RX ENET
E
M TX ENET
Terminal
RJ-45
Port
Ethernet
RJ-45
Port
Ethernet
Hub
