Part 9: Power Supply

The AC7Z035 FPGA core board is powered by DC5V and is powered by a

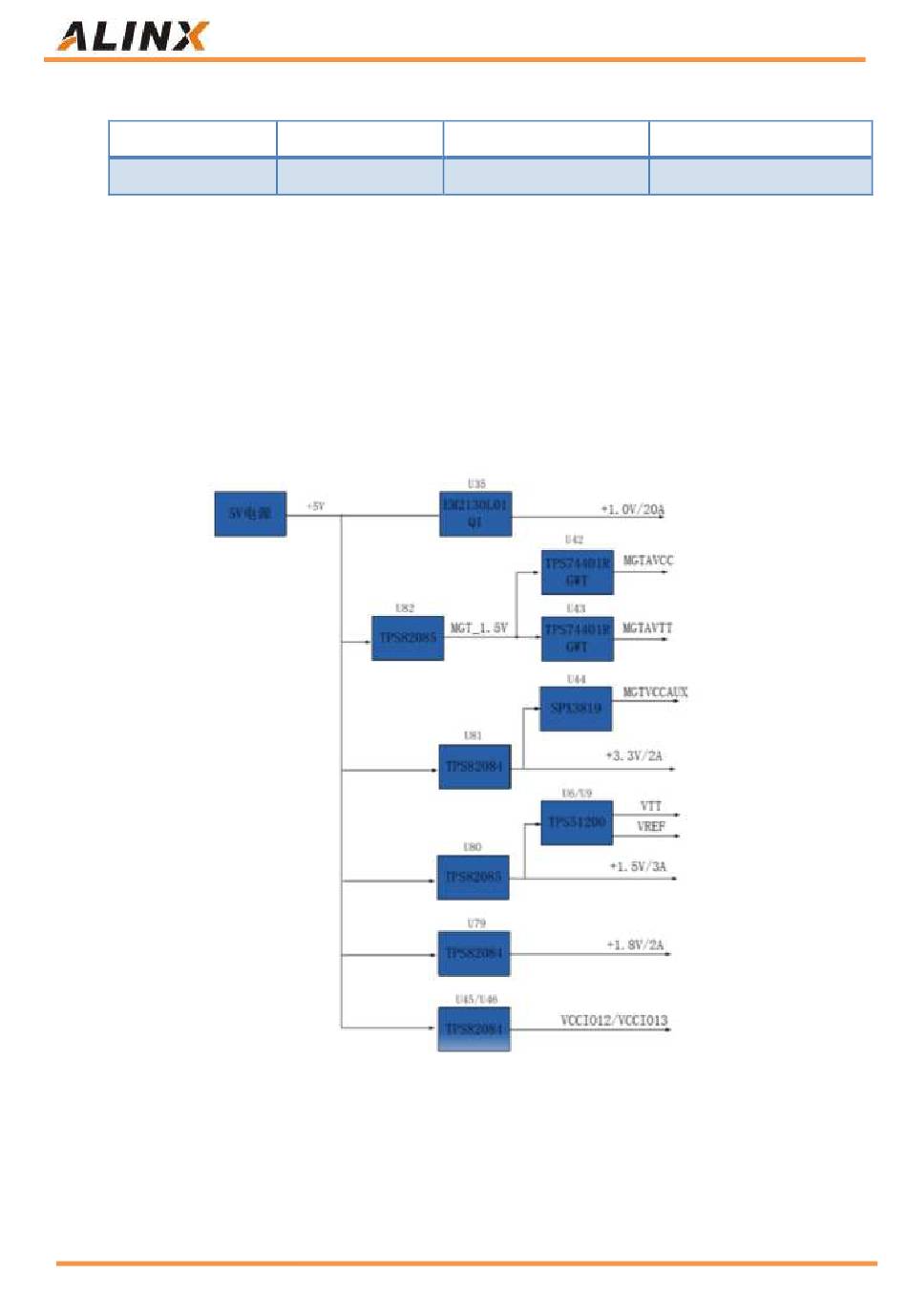

connection carrier board. The power supply design diagram on the FPGA
board is shown in Figure 9-1
Figure 9-1：Power interface section in the schematic
+5V generates +1.0V ZYNQ core power through DCDC power chip
EM2130L01QI. EM2130 output current is up to 20A, which is enough to meet
the current demand of ZYNQ core voltage. The +5V power supply then uses
