Figure 6-5: Programmable Clock Source on the AX7Z035 FPGA Core Board
GTX clock source ZYNQ pin assignment:：
BANK111_CLK1_P
BANK111_CLK1_N

Part 7: LED Light

There are 3 red LED lights on the AC7Z035 FPGA core board, one of
which is the power indicator light (PWR), one is the configuration LED light
(DONE), and one is the user LED light. When the core board is powered, the
power indicator will illuminate; when the FPGA is configured, the configuration
LED will illuminate. The user LED light is connected to the IO of the PL. The
user can control the light on and off by the program. When the IO voltage
connected to the user LED is high, the user LED is off. When the connection IO
voltage is low, the user LED will be lit. The schematic diagram of the LED light
20 / 33
ZYNQ FPGA Development Board AC7Z035 User Manual

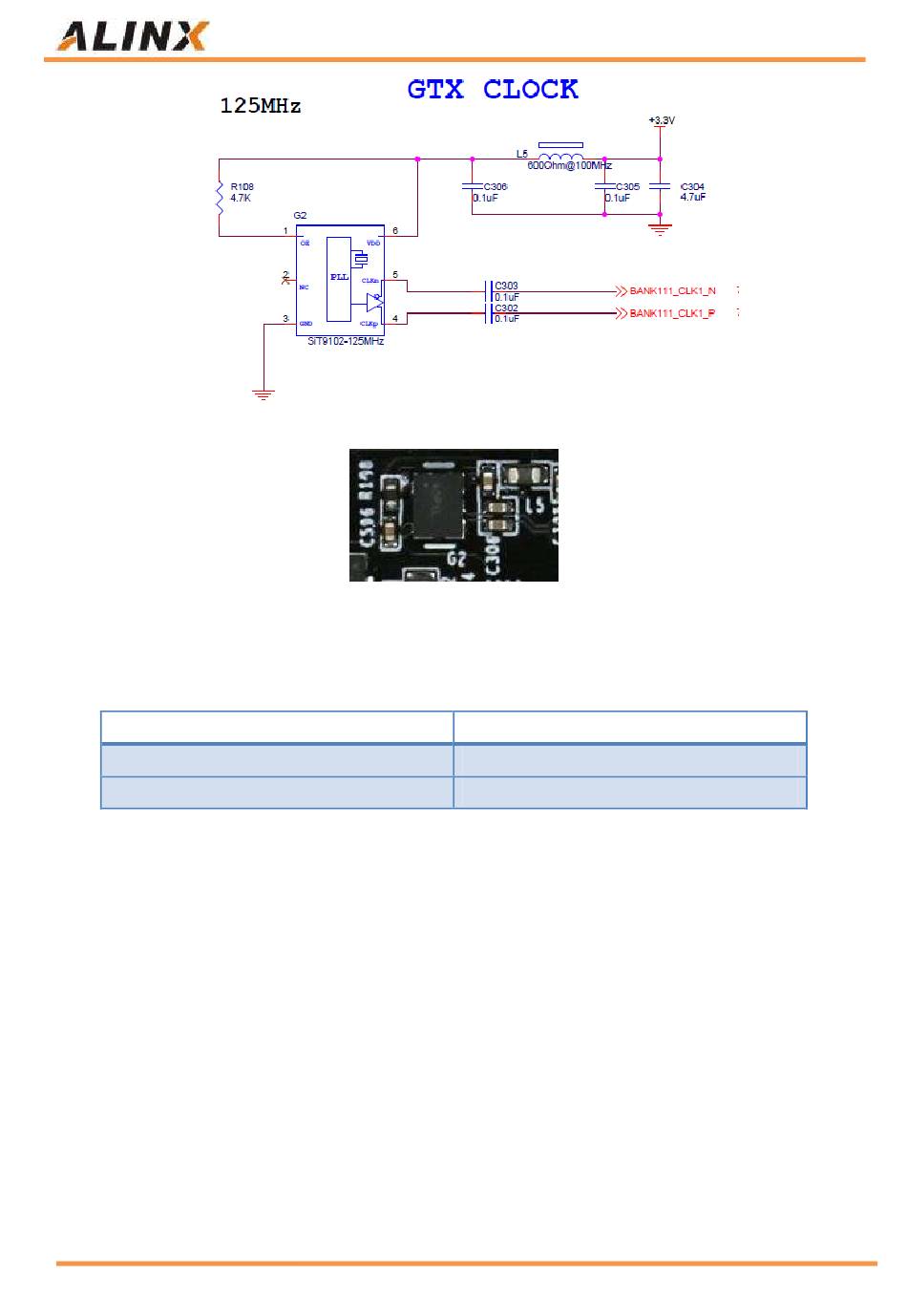

Figure 6-4: GTX Clock Source
Signal Name
Amazon Store: https://www.amazon.com/alinx
ZYNQ Pin
AA6
AA5
