FLASH chips to form an 8-bit bandwidth data bus, the flash model is
W25Q256FVEI, which uses the 3.3V CMOS voltage standard. Due to the
non-volatile nature of QSPI FLASH, it can be used as a boot device for the
system to store the boot image of the system. These images mainly include
FPGA bit files, ARM application code, and other user data files. The specific
models and related parameters of QSPI FLASH are shown in Table 4-1.
Position
U13,U14
QSPI FLASH is connected to the GPIO port of the BANK500 in the PS
section of the ZYNQ chip. In the system design, the GPIO port functions of

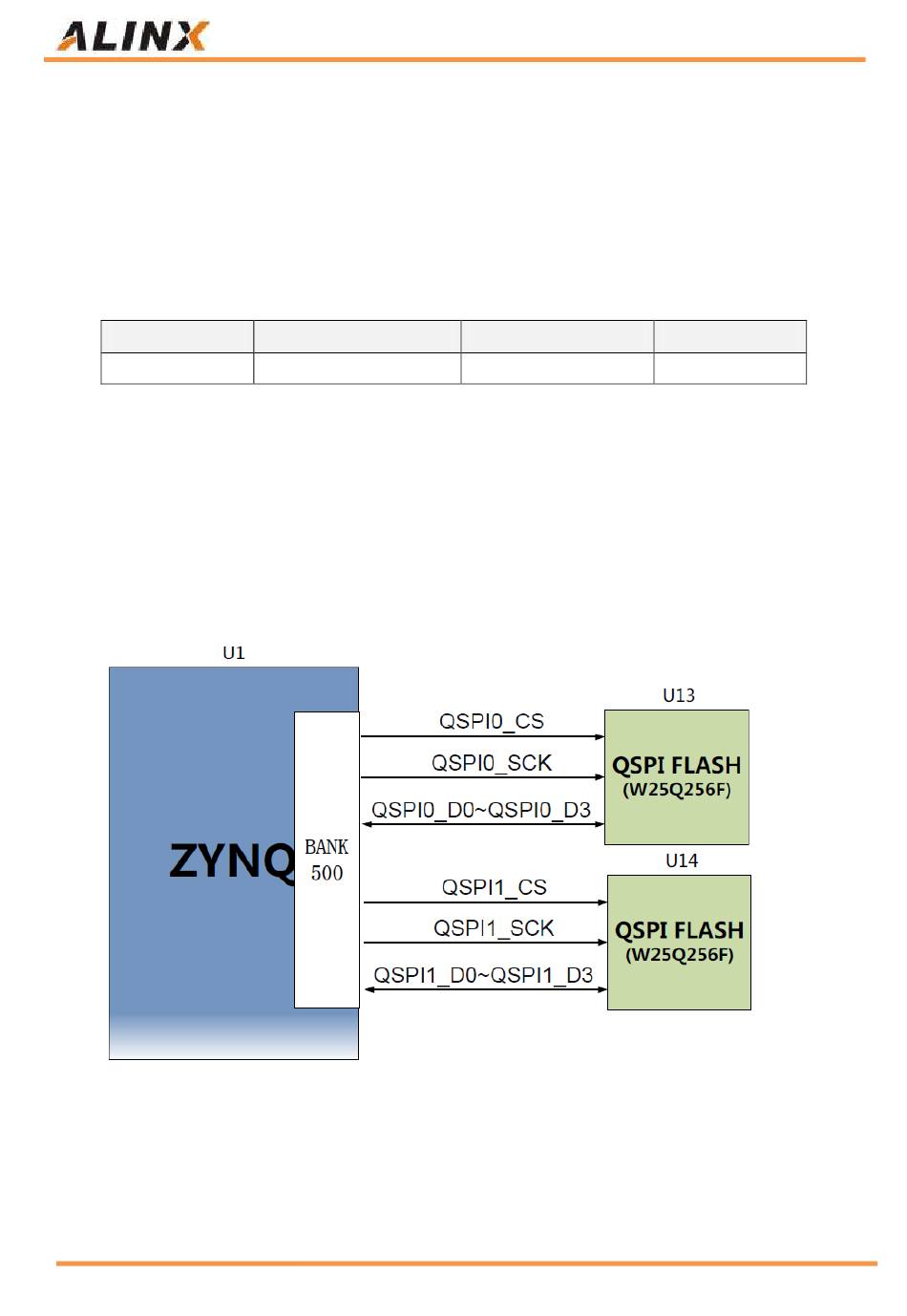

these PS ports need to be configured as the QSPI FLASH interface. Figure 4-1
shows the QSPI Flash in the schematic.
Configure chip pin assignments:
15 / 33
ZYNQ FPGA Development Board AC7Z035 User Manual
Model
W25Q256FVEI
Table 4-1: QSPI FLASH Specification
Figure 4-1: QSPI Flash in the schematic
Amazon Store: https://www.amazon.com/alinx
Capacity
256M bit
Factory
Winbond
