Specifications

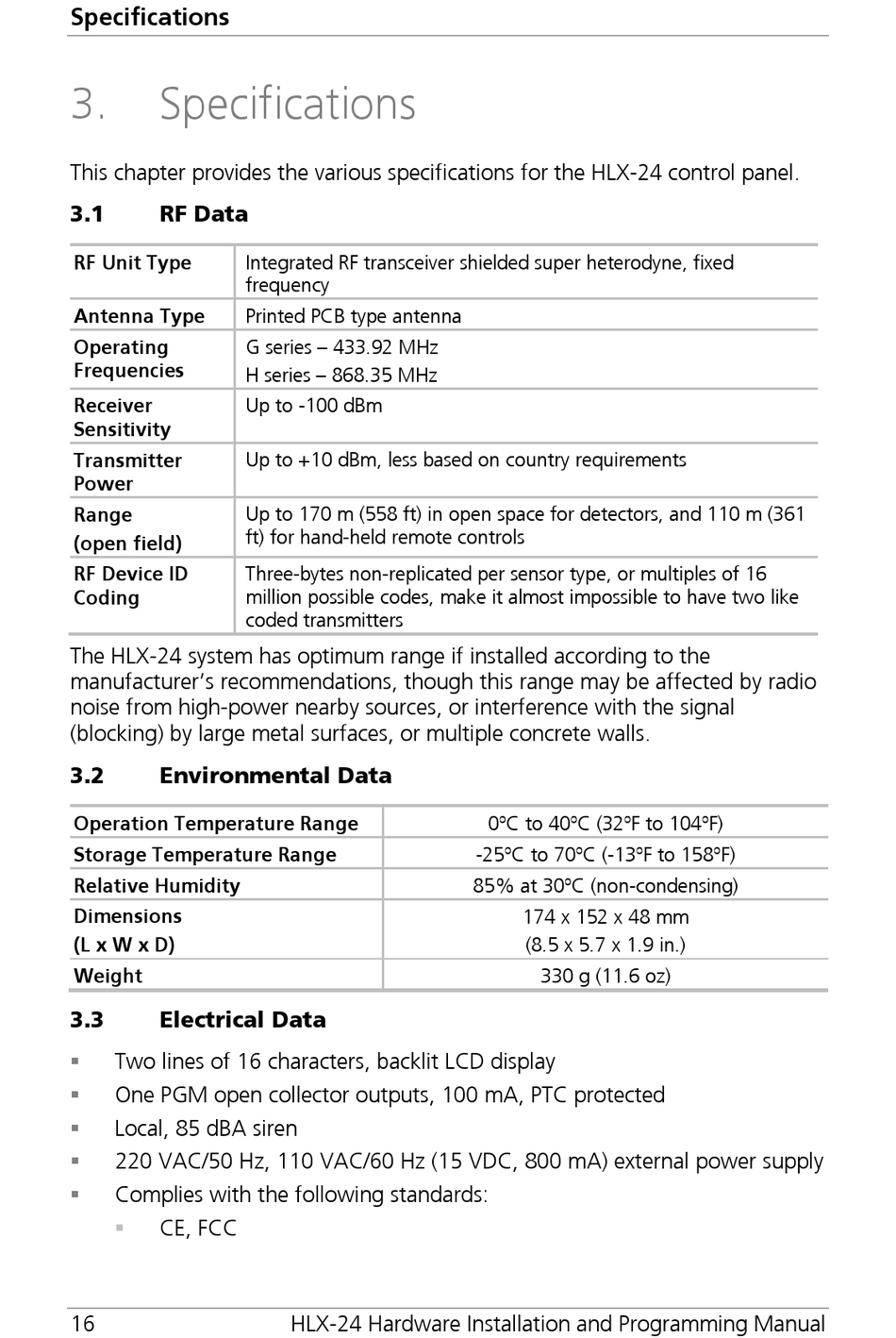

3. Specifications
This chapter provides the various specifications for the HLX-24 control panel.
3.1

RF Data

RF Unit Type
Antenna Type
Operating
Frequencies
Receiver
Sensitivity
Transmitter
Power
Range
(open field)
RF Device ID
Coding
The HLX-24 system has optimum range if installed according to the
manufacturer's recommendations, though this range may be affected by radio
noise from high-power nearby sources, or interference with the signal
(blocking) by large metal surfaces, or multiple concrete walls.
3.2

Environmental Data

Operation Temperature Range
Storage Temperature Range
Relative Humidity
Dimensions
(L x W x D)
Weight
3.3

Electrical Data

 Two lines of 16 characters, backlit LCD display
One PGM open collector outputs, 100 mA, PTC protected

 Local, 85 dBA siren
 220 VAC/50 Hz, 110 VAC/60 Hz (15 VDC, 800 mA) external power supply
Complies with the following standards:

 CE, FCC
16
Integrated RF transceiver shielded super heterodyne, fixed
frequency
Printed PCB type antenna
G series – 433.92 MHz
H series – 868.35 MHz
Up to -100 dBm
Up to +10 dBm, less based on country requirements
Up to 170 m (558 ft) in open space for detectors, and 110 m (361
ft) for hand-held remote controls
Three-bytes non-replicated per sensor type, or multiples of 16
million possible codes, make it almost impossible to have two like
coded transmitters
HLX-24 Hardware Installation and Programming Manual
0ºC to 40ºC (32ºF to 104ºF)
-25ºC to 70ºC (-13ºF to 158ºF)
85% at 30ºC (non-condensing)
174 x 152 x 48 mm
(8.5 x 5.7 x 1.9 in.)
330 g (11.6 oz)
