Wiring the System
Figure 3 shows the various HLX-24 connections, which are described in Table
8.
Input
PGM
VIN
LINE (RJ-11)
PHONE (RJ-11)
MD-62 Connection Socket Connection socket for 10-pin plug connecting panel to
Battery Compartment
Wall Tamper Switch
Ethernet (RJ-45)*
* HLX-24IP models only
HLX-24 Hardware Installation and Programming Manual

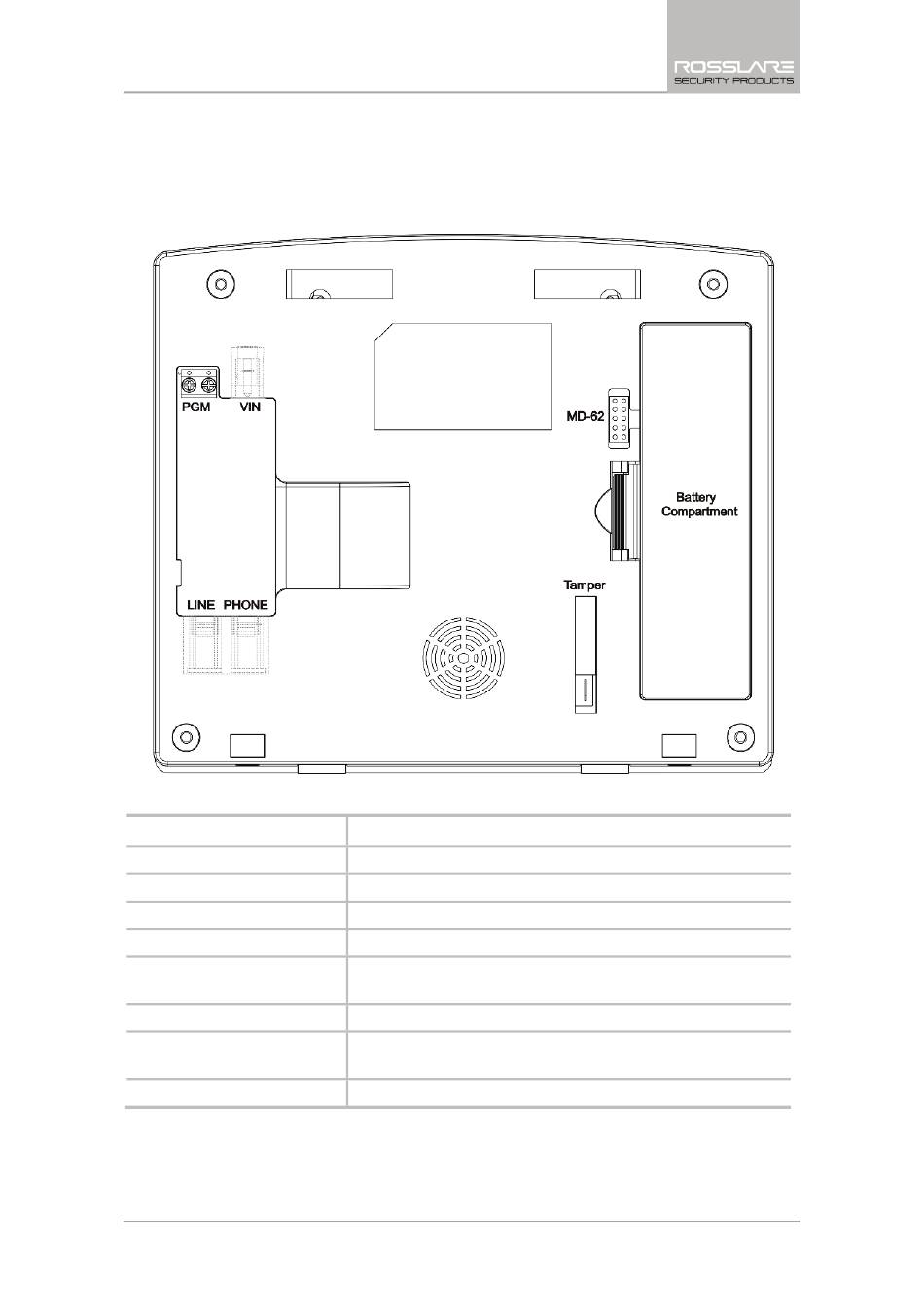

Figure 3: Panel Wiring
Table 8: HLX-24 Connections
Description
Terminal blocks for PGM activation
Input voltage from AC/DC adaptor VIN = 13.8–15
Telephone line in (from the wall to the system)
Telephone line out (from system to telephone device)
PC with MD-62
4 AA rechargeable batteries
Tamper switch is pressed when the panel is mounted on
the wall
Connection to the HomeLogiX™APP server
