When drilling the hole for the wires, it is recommended to drill the hole in the
marked out areas (Figure 5).

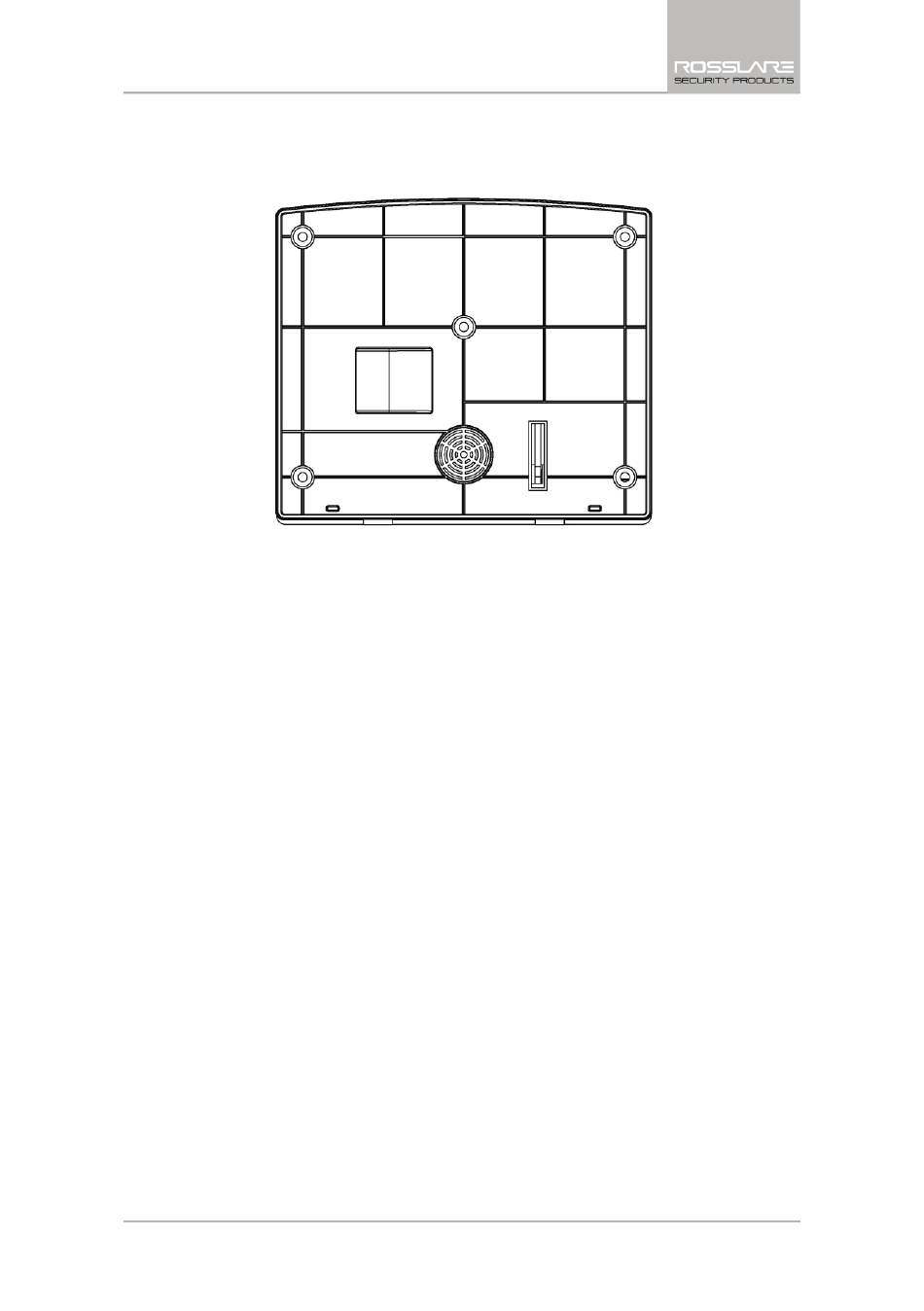

Figure 5: Back Plate Mounting Holes
4.7.2
Required Space
The required space on the wall for the panel is (L) x (H). The hole size for the
wires is 2 x 5 cm (0.8 x 2 in.). This is to be drilled according to the openings on
the back plate.
The optimum viewing angle of the LCD is achieved when the panel is mounted
above the eye level of the user.
HLX-24 Hardware Installation and Programming Manual
