HLX-24 Quick Reference

2. HLX-24 Quick Reference
This chapter describes the control panel and the keypad, as well as the chimes
emitted when the buttons on the keypad are pressed.
2.1

The Panel

Figure 1 presents the components of the wireless panel.
Display
Power Indicator
Status Indicator
Keypad Door
HLX-24 Hardware Installation and Programming Manual

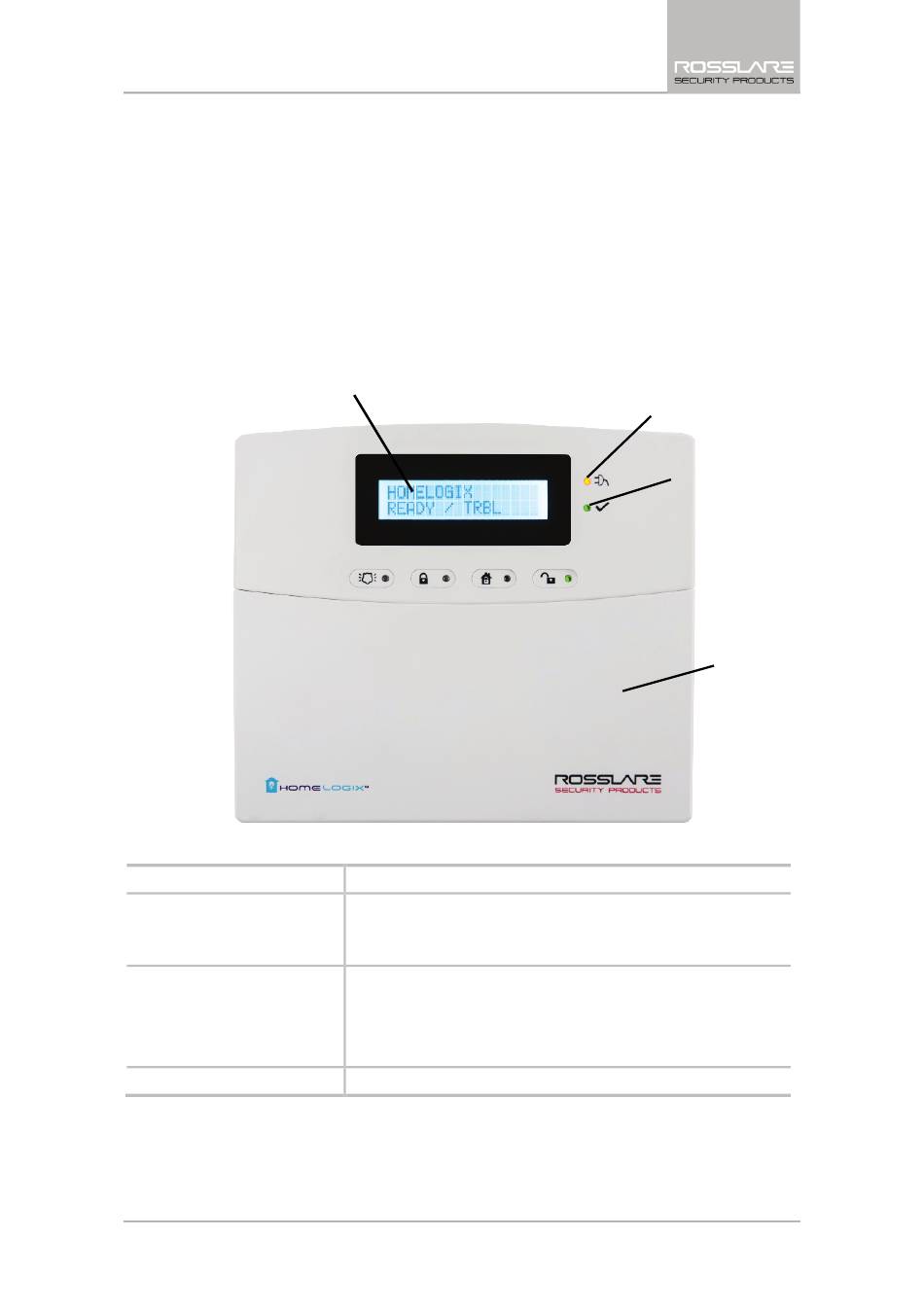

Figure 1: HLX-24 Panel

Display

Table 1: Control Panel Functions

LCD display
Power LED: green
FLASHING when there is an AC power failure and during
Walk Test
Status LED: green On: system armed
Off: system disarmed
Flash: entry and exit delay (according to beep rate)
FLASHING without beeps during Walk Test
Open to access the keypad buttons
Power Indicator
Status Indicator
Keypad Door
