Installation
4.5
Connecting the AC Transformer
Complete all the wiring before plugging the transformer in to the AC outlet.
To connect the AC transformer:
1.
Attach the transformer and power up the system.
The display shows the HLX-24 logo and the current version.
2.
Plug in the transformer.
The power LED on the control panel should light up.
4.6
Connecting to a PC
The control panel can be equipped with an optional MD-62 adaptor for serial
data interchange with a computer.
4.7
Mounting the Back Plate
4.7.1
General
It is important to mount the back plate first before connecting any of the wiring
to the unit.
To complete the installation without exposed wires, all the wiring should be
done through the wall. The wiring to the back plate can be done without
having exposed wires by installing the panel on a standard electrical box or
making a hole in the wall for the wiring (Figure 4).
20

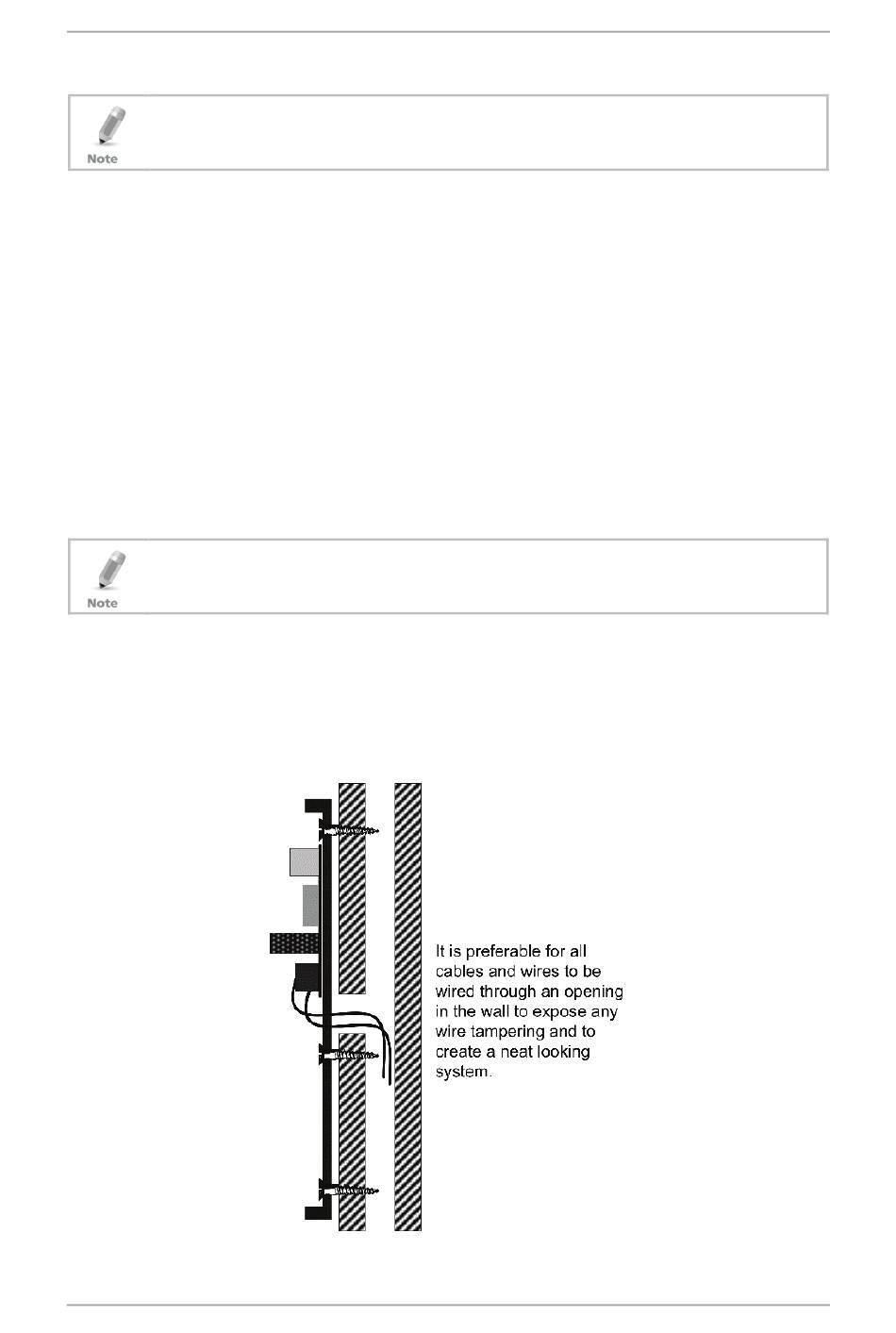

Figure 4: Back Plate Wiring
HLX-24 Hardware Installation and Programming Manual
