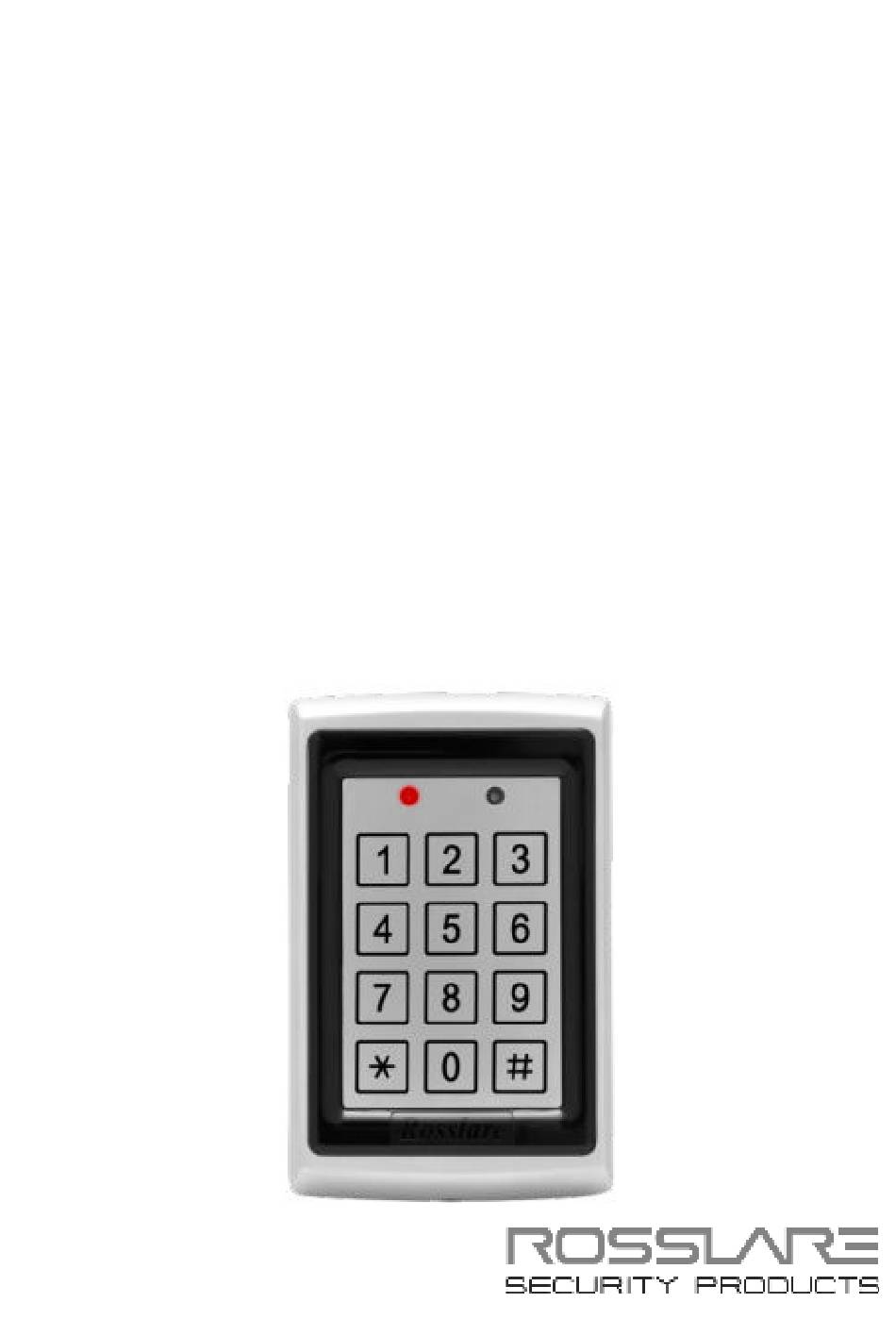

- Page 1 AYC-Q65 Convertible Anti-Vandal Piezoelectric 3x4 Proximity & PIN Reader/Controller Installation and Programming Manual...
- Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.
-
Page 3: Table Of Contents
Technical Specifications ..........12 Installation ..............14 Mounting Instructions ............14 Wiring Instructions ..............15 Reader Functionality ..........19 Transmit Mode ..............19 Programming the AYC-Q65 ........... 19 4.2.1 Entering Programming Mode ............20 4.2.2 Exiting Programming Mode ............21 4.2.3 Selecting Keypad Transmission Format ......... - Page 4 Door Alarms ................. 36 Internal Case and Back Tamper ..........36 Lockout Feature (Keypad/Card Tamper) ........36 REX Function ................ 36 Secure Application Appurtenances ......... 37 Programming the AYC-Q65 ........... 37 5.9.1 Entering Programming Mode ............38 5.9.2 Exiting Programming Mode ............39 5.9.3...
- Page 5 Relay Code Assignment using Search Method ......57 5.9.17 PIN Code Length/Factory Default Settings ........58 5.9.18 Replacing a Lost Programming Code ..........59 5.9.19 Exiting Secure Mode if Normal/Secure Code was Lost....59 Declaration of Conformity........60 Limited Warranty ............61 AYC-Q65 Installation and Programming Manual...
- Page 6 Figure 2: Controller Application Wiring Diagram ..........16 Figure 3: Auxiliary Output Connection with Internal Power ......17 Figure 4: Auxiliary Output Connection with External Power......17 Figure 5: Reader Application Wiring Diagram ..........18 AYC-Q65 Installation and Programming Manual...
- Page 7 Table 1: Wiring Colors ..................15 Table 2: Reader Programming Menus .............. 20 Table 3: Keypad Transmission Format Option Number ........22 Table 4: Controller Programming Menu ............38 Table 5: Quick Reference Guide for Auxiliary Mode Setting ......45 AYC-Q65 Installation and Programming Manual...
- Page 8 ROSSLARE exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document. ...
-
Page 9: Introduction

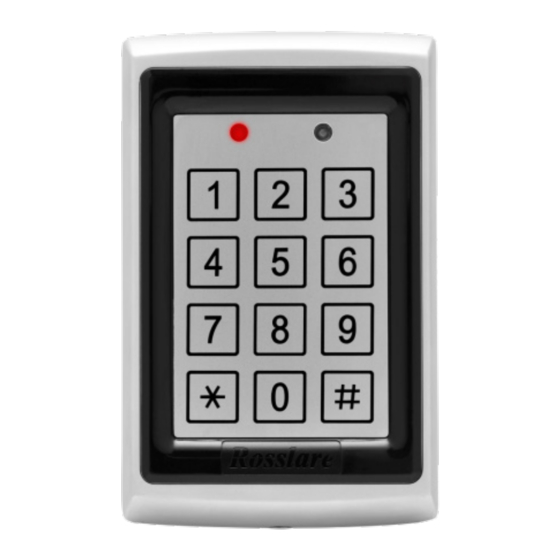

The AYC-Q65 is a vandal-resistant, waterproof, standalone, convertible integrated reader and controller with a piezoelectric keypad. The AYC-Q65 automatically determines whether to function as a reader or as a controller. If the unit is connected to a standard access control unit, then it functions as a reader. If the unit is connected to Rosslare's secure application appurtenances such as the PS-A25T, PS-C25T or PS-C25TU, it functions as a secured controller. -
Page 10: Reader
Normal mode Bypass mode Secure mode REX signal from Rosslare’s secure application appurtenance Chime bell and siren features are available with secure application appurtenance Programmable Lock Strike Release, Siren, and Alarm Delay timers ... -
Page 11: Box Content
(power to lock) or fail secure (power to open) functions. Request to Exit (REX) button – Normally open type, switch is closed when pressed. Door monitor switch Rosslare accessories can be found on www.rosslaresecurity.com. AYC-Q65 Installation and Programming Manual... -
Page 12: Technical Specifications
Keypad Transmit Format (Reader) Programmable PIN code formats Two tri-colored LEDs LED Indicators Data1/C1, Data0/C2 – open collector, 5 Communication V termination Measured using a Rosslare proximity card or equivalent. Range also depends on electrical environment and proximity to metal AYC-Q65 Installation and Programming Manual... - Page 13 Weather-resistant, meets IP65, epoxy Outdoor Usage potted, suitable for outdoor use Mechanical 120 x 76 x 21 mm (4.7 x 3.0 x 0.8 in.) Size (Height x Width x Depth) Weight 480 g (1.1 lb) AYC-Q65 Installation and Programming Manual...
-
Page 14: Installation
2. When the unit is used a reader, route the interface cable to the controller; when the unit is used as a secured controller, route the interface cable to Rosslare’s secure application appurtenance (see Section 3.2). A linear type power supply is recommended when using the unit as a controller. -
Page 15: Wiring Instructions
4. If the tamper output is used, connect the purple wire to the correct input on the controller when used as a reader, or to a zone input of an intruder alarm system when used as a controller. 5. Trim and cover all unused conductors. AYC-Q65 Installation and Programming Manual... -
Page 16: Figure 2: Controller Application Wiring Diagram
This configuration is best for shielding the reader cable from external interference Figure 2 shows the wiring for the Controller Application using a Dual Relay Secure Application Appurtenance. Figure 2: Controller Application Wiring Diagram AYC-Q65 Installation and Programming Manual... -
Page 17: Figure 3: Auxiliary Output Connection With Internal Power
Figure 3 shows the auxiliary output connection using the internal power. Figure 3: Auxiliary Output Connection with Internal Power Figure 4 shows the auxiliary output connection using external power. Figure 4: Auxiliary Output Connection with External Power AYC-Q65 Installation and Programming Manual... -
Page 18: Figure 5: Reader Application Wiring Diagram
Installation Figure 5 shows how to wire a reader to the access control panel. Figure 5: Reader Application Wiring Diagram AYC-Q65 Installation and Programming Manual... -
Page 19: Reader Functionality
This chapter explains how the AYC-Q65 functions as a reader. Transmit Mode When the AYC-Q65 is in Transmit mode, it is ready to receive data from a presented proximity card or from an entered PIN code. When the reader is in Transmit mode,... -
Page 20: Entering Programming Mode
Changing the Facility Code Return to Factory Default Settings 4.2.1 Entering Programming Mode To reach the Programming Menu System, the AYC-Q65 must first be placed into Programming mode. To enter Programming mode: 1. Press # 4 times. The Transmit LED turns off and... -
Page 21: Exiting Programming Mode
Programming mode and returns to Transmit mode. 4.2.3 Selecting Keypad Transmission Format The AYC-Q65 has nine different keypad transmission formats. See Section 4.2.3.1 for more information on keypad transmission formats. To select the appropriate key pad transmission format: 1. -
Page 22: Table 3: Keypad Transmission Format Option Number
Table 3: Keypad Transmission Format Option Number Keypad Transmission Format Option Number Single Key, Wiegand 6-Bit (Rosslare Format) Single Key, Wiegand 6-Bit with Nibble + Parity Bits Single Key, Wiegand 8-Bit, Nibbles Complemented 4 Keys Binary + Facility Code, Wiegand 26-Bit... - Page 23 Reader Functionality Option 1: Single Key, Wiegand 6-Bit (Rosslare Format) Each key press immediately sends 4 bits with 2 parity bits added – even parity for the first 3 bits and odd parity for the last 3 bits. 0 = 1 1010 0 ="A" in Hexadecimal...
- Page 24 For keypad PIN codes that are 5 digits in length, on the fifth key press of the 5-digit PIN code, the data is sent across the Wiegand Data lines as binary data in the same format as a 26-Bit Card. AYC-Q65 Installation and Programming Manual...
- Page 25 OP = Odd parity for last 12 bits A = The first key entered D = Fourth key entered B = Second key entered E = Fifth key entered C = Third key entered F = Sixth key entered AYC-Q65 Installation and Programming Manual...
- Page 26 Q65 keypad while still keeping the proximity card readers Wiegand 26-Bit or Clock & Data formats active. An optional interface board must be used between the AYC-Q65 and the host system. Each key press is immediately sent on DATA0 as an ASCII character at a baud rate of 9600 bits per second.
-
Page 27: Selecting Proximity Card Transmission Format
* = 1010 ="A" in Hexadecimal 5 = 0101 # =1011 ="B" in Hexadecimal 4.2.4 Selecting Proximity Card Transmission Format The AYC-Q65 has three different proximity card formats to select from. To select the Prox imity Card Transmission format: 1. Enter Programming mode. Door/Program... - Page 28 Keypad Transmission Format and sends the keypad data as described below. After a card is presented to the AYC-Q65, the program LED starts to flash in green and indicates that unit is waiting for the PIN code. If the entry of 1- to 5-digit keypad PIN code is disturbed and a number key...
-
Page 29: Changing The Programming Code
2. Press 3 to enter Menu 3. The Transmit LED turns red. Mode/Transmit Door/Program Green 3. Enter the new 4-digit code you wish to set as the Programming code. You hear three beeps. Mode/Transmit Door/Program The system returns to Transmit mode. AYC-Q65 Installation and Programming Manual... -
Page 30: Changing The Facility Code
1. Enter Programming mode. Door/Program Mode/Transmit Green 2. Press 0 to enter Menu 0. The Transmit and Program LEDs Mode/Transmit Door/Program flash red. AYC-Q65 Installation and Programming Manual... -
Page 31: Replacing A Lost Programming Code
Normal mode without erasing the memory of the controller. Replacing a Lost Programming Code In the event that the Programming code is forgotten, the AYC-Q65 can be reprogrammed in the field using the following instructions: 1. Remove power from the reader. -
Page 32: Controller Functionality
This chapter explains how the unit functions as a controller. Normal, Secure, and Master Users The AYC-Q65 accepts up to 500 users and provides entry via the use of PIN codes and/or Proximity cards. Each user is provided with two code memory slots, Memory Slot 1 (Primary code) and Memory Slot 2 (Secondary code). -
Page 33: Modes Of Operation
PIN code once to the controller. (The Master user is convenient but is less secure than a Secure user.) Modes of Operation The AYC-Q65 has three modes of operation: 5.2.1 Normal Mode The Mode LED is green. -
Page 34: Secure Mode
Mode/Transmit Door/Program 5.2.4.2 Changing from Secure Mode to Normal Mode The default factory setting for the Normal/Secure code is 3838. 1. Enter the Normal/Secure code. Mode/Transmit Door/Program The Mode LED flashes green. Mode/Transmit Door/Program Green AYC-Q65 Installation and Programming Manual... -
Page 35: Auxiliary Input And Output
2. Press # to confirm the mode change. Mode LED turns green. Mode/Transmit Door/Program Green Auxiliary Input and Output For optimum usability in different applications, the controller’s auxiliary input and output can be configured in ten different modes of operation. AYC-Q65 Installation and Programming Manual... -
Page 36: Door Alarms
R EX Function 2 0 B The REX button is connected to Rosslare’s secure application appurtenance. The REX button must be located inside the premises to be secured and is used to open the door without the use of a PIN code. -
Page 37: Secure Application Appurtenances
These settings are the called the default factory settings. Table 4 shows the names of all the AYC-Q65 controller menus. It also shows of all the default factory codes and settings for the units. AYC-Q65 Installation and Programming Manual... -
Page 38: Entering Programming Mode
Entering Programming Mode 1. Press # twice within 2 seconds. The Mode LED turns off and the Door/Program Mode/Transmit Door LED turns red. 2. Enter your Programming code. The Door LED turns green. Door/Program Mode/Transmit Green AYC-Q65 Installation and Programming Manual... -
Page 39: Exiting Programming Mode
The Mode LED turns red. Door/Program Mode/Transmit Green 3. Enter the new code you wish to set as Lock Strike Code 1. You hear three beeps. Mode/Transmit Door/Program The system returns to Normal Green mode. AYC-Q65 Installation and Programming Manual... -
Page 40: Changing Auxiliary Code
• Auxiliary code does not work in the Secure mode. • Wrong entries return the controller to Normal mode. • Code 0000 erases the Auxiliary code. • The factory default 4-digit Auxiliary code is 0852. AYC-Q65 Installation and Programming Manual... -
Page 41: Changing The Programming Code
2. Press 4 to enter Menu 4. The Mode LED flashes red. Mode/Transmit Door/Program Green 3. Enter the new code you wish to set as Normal/Secure code. You hear three beeps. Door/Program Mode/Transmit The system returns to Normal Green mode. AYC-Q65 Installation and Programming Manual... -
Page 42: Changing The Normal/Bypass Code And Door Chime Settings
Enter any code ending with 0 to enable the Bypass code and disable the door chime. d. Enter a code not ending with 0 to enable the Bypass code and enable the door chime. AYC-Q65 Installation and Programming Manual... -
Page 43: Setting Fail Safe/Secure Operation, Tamper Siren And Lock Strike Release Time
Lock Strike to be released. For example, 0312 means a Fail Secure Operation consisting of a 3-minute siren and a 12-second Lock Strike release time. You hear three beeps. Door/Program Mode/Transmit The system returns to Normal Green mode. AYC-Q65 Installation and Programming Manual... -
Page 44: Defining The Auxiliary Input And Output
The second digit defines the Auxiliary Input function while the third and fourth digits either may have no meaning or may define delay times for door monitor functions (Table 5). You hear three beeps. Door/Program Mode/Transmit The system returns to Normal Green mode. AYC-Q65 Installation and Programming Manual... -
Page 45: Table 5: Quick Reference Guide For Auxiliary Mode Setting
Door ajar N.C. 01 to 99 Ajar delay LED control – Green Valid code N.O. 01 to 99 Aux. relay release time LED control – Red Valid code N.O. 01 to 99 Aux. relay release time AYC-Q65 Installation and Programming Manual... -
Page 46: Detailed Reference Guide
Normal and Secure modes. By connecting a switch timer or alarm system output to the auxiliary input, the controller can be automatically switched from Normal mode (during office hours) to Secure mode (after office hours). AYC-Q65 Installation and Programming Manual... - Page 47 When a valid code is entered, the auxiliary relay shunts the door sensor for the duration of the shunt time, as defined by the auxiliary setting. If the door is left open longer than the shunt time, an alarm is triggered. AYC-Q65 Installation and Programming Manual...
- Page 48 The auxiliary relay is to be wired to the alarm system. If the door is opened, the controller waits for the door ajar delay time to elapse and AYC-Q65 Installation and Programming Manual...
- Page 49 This mode takes control of the Door indicator LED. The indicator LED is not be lit when: • A valid code is entered • While in secure mode, when waiting for a Secondary code AYC-Q65 Installation and Programming Manual...
-
Page 50: Setting The Lockout Feature
Set the number of wrong code attempts, which causes a Lockout between 0 and 9 attempts. Sets the Duration of the lockout, between 00 and 99; the value is multiplied by ten, resulting in 0 to 990 seconds. AYC-Q65 Installation and Programming Manual... -
Page 51: Enrolling Primary And Secondary Codes
The Code Search Method is mainly used when enrolling a user’s Secondary code and the user slot code is unknown. The Code Search method only works if a user’s Primary code is already enrolled but the Secondary code is not (see Section 5.9.12.2). AYC-Q65 Installation and Programming Manual... - Page 52 Orange ready to accept a Secondary code. If the selected slot already has a Primary and Secondary code, you Door/Program Mode/Transmit hear a long beep and the Green controller returns to Normal mode. AYC-Q65 Installation and Programming Manual...
- Page 53 Secondary code. 4. Enter the 4- to 8-digit PIN code of the Primary code belonging to the user to whom you want to add a Secondary code. 5. The Mode LED flashes red. Mode/Transmit Door/Program Orange AYC-Q65 Installation and Programming Manual...
-
Page 54: Deleting Primary And Secondary Codes
The Mode LED flashes red indicating the controller is waiting for the Programming code to Mode/Transmit Door/Program confirm the deletion. Orange If the user slot is empty, you hear a long beep and the unit returns to Normal mode. AYC-Q65 Installation and Programming Manual... - Page 55 4. Enter the 4- to 8-digit PIN code of the Primary code belonging to the user you want to delete. The Mode LED flashes red and Mode/Transmit Door/Program the Door LED flashes orange. Orange AYC-Q65 Installation and Programming Manual...
-
Page 56: Relay Codes Assignment
2. Press 9 to enter Menu 9. The Mode LED turns green and Mode/Transmit Door/Program the Door LED turns orange. Green Orange 3. Enter the 3-digit user slot for code assignment. The Mode LED flashes green. Mode/Transmit Door/Program Green Orange AYC-Q65 Installation and Programming Manual... -
Page 57: Relay Code Assignment Using Search Method
The Door LED flashes orange. Mode/Transmit Door/Program Green Orange The controller is now waiting for the primary code of the user. 4. Enter the primary code belonging to the user Mode/Transmit Door/Program The Mode LED flashes green. Green Orange AYC-Q65 Installation and Programming Manual... -
Page 58: Pin Code Length/Factory Default Settings
06 – Returns to factory defaults and sets a 6-digit code. 08 – Returns to factory defaults and sets a 4- to 8-digit code Both the Mode and Door LEDs Mode/Transmit Door/Program flash red. 3. Enter your 4- to 8-digit Programming code AYC-Q65 Installation and Programming Manual... -
Page 59: Replacing A Lost Programming Code
3. Apply power to the unit with the REX button pressed. 4. Release the REX button. 5. You now have 10 seconds to exit Secure mode using the initial default Normal/Secure code 3838. 6. Program a new normal/secure code as described in Section 5.9.6. AYC-Q65 Installation and Programming Manual... -
Page 60: Declaration Of Conformity
Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. AYC-Q65 Installation and Programming Manual... -
Page 61: Limited Warranty
The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. AYC-Q65 Installation and Programming Manual... - Page 62 Canada Fax: +86 755 8610 6101 Rosslare Security Products, Inc. support.cn@rosslaresecurity.com Southlake, TX, USA Toll Free: +1-866-632-1101 India Local: +1-817-305-0006 Rosslare Electronics India Pvt Ltd. Fax: +1-817-305-0069 Tel/Fax: +91 20 40147830 support.na@rosslaresecurity.com Mobile: +91 9975768824 sales.in@rosslaresecurity.com Europe Rosslare Israel Ltd.
