To permanentely store in the memory the new value, write hexadecimal value 0007 in Command
Register (0503).
FIELDBUS LINEARIZATION PROCEDURE
The linearization procedure remotely replicates the operations that can be performed from the keyboard
as described in the manual for the dead weight calibration:
• Zero calibration: send the command 0x0004; carry out the operation with unloaded scale but
complete of the fixed tare, with stabilized weight. The gross weight acquired must be reset. It is
possible to repeat this operation several times.
• Up to 5 linearization points on a positive scale are possible. Program the value of the actual
weight loaded and stabilized in the Data Register and send the command 0x0015. It is possible to
verify the successful operation by checking the gross weight acquired, the instrument automatically
switches to the next linearization point; if the weight is not stable the operation is not carried out.
The linearization command (0x0015) can be repeated up to 5 points.
• End the linearization procedure by sending the command 0x0055 after the acquisition of the last
point. It is possible to store a number of points lower than 5.
• Send the command 0x0007 to save the calibration in permanent memory.
USE OF SERIAL APPLICATIONS VIA THE USB PORT

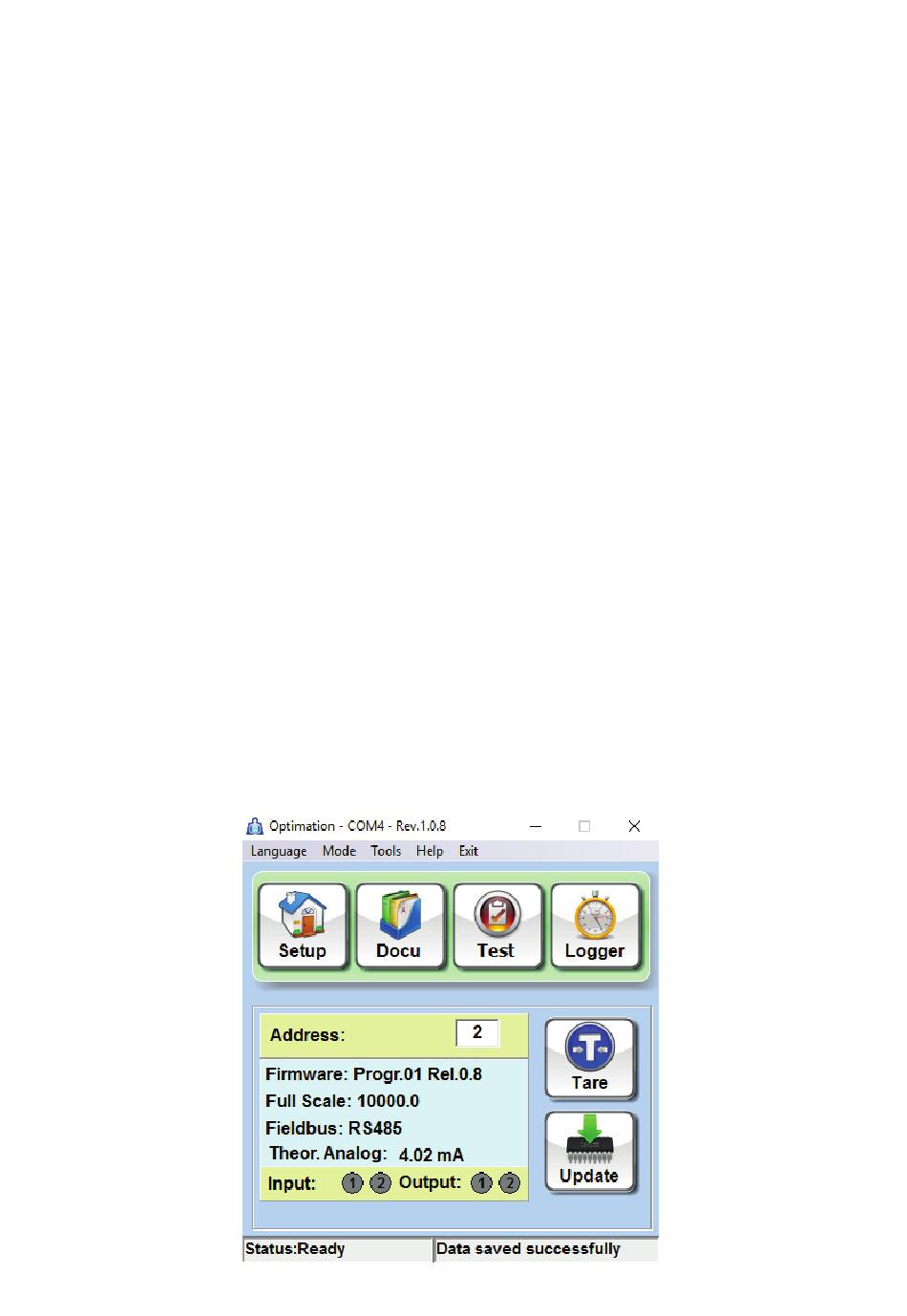

PC software "OPTIMATION" allows:
• total configuration of all the setup parameters;
• testing of the different hardware sections;
• consultation of the instrument documentation
• updating of instrument firmware
• storage over time of the weight values acquired by the instrument using the Datalogger function;
• saving and loading of the configuration parameters of the instrument on file.
