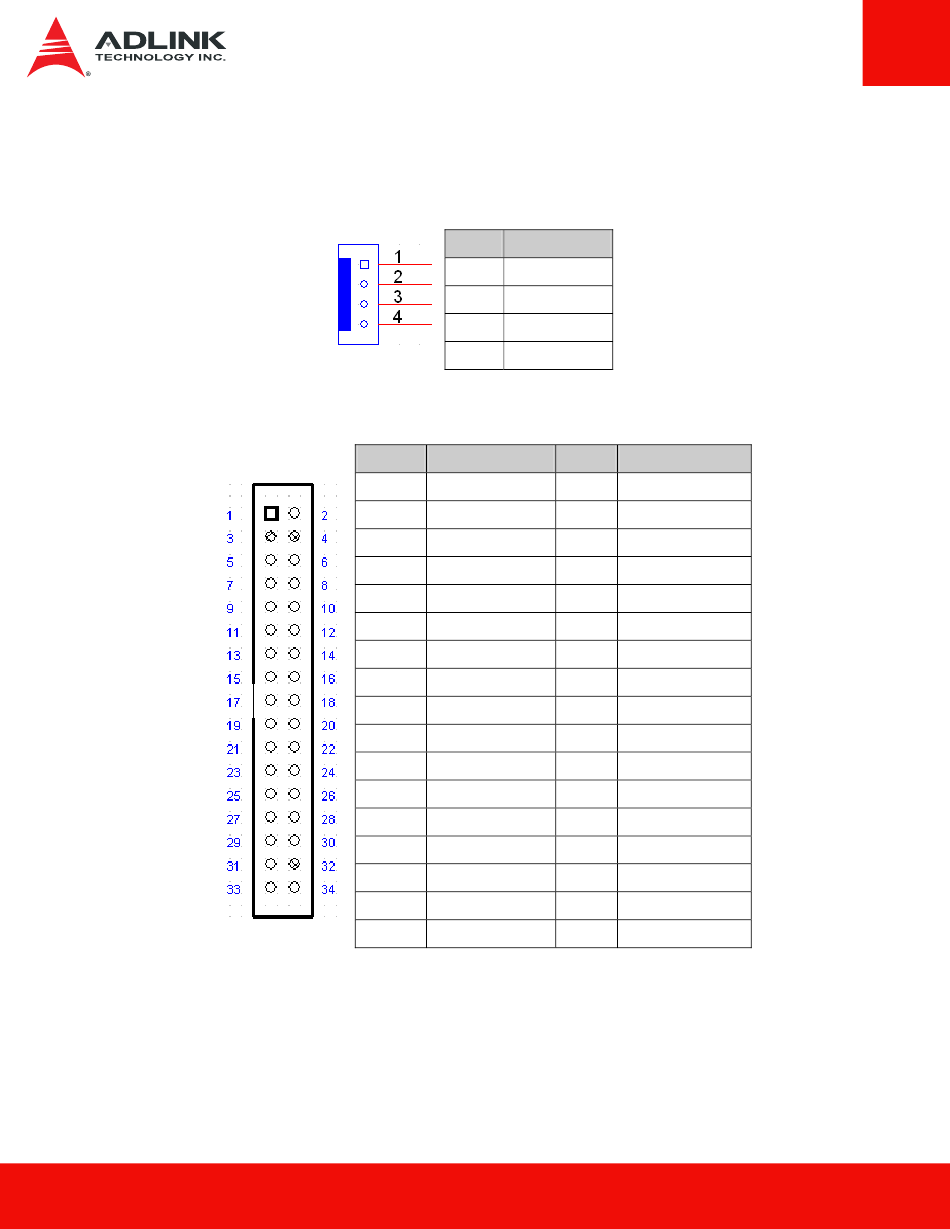

2.2 Connector Pin Definitions

CN1: Power Connector (Floppy power connector)
CN4: LVDS Input Connector (2x17 box header, 2.00 mm pitch)
10
Pin
Signal
1
+5V
2
GND
3
GND
4
+12V
Pin
Signal
1
LVDS_CLK_A
3
PNL_PWR
5
GND
7
LVDS_A-P0
9
LVDS_A-N1
11
BL_EN_2
13
LVDS_A-N2
15
LVDS_ACLK _ N
17
PNL_PWR
19
LVDS_A-N3
21
LVDS_B-N0
23
GND
25
LVDS_B-P1
27
LVDS_B-N2
29
GND
31
LVDS_BCLK _ N
33
LVDS_B-P3
Pin
Signal
2
LVDS_DTA_A
4
PNL_PWR
6
LVDS_A-N0
8
VDD_EN
10
LVDS_A-P1
12
LVDS_A-P2
14
N.C
16
LVDS_ACLK _ P
18
LVDS_A-P3
20
GND
22
LVDS_B-P0
24
LVDS_B-N1
26
GND
28
LVDS_B-P2
30
LVDS_BCLK _ P
32
N.C
34
LVDS_B-N3
FPTB User's Manual
