ADLINK Technology COM Express User Manual page 12

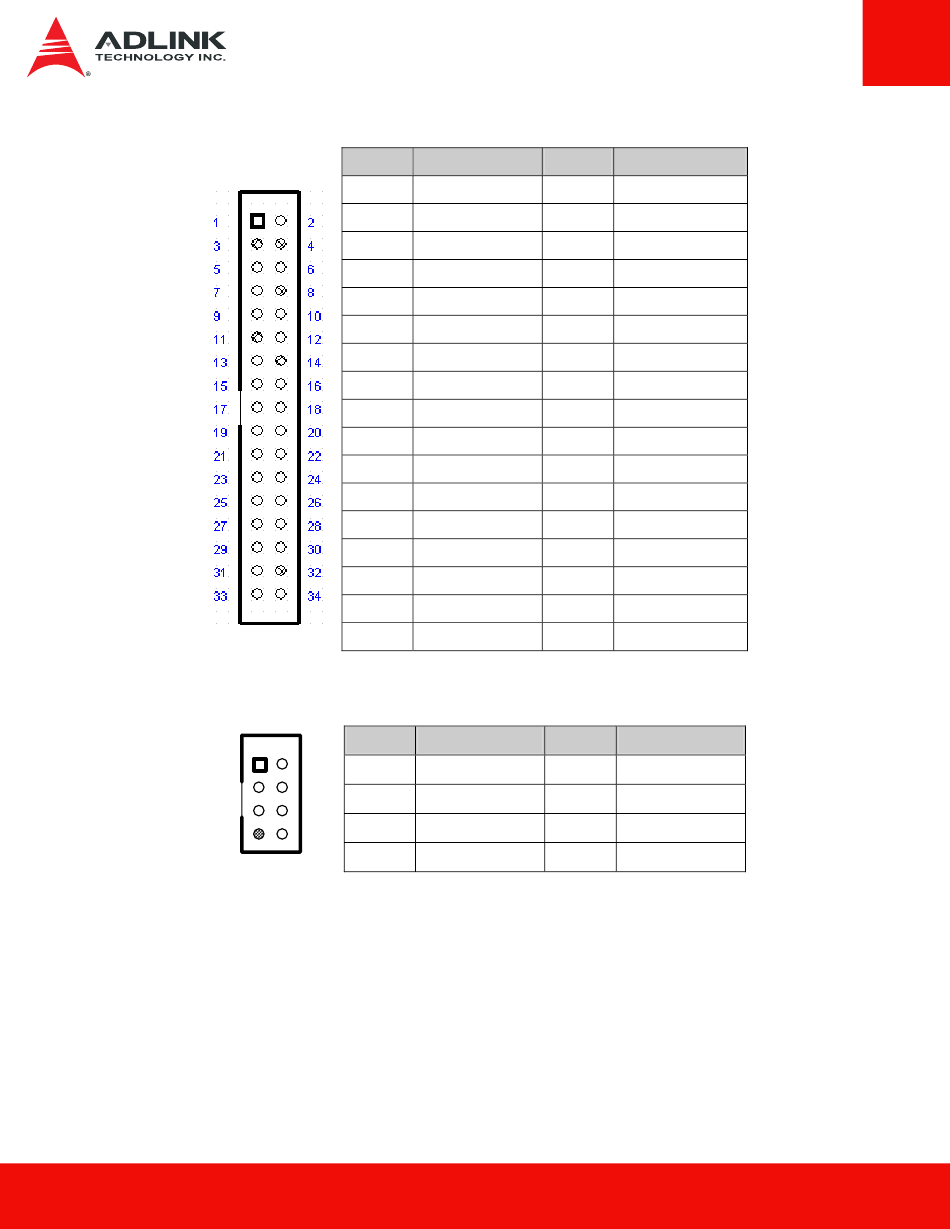

CN6: LVDS Output Connector (2x17 box header, 2.00 mm pitch)
CN8: Backlight Control Connector (2x4 box header, 2.54 mm pitch)
1
3
5
7
12
Pin Signal
1 LVDS_CLK_A
3 PNL_PWR
5 GND
7 LVDS_A-P0
9 LVDS_A-N1
11 BL_EN_2
13 LVDS_A-N2
15 LVDS_ACLK _ N
17 PNL_PWR
19 LVDS_A-N3
21 LVDS_B-N0
23 GND
25 LVDS_B-P1
27 LVDS_B-N2
29 GND
31 LVDS_BCLK _ N
33 LVDS_B-P3
Pin Signal
2
1 GND
4
3 BL_CTRL
6
5 LVDS_BL_EN
8
7 N.C.
Pin Signal
2 LVDS_DTA_A
4 PNL_PWR
6 LVDS_A-N0
8 VDD_EN
10 LVDS_A-P1
12 LVDS_A-P2
14 N.C
16 LVDS_ACLK _ P
18 LVDS_A-P3
20 GND
22 LVDS_B-P0
24 LVDS_B-N1
26 GND
28 LVDS_B-P2
30 LVDS_BCLK _ P
32 N.C
34 LVDS_B-N3
Pin Signal
2 PNL_PWR
4 GND
6 GND
8 BLK_PWR
