1.4 Applications

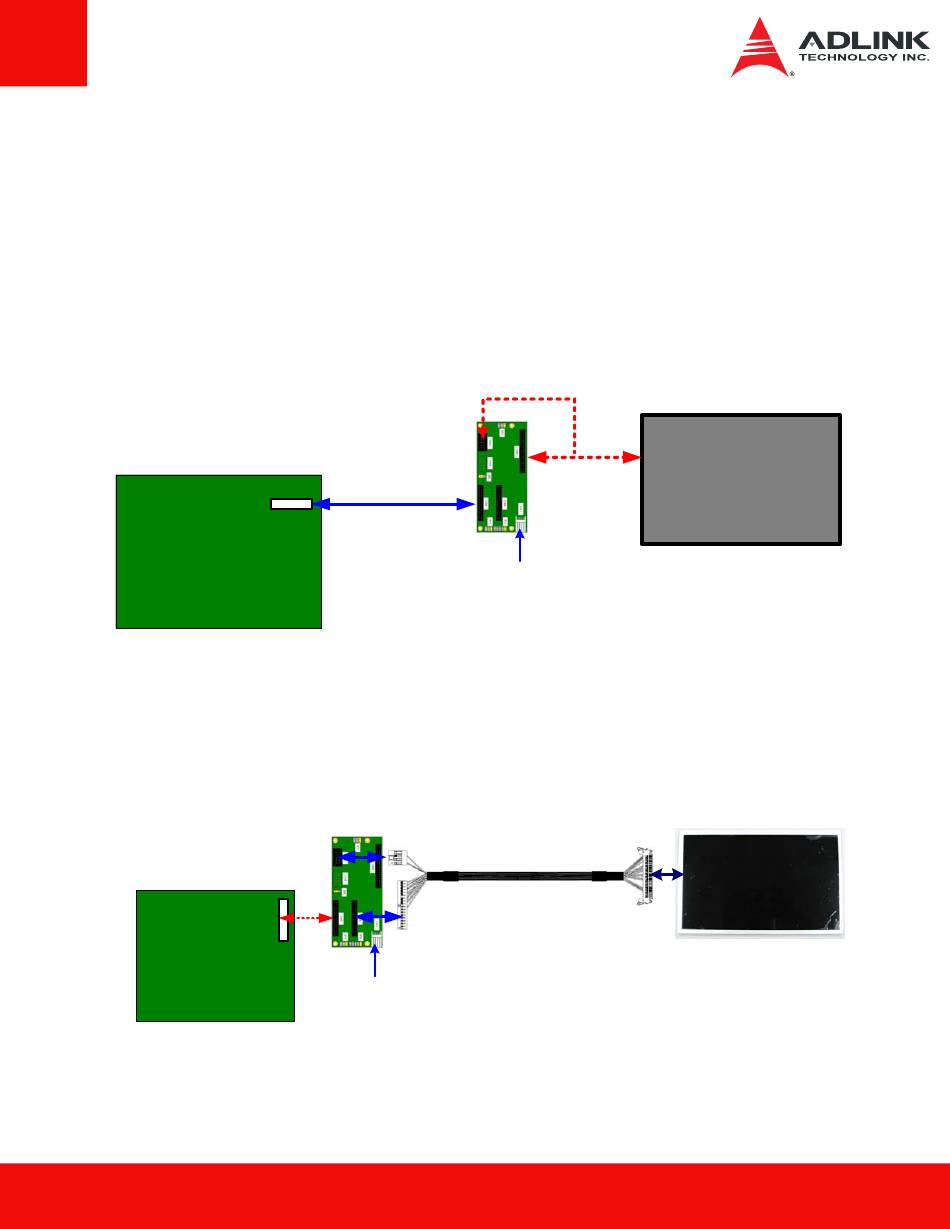

The FPTB is intended for use in the following situations:
nanoX/Express-BASE → FPTB → Customer's cable to TTL display: This
configuration provides LVDS-to-TTL conversion and backlight control when using an
ADLINK reference carrier board with a TTL display. User must provide the cable
connection from the FPTB's TTL output and backlight control connectors to the TTL panel
inputs.
LVDS output
nanoX/Express-BASE
Carrier Board
Customer carrier (with LVDS output) → Customer's cable to FPTB → HannStar
LVDS panel: This configuration provides backlight control and convenient verification of
LVDS function when using a customer carrier board with the HannStar 10.1" LVDS flat
panel display. User must provide the cable connection from the customer carrier board
LVDS output to the FPTB's LVDS input connector.
LVDS output
Customer
Carrier Board
FPTB User's Manual
Backlight
control
LVDS-to-LVDS cable
ADLINK P/N: 30-20449-0000
FPTB
Backlight
control
ADLINK P/N: 30-20243-2000
LVDS
signal
FPTB
5V and
12V Input
TTL
Signal
TTL Display
5V and
12V Input
ADLINK P/N: 29-90100-F000
7
