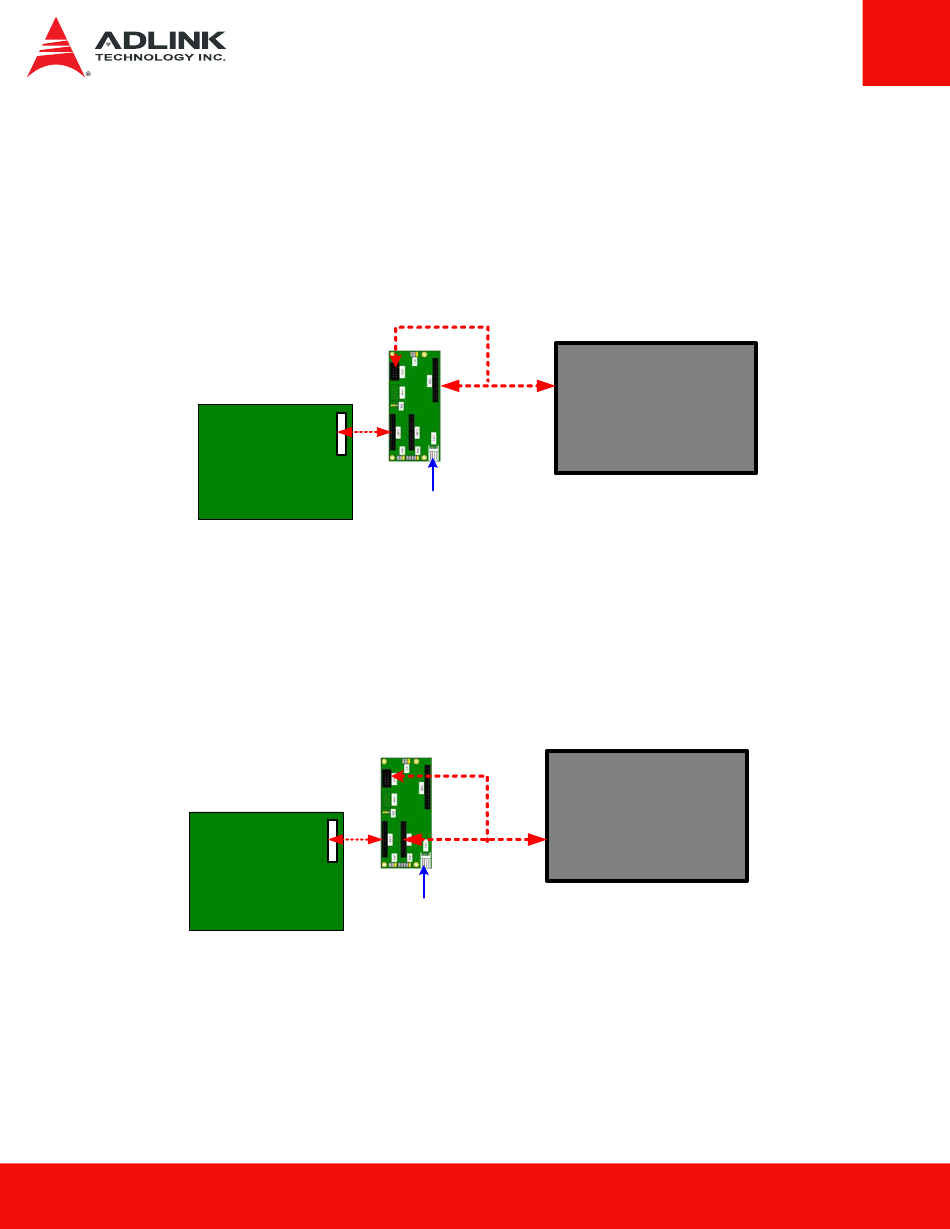

Customer carrier (with LVDS output) → Customer's cable to FPTB → FPTB →
Customer's cable to TTL panel: This configuration provides LVDS-to-TTL conversion
and backlight control when using a customer carrier board with a TTL display. User must
provide the cable connections from the customer carrier board LVDS output to the
FPTB's LVDS input connector and from the FPTB's TTL output and backlight control
connectors to the TTL panel inputs.
LVDS output
Customer
Carrier Board
•
Customer carrier (with LVDS output) → Customer's cable to FPTB → FPTB →
Customer's cable to other LVDS panel: This configuration provides backlight control
when using a customer carrier board with a customer LVDS flat panel display. User must
provide the cable connection from the customer carrier board LVDS output to the FPTB's
LVDS input connector and from the FPTB's LVDS output and backlight control
connectors to the LVDS panel inputs.
LVDS output
Customer
Carrier Board
8
Backlight
control
TTL
Signal
FPTB
5V and
12V Input
Backlight
control
LVDS
Signal
FPTB
5V and
12V Input
TTL Display
LVDS Display
