2 Connectors and Jumpers

2.1 Board Layout

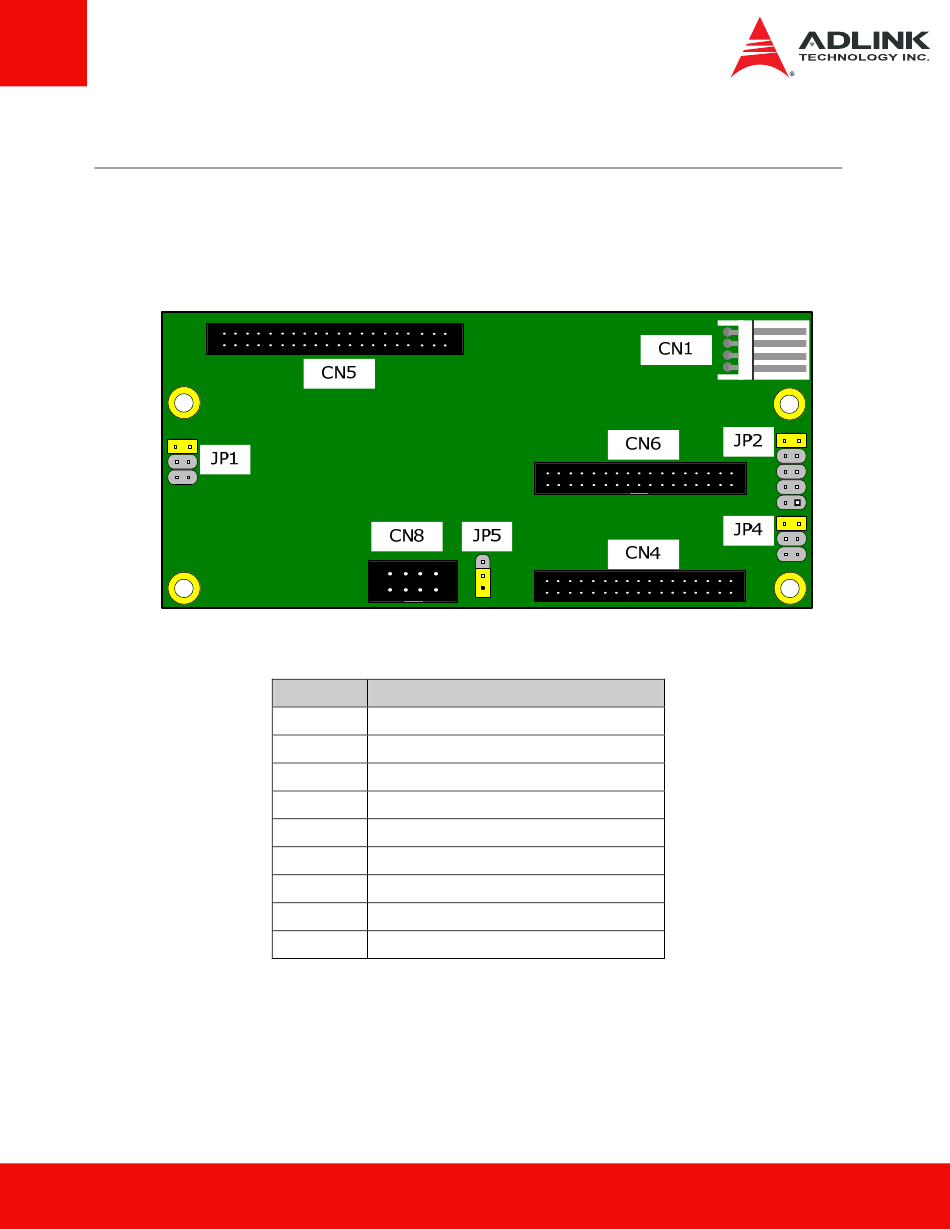

FPTB (Flat Panel Transfer Board) Connector and Jumper Locations
FPTB User's Manual
Connector
CN1
CN4
LVDS Input Connector
CN5
TTL Output Connector
CN6
LVDS Output Connector
CN8
Backlight Control Connector
JP1
Backlight Voltage Jumper
JP2
Panel Voltage Jumper
JP4
LVDS/TTL Mode Selector Jumper
JP5
Backlight Control Mode Jumper
Description
Power Connector
9
