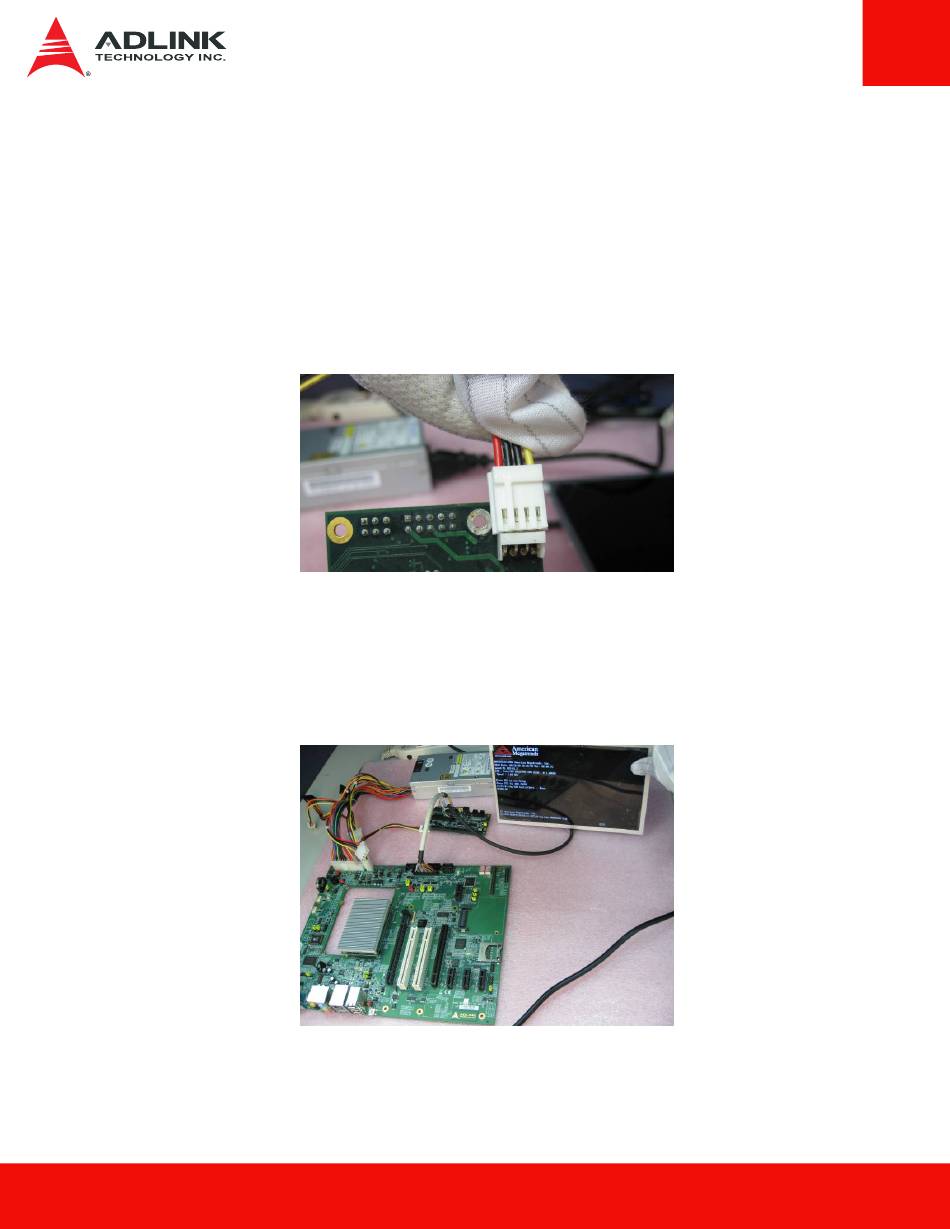

3.3 TTL Output to Display Panel
Make the appropriate cable to connect the TTL Output Connector (CN5) and Backlight
Control Connector (CN8) on the FPTB to the target TTL display panel.
3.4 FPTB Power Connector
Connect the Floppy Drive power connector of your power supply to the FPTB Power
Connector (CN1).
3.5 Power Up the System
Assemble the rest of your system as required and power it on. An example nanoX-BASE
system with FPTB connected to a TTL display panel is shown below.
16
FPTB User's Manual
