6. Instrument Installation
Site Requirements and Operating Environment
To install and operate the ANKOM
•
Adequate Power: 100V−120V ~ 50/60Hz 15A
•
Must have ability to connect to an exhaust system
•
Bench space that can accommodate 77.5 cm (30.5") W x 81.3 cm (32") H x 45.7 cm (18") D and a weight of 54.4 kg
(120 lbs.)
•
5.5-6.9 bar (80-100 psi) Nitrogen Supply and connection tubing
•
Ambient Temperature Range: 19°−30°C (66°-86°F)
Unpack and place the instrument where it will be used.
The instrument shipping container consists of three separate cardboard pieces: a top, a bottom, and a sleeve that forms the
body of the container. Remove the top and the sleeve of the instrument shipping container. Lift the instrument from the
shipping container bottom and place it on a surface that is firm and level. The instrument needs to be near a nitrogen supply
and within range to connect exhaust lines to a ventilation hood or exhaust system. The instrument must not be subjected to
excessive shock, vibration, dirt, moisture, oil, or other fluids.
Unpack the attachments and accessories.
Within the shipping container is a cardboard box containing attachments, accessories, and a tool kit. Open the box and verify
that the following items are present. The tool kit will have a separate packing list included.

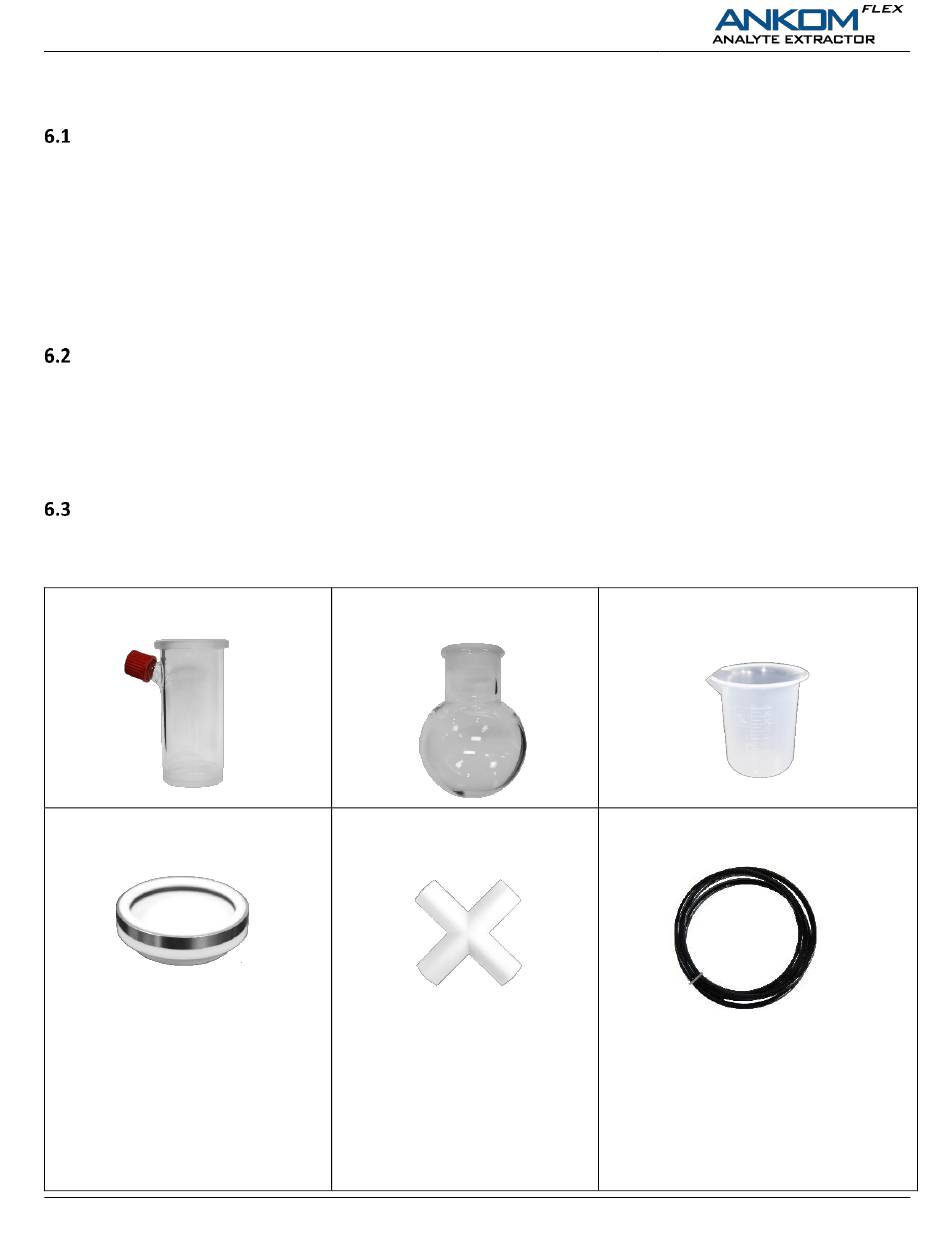

Digestion Vessel with port (4 Qty)
part # FLEX55
Vessel Bottom Assembly (4 Qty)
part # FLEX54
pg. 10
FLEX
Analyte Extractor you will need the following:
220V−240V ~ 50/60Hz 8A
Round Bottom Flask (4 Qty)
Magnetic Cross Stir-bar (4 Qty)
part # 9364
part # 9415
100 ml Plastic Calibration Cup (4 Qty)
part # 9483
Black Nitrogen Supply Tubing (1 Qty)
part # 8216
Rev 1/22/2021
