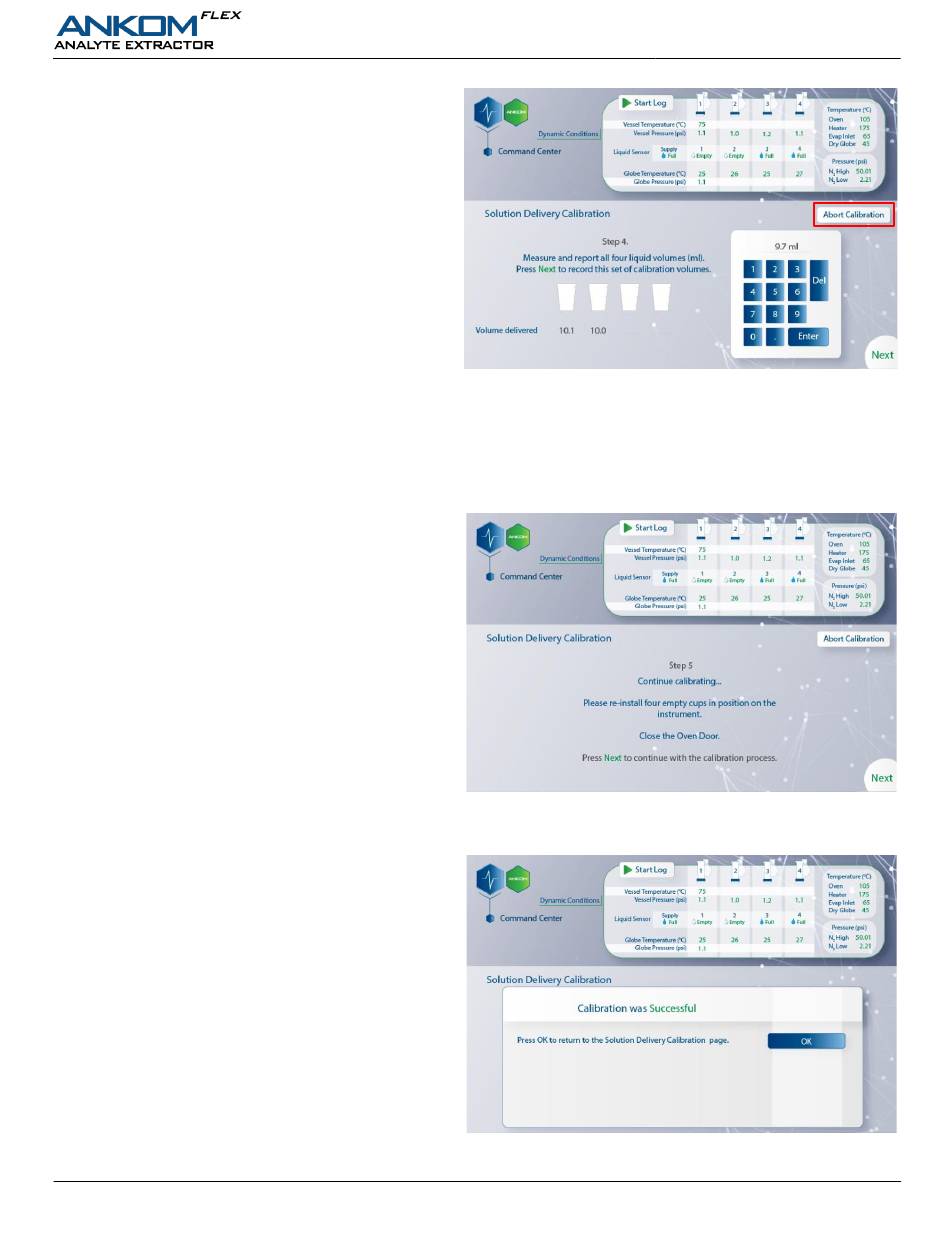

15.1.9. Open the digestion oven door and
remove the plastic cups. Using a
graduated cylinder, measure and enter
the volumes delivered in each plastic cup
to the nearest tenth on the HMI screen.
DO NOT PRESS "Next" on the HMI screen.
15.1.10. VERY IMPORTANT:
•
If Yes – Continue calibration by pressing "Next" and follow the prompts on screen.
•
If No – Abort Calibration and re-try the Solution Delivery Calibration. If volume falls outside this range
again (8.5 – 11.5ml), abort calibration and contact ANKOM Technology.
15.1.11. The following screen will be displayed
when one calibration series has been
completed, but calibration accuracy has
not yet been reached.
Continue with the calibration procedure
by following the steps on the screen. The
calibration process must be repeated
until the delivery volume is within an
acceptable accuracy range and the
calibration test is passed.
The system will try multiple times to
achieve desired accuracy but will fault if
system is unable to calibrate.
15.1.12. This screen will be displayed if the
calibration is successful. The pump
configuration settings for that solution is
updated and will be used during analysis.
Press "Ok."
Rev 1/22/2021
Are all the volumes between 8.5-11.5ml?
