Operator's Manual

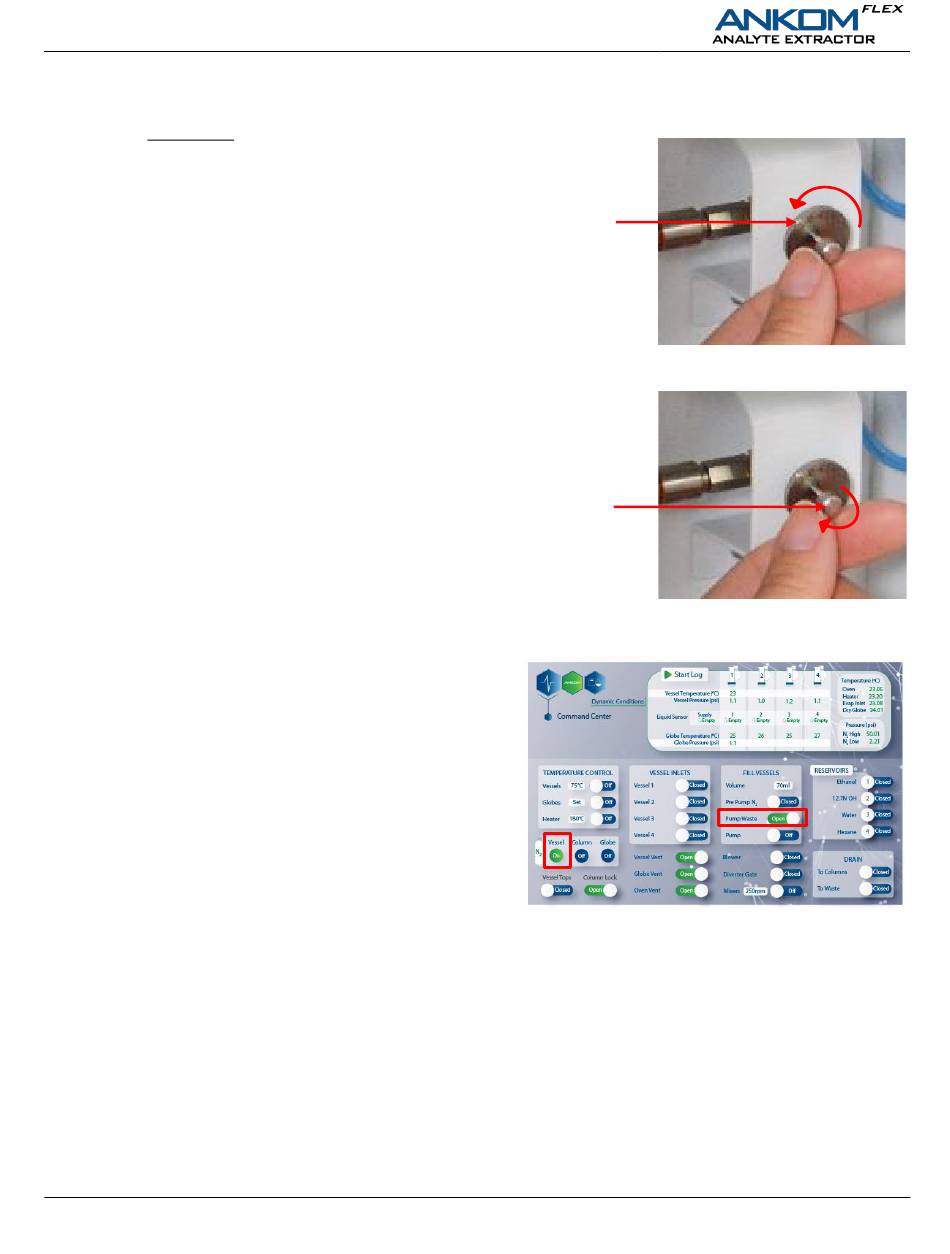

6.7.2. Adjusting N
To increase:
a. Rotate the lock disc counterclockwise (to the
left) to unlock.
b. Rotate the dial clockwise (to the right) until the
pressure increases within the desired range on the
HMI touchscreen.
c. In the "Command Center", open the "Pump
Waste."
d. Turn vessel nitrogen "ON."
e. Wait ~2 seconds.
f. Turn Vessel N
g. Close the "Pump Waste."
h. Rotate the lock disc clockwise (to the right) to
lock.
i. Confirm that the low pressure is now within range.
If N Low pressure is still below range (2.2-2.5 psi), repeat the steps to increase.
2
pg. 16
Low Pressure Regulator
2
"Off."
2
Lock Disc
Dial
