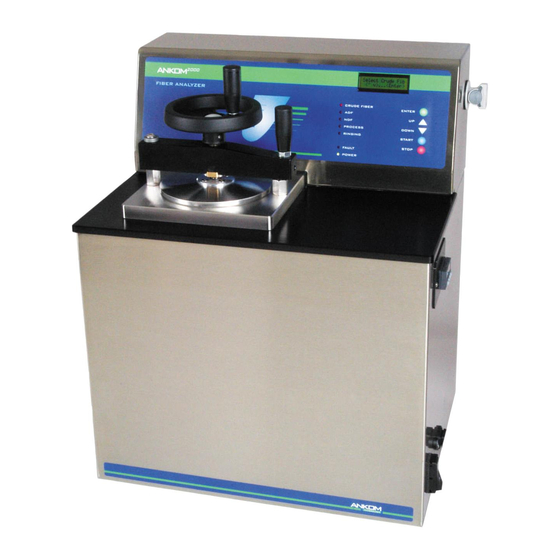

Note: If your A2000/A2000I does not have a SICK Module,
see Service Procedure 22.
Replacing the SICK Fiber Optic Module:
1. Turn the A2000 off.
2. The SICK module is blue and located in the top right of the Instrument.
3. Unscrew the SICK module from the bracket.
4. Use the screwdriver to pop out the retaining clip that holds the 2 fiber optic cables in the
socket. Don't lose the clip!
5. Remove the 2 fiber optic cables and insert them into the new SICK Module.
6. Pop the clip back in place to keep the cables from coming out. The clip snaps in. Make sure
the fiber optic cables are fully inserted as the clip lines up with the groove on the cable ends.
7. There are 4 wires extending from the SICK module: #I 6 , #4, #3 and #3.
ANKOM Technology 2052 O'Neil Rd Macedon, NY 14502 PH: (315) 986-8090 FAX: (315) 986-8091
Level Sensor (SICK) Component Replacement
A2000/A2000I
service@ankom.com
011
Service Procedure
(Page 1 of 3) 08/05/2014

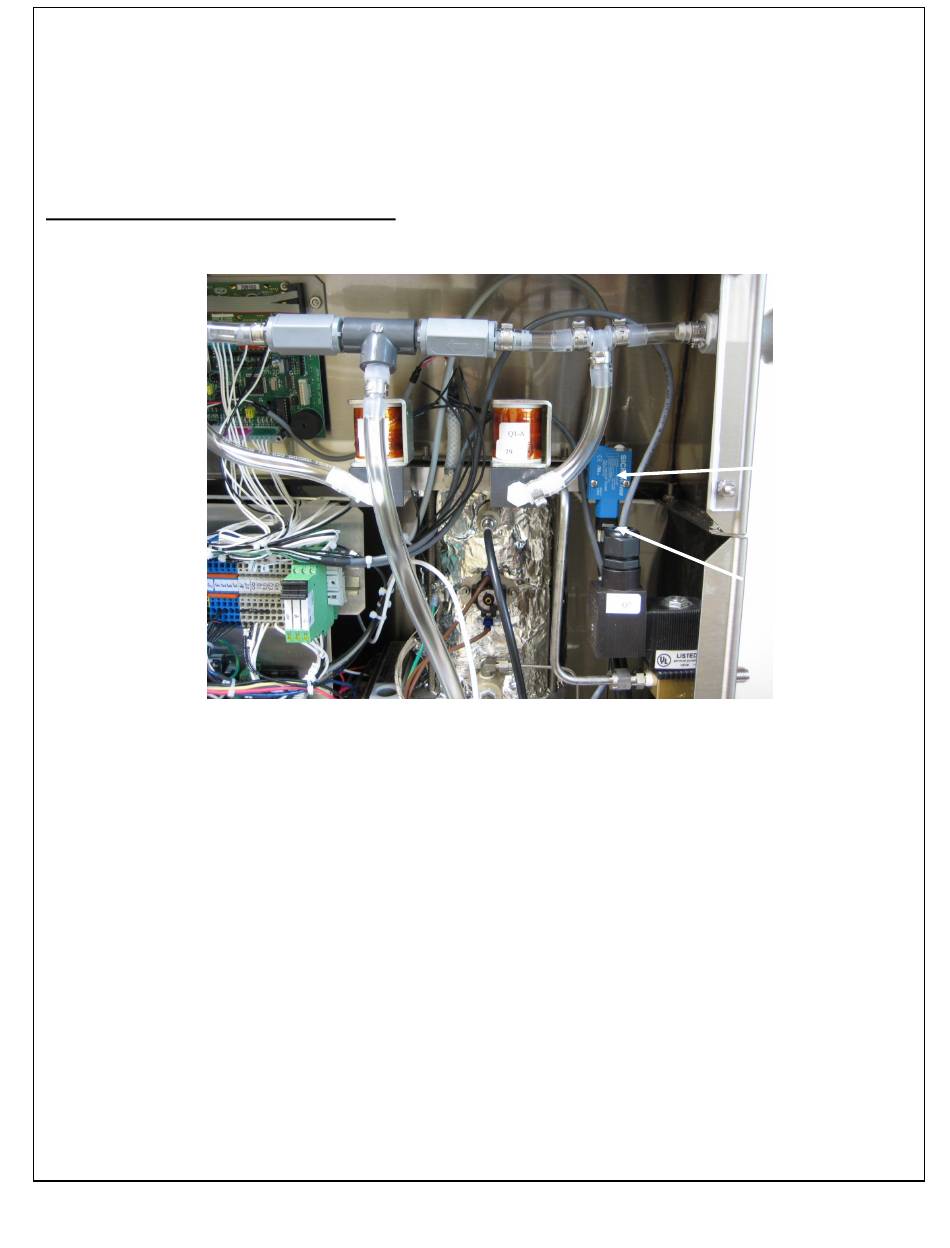

SICK Module
Clip
