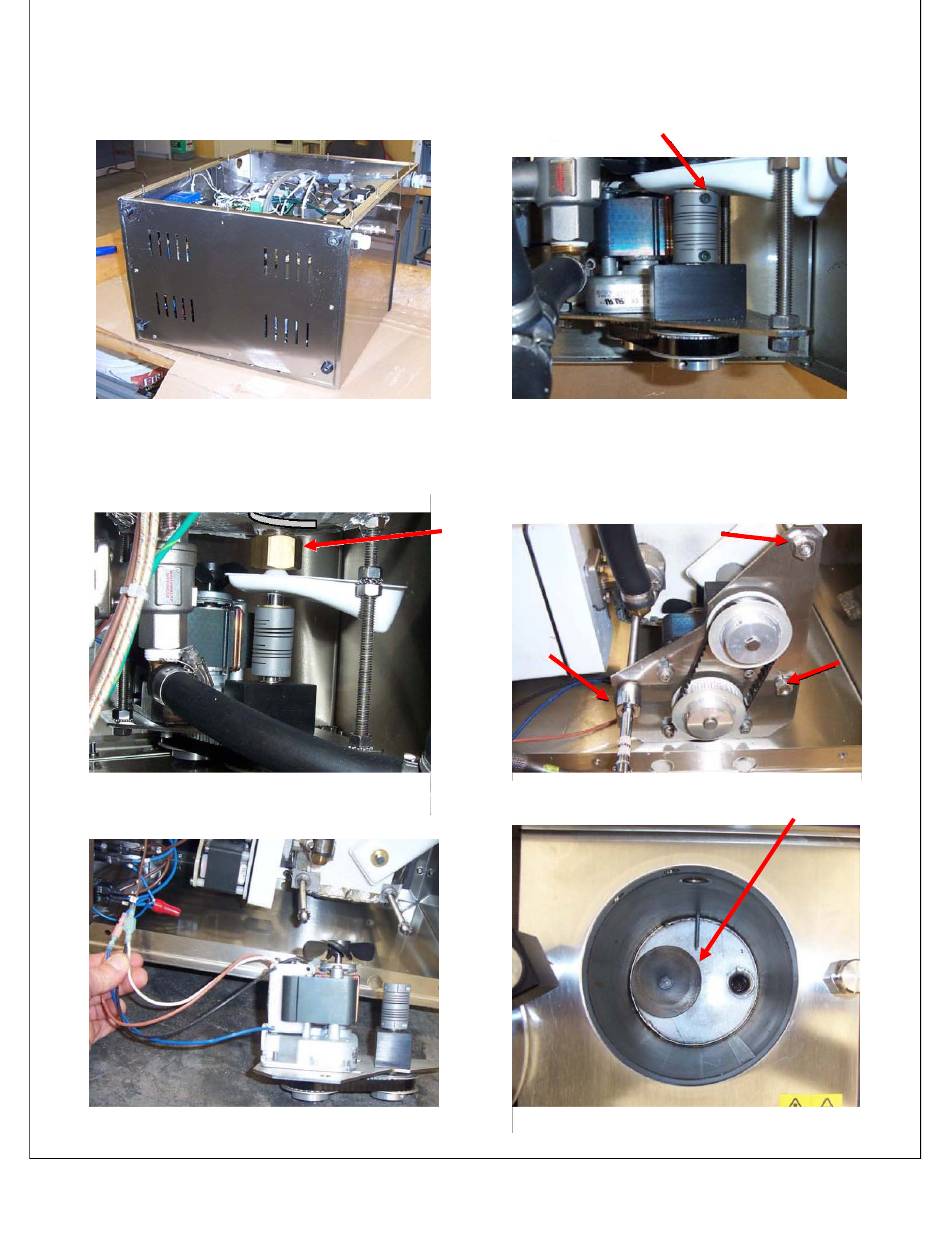

1. Place cardboard on a table. Lay the A2000 on
it's front. Remove the nuts that secure the clear
back panel. Remove the panel. Remove the
feet and mounting screws, then remove the
bottom panel.
3. Loosen the packing nut until it is finger loose.
5. Unplug the motor wires and set the motor out of
the way.
ANKOM Technology 2052 O'Neil Road Macedon, NY 14502 PH: (315) 986-8090 FAX: (315) 986-8091
Packing and Agitator Replacement
A2000/A2000I
service@ankom.com
2. Loosen the top set screw on the coupler.
4. Remove the three nuts that secure the motor
bracket in place
6. Twist and pull up to remove the agitator.
002
Service Procedure #
(Page 1 of 3) 08/05/2014
Advertisement
Table of Contents
Related Manuals for Ankom A2000
Summary of Contents for Ankom A2000
- Page 1 5. Unplug the motor wires and set the motor out of 6. Twist and pull up to remove the agitator. the way. ANKOM Technology 2052 O’Neil Road Macedon, NY 14502 PH: (315) 986-8090 FAX: (315) 986-8091 service@ankom.com...
- Page 2 When removed, it will look similar to the image on the left. Ensure both ropes are removed or the new packing will not fit. ANKOM Technology 2052 O’Neil Road Macedon, NY 14502 PH: (315) 986-8090 FAX: (315) 986-8091 service@ankom.com...
- Page 3 (Page 1 of 3) 08/05/2014 Packing and Agitator Replacement A2000/A2000I Packing Bushing Bushing Packing Packing 3. Check the packing nut after four hours of use and adjust if necessary. If assistance is needed, call ANKOM Technology at 315-986-8090 or email technical service at service@ankom.com.
