Wipe down components

6.4.1. Wipe the digestion vessel top's spray nozzles and O-rings, vessel bases, and the SPE column top's O-rings with
a towel wetted with water. Refer to FLEX Service Procedure FLS011.

Make Connections

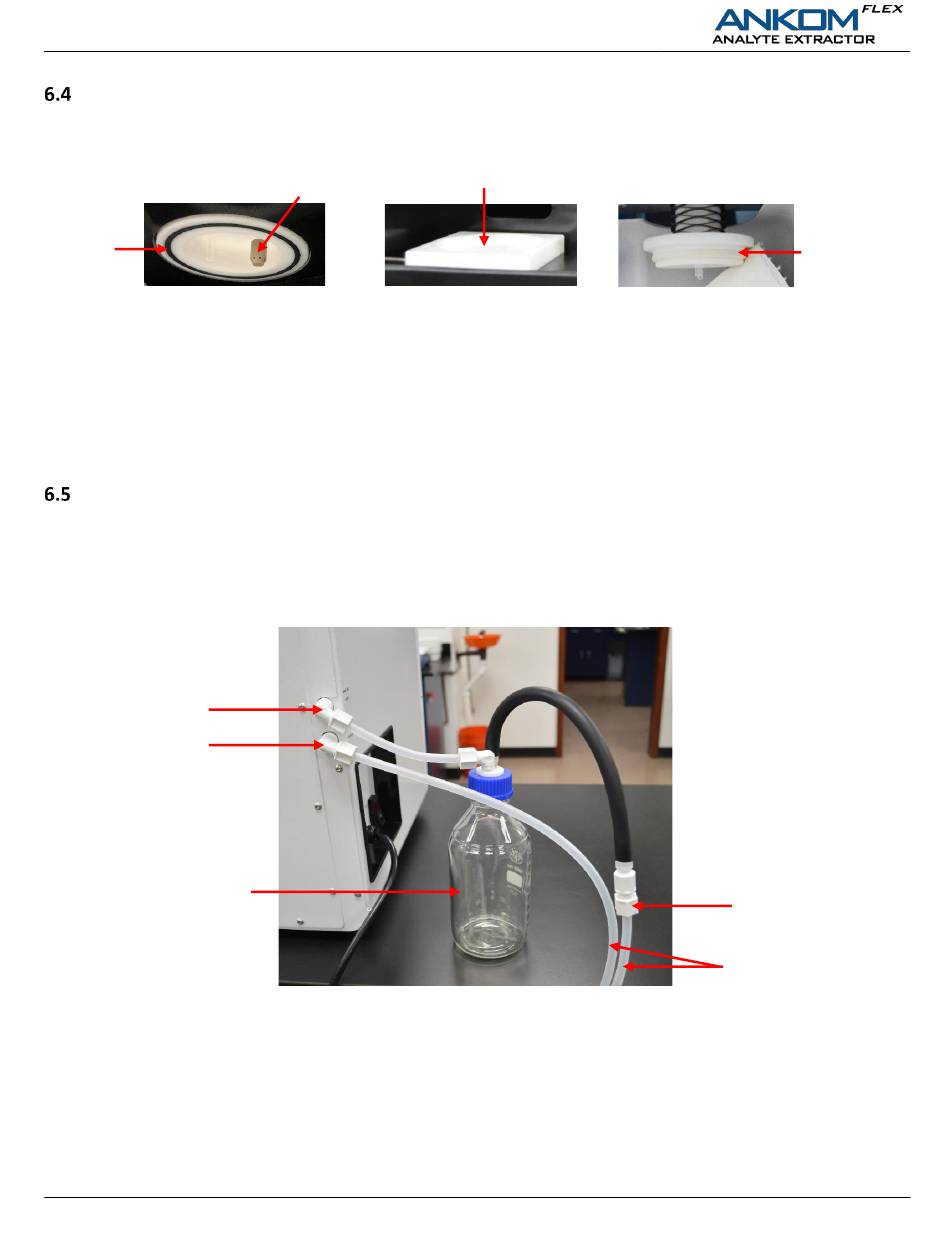

6.5.1. Connect waste assembly - Connect the shorter opaque tube to the vessel vent and waste port on the back of
the instrument and the longer opaque tube to the globe vent port. Connect the exhaust line to the waste
assembly exhaust line connection. Exhaust lines can be ventilated to an exhaust system. Screw on the cap to
the waste reservoir. Refer to FLEX Service Procedure FLS001.
Vessel Vent and
Waste port
Globe Vent
Waste Reservoir
pg. 12
Exhaust line
connection
Exhaust Tubes
