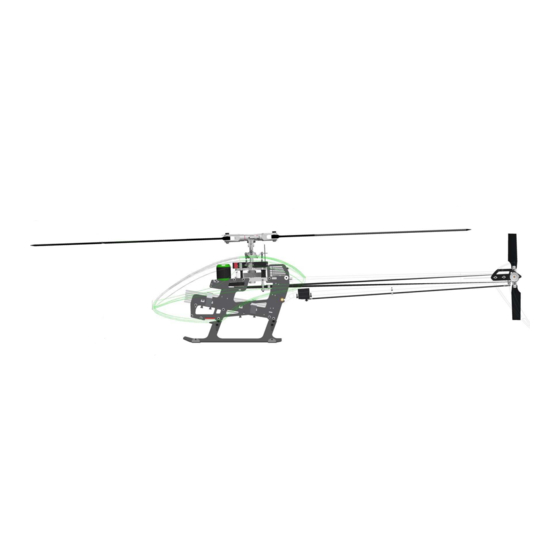

SAB Heli Division Goblin 700 Manual

Raw nitro
Hide thumbs Also See for Goblin 700:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for SAB Heli Division Goblin 700

Summary of Contents for SAB Heli Division Goblin 700

  • Page 2: Very Important

    SAB Heli Division cannot be held responsible for any issues with your model and will not provide support unless you register your model.
  • Page 3 INTRODUCTION GOBLIN RAW NITRO TECHNICAL SPECIFICATIONS Minimum tail blades size: 105mm Maximum tail blades size: 115mm 1445mm • RTF Approx. Weight: 4000 g (RTF no fuel). • Cyclic Servos: Standard size 40mm. • Main blade length: 650mm to 720mm ( 690mm included ). •...

  • Page 4: Important Notes

    PRODUCT, WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. Further, in no event shall the liability of SAB Heli Division exceed the individual price of the Product on which liability is asserted. As SAB Heli Division has no control over use, setup, final assembly, modification or misuse, no liability shall be assumed nor accepted for any resulting damage or injury.

  • Page 5: Additional Components Required

    NOTE FOR ASSEMBLY ADDITIONAL COMPONENTS REQUIRED TOOLS, LUBRICANTS, ADHESIVES INSIDE THE MAIN BOX THERE ARE: Extra Card *Generic pliers. *Engine: .90 to .105 Nitro Heli Engine. *Hexagonal driver, size 1.5, 2, 2.5, 3mm. *Muffer suited for the engine being used. *4/5mm T-Wrench.
  • Page 6 CARBON ROD ASSEMBLY Box 4, Bag for page 5 Carbon Rod 2.5x 4x691mm (HC619-S) Brass Tube 4.1x40mm Threaded Rod M2.5x40mm Threaded Rod M2.5x40mm (H0769-S) (HC242-S) (HC242-S) NOTE: Glue the tube on the carbon rod after setting up the tail servo, in order to NOTE: define the correct gluing position.
  • Page 7 TRANSMISSION GROUP ASSEMBLY Box 1, Bag for page 6 TRANSMISSION GROUP ASSEMBLED AND VERIFIED Socket Head Cap Rear Servo Mount Socket Head Cap The unit is ready to use Screw M3x8mm (H1207-S) Screw M2.5x8mm Check page 39 for more information. (HC050-S) (HC020-S) Front Servo Mount...
  • Page 8 SWASHPLATE SERVOS ASSEMBLY Box 1, Bag for page 7 SERVO ASSEMBLY Socket Head Cap The linkage ball must be positioned 18 mm out on the servo arm. The recommended servo arm to Screw M2.5x8mm use is: SAB p/n [HA050/HA051]. (HC020-S) Ensure the alignment of the servo arms (and sub trim is set) before installation of the servos in the model.

  • Page 9: Carbon Frame

    FRAME GROUP ASSEMBLY Box 3, Bag for page 8 CARBON FRAME The manufacturing process of the carbon parts often leaves micro-burrs and sharp edges. We recommend de-burring the edges to minimize the risks of electrical wire cuts, etc. Very important in red line zone. Install here the 2 special NUT Block ( you can find in single bag ) LEFT UPPER MAIN FRAME ASSEMBLY RIGHT UPPER MAIN FRAME ASSEMBLY...
  • Page 10 FRAME GROUP ASSEMBLY Box 1, Bag for page 9 Socket Head Cap NOTE: Do not tighten the 7 M3 screws at Socket Head Cap Screw M3x10mm G10 Wire Cover this stage, screw will be tightened on page Screw M3x8mm (HC056-S) (H1444-S) 25 when adjusting the main belt tension.

  • Page 11: Head Assembly

    HEAD ASSEMBLY Box 1, Bag for page 10 UNIBALL RADIUS ARM ASSEMBLY ...x2 RADIUS ARM ASSEMBLY ...x2 LINKAGE ROD ASSEMBLY ...X2 Plastic Ball Link (H0402-S) Spacer Arm Linkage Rod 2.5x 4x6.3mm Flanged Bearing Radius Arm Flanged Bearing M3x40mm 2.5x 6x2.5mm (H0204BM-S) 2.5x 6x2.5mm...
  • Page 12 HEAD ASSEMBLY Box 1, Bag for page 11 Button Head Cap Screw M6x10mm NOTE: (HC122-S) Washer 14x0.2mm [HC228-S] CENTER HUB After approximately 10/20 flights, please check preload, you can add eg: Microlube ASSEMBLY one 0.2mm shim on each side if preload has changed ( Extra bag box 2). GL261 However, we suggest to replace the o-rings after about 100 flights.

  • Page 13: Swashplate Assembly

    ASSEMBLING OF THE MODULES Box 1, Bag for page 12 SWASHPLATE ASSEMBLY Socket Head Cap Uniball M3 Screw M3x12mm (H0065-S) (HC062-S) Metric Hex Nylon Nut M4 (HC212-S) Socket Head Cap Screw M3x12mm (HC062-S) Reference Pin (H1048-S) Swashplate SET Uniball M3 eg: Microlube GL261 (H1204-S) (H0065-S)
  • Page 14 ASSEMBLING OF THE MODULES Box 1, Bag for page 13 LINKAGE ROD B ASSEMBLY ... X3 Approx 45mm Plastic ball link Plastic ball link (H0066-S) (H0066-S) Set Screw M2.5x18mm (HC140-S) Initial length for the rods from the servos to the swash plate. LINKAGE ROD B ASSEMBLY Page 13...

  • Page 15: Tensioner Assembly

    TENSIONER ASSEMBLY Box 1, Bag for page 14 Socket Head Cap Shoulder Screws M3x18mm (HC079-S) NOTE: Lip Facing Down Base Tail Belt Tensioner TAIL BELT IDLER (H1278-S) ASSEMBLY (H1066-S) TAIL BELT IDLER ASSEMBLY (H1066-S) Shim 4.75x0.5 (H1066-S) Socket Head Cap Shoulder Base Tail Belt Screw M3x18mm idler Mount...
  • Page 16 TENSIONER ASSEMBLY Box 1, Bag for page 15 Socket Head Cap Screw M3x12mm (HC062-S) NOTE: The idler that is slightly Socket Head Cap raised goes towards Screw M3x8mm. the tensioned idler. (HC050-S) Washer 3.2x 6x0.5 (HC180-S) Finishing Washer M3 (H0007-S) Boom Mount Support TENSIONER (H1350-S)
  • Page 17 LOWER SIDE FRAME INSTALLATION LOWER SIDE FRAME ASSEMBLY Box 3, Bag for page 16 LOWER RIGHT MAIN FRAME ASSEMBLY LOWER LEFT MAIN FRAME ASSEMBLY Double Side Tape Double Side Tape (HA081-S) (HA081-S) RIGHT SIDE STICKER LEFT SIDE STICKER Lower Main Frame Lower Main Frame (H1344-S) (H1344-S)
  • Page 18 LOWER SIDE FRAME INSTALLATION Box 3, Bag for page 17 Socket Head Cap Screw M3x16mm (HC068-S) LEFT LOW MAIN FRAME ASSEMBLY Finishing Washer M3 (H0007-S) Finishing Washer M3 (H0007-S) RIGHT LOW MAIN FRAME ASSEMBLY Socket Head Cap Screw M3x16mm (HC068-S) Page 17...

  • Page 19: Landing Gear Installation

    LANDING GEAR INSTALLATION Box 3, Bag for page 18 Landing Gear Plug Alu Landing Gear Support Mount Assembly Plastic Landing Gear Support (H1407-WS) Landing Gear Rod (H1242-S) Socket Head Cap Screw M2.5x8mm (HC020-S) Page 18...

  • Page 20: Landing Gear Assembly

    LANDING GEAR INSTALLATION Box 3, Bag for page 19 Socket Head Cap Screws M3x12 (HC062-S) Finishing Washer M3 (H0007-S) LANDING GEAR ASSEMBLY CF Low Side Frame Front (H1358-S) Set Screw M4x4mm (HC152-S) Flat Head Cap Screw M2.5x8mm (HC125-S) Finishing Washer M3 Canopy Spacer (H0007-S) (H1348-S)

  • Page 21: Important Note

    ENGINE UNIT ASSEMBLY Box 3, Bag for page 20 ENGINE MOUNT ASSEMBLY CLUTCH UNIT ASSEMBLY Flat Head Cap Flat Head Cap Screw M3x8mm Screw M3x8mm SECTION (HC134-S) (HC134-S) Engine Support DX (H0665-S) (H0671BM-S) Engine Support Spacer (H0682-S) Clutch Support (H0672-S) Note: Counterbore external side.
  • Page 22 ENGINE UNIT ASSEMBLY Box 3, Bag for page 21 MAIN RATIO ENGINE ASSEMBLY It is possible to have 5 ratios using the following Pulleys: NOTE: H0675BL-28-S 52/28 H0675BL-27-S 52/27 Do not add loctite H0675BL-26-S 52/26 Socket Head Cap on the engine shaft Screws M3x10mm The KIT includes ratio : 52T-27T ->...
  • Page 23 ENGINE UNIT ASSEMBLY Box 3, Bag for page 22 INSTALLATION OF THE RPM SENSOR On the RAW nitro it is possible to use two different methods to install an RPM sensor. The first is a backplate sensor as demonstrated in the picture on the right. P.S: Not all YS engines can support this method.
  • Page 24 ENGINE UNIT ASSEMBLY Box 3, Bag for page 23 FAN CASE SX ASSEMBLY FAN CASE DX ASSEMBLY ENGINE GROUP Finishing Socket Head Cap Socket Head Cap ASSEMBLY Washer M2.5 Screw M2.5x8mm Screw M3x10mm (H0255-S) (HC020-S) (HC056-S) Fan Case SX (H0662-S) Socket Head Cap Screw M2.5x10mm (HC022-S)

  • Page 25: Linkage Assembly

    ENGINE UNIT ASSEMBLY Box 3, Bag for page 24 INSTALLATION OF THE THROTTLE SERVO When installing the throttle servo, It is important to have the correct distance for the ball. Approx 10-12mm Servo Block (H0251-S) Aprrox 82mm Aprrox 78mm [HA050] 35mm Servo Spacer [HC044]...
  • Page 26 ENGINE UNIT ASSEMBLY Box 3, Bag for page 25 NOTE: Loosen all of the M3x8mm screws. Using a 5/6mm shaft, you can tension the engine belt. Socket Head Cap Screw M4x10mm (HC102-S) Socket Head Cap Screw M4x15mm (HC103-S) Washer 4.3x 11x1mm (HC184-S) Page 25...

  • Page 27: Tail Pitch Slider

    TAIL GROUP ASSEMBLY Box 2, Bag for page 26 NOTE: Oring 90 Shore Tail Shaft It is a normal for the tail to feel a bit tight after initial assembly as the tail (HC594-S) (H1313-S) spindle preload is usually high when the helicopter is brand new. The preload Spacer 6.9x0.5mm will loosen up after 2-5 flights allowing the system to become smooth.
  • Page 28 TAIL GROUP ASSEMBLY Box 2, Bag for page 27 Socket Head Cap Screw M3x6mm (HC044-S) Socket Head Cap Screw M2.5x8mm Tail Belt (HC020-S) (HC477-S) Tail Case Group (H1306-S) ASSEMBLED WITH BEARING Bell Crank Base (H1314-S) TAIL ROTOR ASSEMBLY NOTE Lip Facing Down Tail Fin Socket Head Cap (H1196-S)

  • Page 29: Tail Boom Assembly

    TAIL BOOM ASSEMBLY Box 4, Bag for page 28 [H1310] TAIL SERVO ASSEMBLY Socket Head Uniball M2 Screw M3x6mm (H0064-S) TUBE Tail Boom Servo Mount Approx 400mm (HC044-S) (H1339-S) Servo Arm (H1353-S) Socket Head Socket Head Cap (HA050-S) Screw M2x6mm Carbon Rod Support Screw M2.5x12mm (HC004-S)
  • Page 30 TAIL BOOM ASSEMBLY Box 2, Bag for page 29 NOTE: This tool helps keep the tensioner out of BOOM BLOCK ASSEMBLY the way for easy belt installation. NOTE: Do not tighten the M3x12 at this moment. Nylon Nut M3 M3x12mm (HC206-S) (HC062-S) M3x12mm...

  • Page 31: Tool Kit Assembly

    TAIL BOOM ASSEMBLY Box 2, Bag for page 30 TAIL BOOM ASSEMBLY To fit the tail belt, loosen the tail boom by loosening the 2 M3 screws (Fig.1). *Install the belt onto the tail front pulley, checking the direction of rotation. *Rotate the tail drive several times by hand.
  • Page 32 TAIL BOOM ASSEMBLY Box 2, Bag for page 31 Before installing the plastic link on the threaded rod, be sure that you have waited at least 12 hours for the glue to fully cure. Plastic Ball Link Plastic Ball Link (H0066-S) (H0066-S) Approx 749mm...

  • Page 33: Tank Assembly

    TANK ASSEMBLY Box 2, Bag for page 32 TANK LINE ASSEMBLY TANK GROUP ASSEMBLY Fuel Clunk Filter Tube 2.4x Fuel Rubber Fuel Nipple [H0705] [HC475] [HC474] [H0708] [H0706] Finishing Washer M3 (H0007-S) Aprrox 106mm NOTE: Install the fuel grommet into the tank, then gently insert the Tank Column Mount fuel nipple into the grommet.
  • Page 34 INSTALLATION BATTERY/FBL/RX Box 2, Bag for page 33 FBL PLATE ASSEMBLY NOTE: 2mm thick tape for the gyro is recommended. Note: Tighten carefully. Note: Tighten carefully. Overnightening can Overnightening can damage the screws. damage the dampeners. Flat Head Cap Flat Head Cap Screws M2.5x8mm Screws M3x5mm GENERAL FBL POSITION...
  • Page 35 INSTALLATION BATTERY/FBL/RX Box 2, Bag for page 34 Zip Tie Zip Tie Button Cap Screw Special M2.5x6mm (HC019-S) Wire Support (H1107-S) Finishing Washer M3 NOTE: (H0007-S) You will need to cut about 60mm off the front of the wire support. Socket Head Cap Screws M3x10 (HC056-S) NOTE:...
  • Page 36 INSTALLATION BATTERY/FBL/RX Box 2, Bag for page 35 Wire Support In bag 35, you can find a “3D Printed” antenna support. (H1444-S) Use it as desired with your RX system. Antenna Support [H1134] SERVO WIRES Double Side-Tape (HA035-S) Wire Support Velcro Tape (H1444-S) (HA045-S)
  • Page 37 INSTALLATION CANOPY Box 2, Bag for page 36 CANOPY Socket Head Cap Screw M3x12mm *Put canopy and move as (Figure.1) and installation screw (Figure.2) (HC062-S) Finishing Washer M3 (H0007-S) Canopy Nitro Raw (H1424-S) Finishing Washer M3 (H0007-S) Socket Head Cap Double Screw M3x12mm side Tape...
  • Page 38 IN FLIGHT Box 2, Bag for page 37 OPERATIONS BEFORE FLIGHT Socket Head Cap *Set up the remote control and the flybarless system with utmost care. Shoulder M5x30mm (HC114-S) *It is advisable to test the correct settings of the remote and flybarless system without main blades or tail blades fitted.

  • Page 39: Maintenance

    MAINTENANCE MAINTENANCE Take a look at the red parts. Check them frequently. All other parts are not particularly subject to wear. The lifespan of these components varies according to the type of flying. On average it is recommended to check these parts every 20 flights. In some instances, based on wear, these parts should be replaced every 100 flights. Periodically lubricate the tail slider movement and its linkages as well as the swash plate movement and its linkages.

  • Page 40: Transmission Module

    TRANSMISSION MODULE TRANMISSION MODULE MAIN SHAFT REPLACEMENT The transmission module is supplied assembled and verified, ready to be used. For replacing the main shaft: Explode and Spare Parts *Remove the serial number plate Main Shaft Use SAB HA076 NOTE: *Remove the M4 screw (H1330-S) Grease inside the module.
  • Page 41 CHECK LIST Check the dampening on the main and Tighten the main blades before flight. Check main hub screws(M4 and 2 M2.5) Check all Fuel Line tail rotor to be the same as always. Ensure they are tight. (Good connection). Check Tail &...

  • Page 42: Spare Parts

    SPARE PARTS Finishing Washer M3 Spacer Uniball M2 5H6 Uniball M3x4 5H3 Plastic Ball Link Servo Spacer [H0007-S] [H0062-S] [H0064-S] [H0065-S] [H0066-S] [H0075-S] - 5 x Uniballs M2. - 5 x Uniball Spacers. - 5 x Head Cap Screws M2x8. - 10 x Finishing Washers M3.
  • Page 43 SPARE PARTS Servo Mount SAB Fuel Sucker SAB Fuel Nipple SAB Fuel Stop Main Linkage [H0251-S] [H0705-S] [H0708-S] [H0715-S] [H0722-S] - 1 x Fuel Clunk. - 1 x Tube 2.4x 4.5x106. - 1 x Fuel Nipple. - 2 x SAB Fuel Stop. - 2 x Main Linkage.
  • Page 44 SPARE PARTS Carbon Rod Support Tail Pulley 22T Tail Shaft Bell Crank Base Main Shaft [H1310-S] [H1312-22-S] [H1313-S] [H1314-S] [H1330-S] - 1 x Main Shaft. - 1 x Tail Shaft. - 1 x Shoulder Screw M4x30. - 1 x Carbon Rod Support. - 1 x Tail Pulley 23T.
  • Page 45 SPARE PARTS Main Frame Front Boom Block Boom Block Block NUT M3 Tail Bell Crank Lever [H1359-S] [H1304-S] [H1372-S] [H1386-S] [H1393-S] - 1 x Uniball M2. - 1 x Front Boom Block. - 1 x Boom Block. - 1 x Uniball M3. - 2 x Socket Screws M3x10.
  • Page 46 SPARE PARTS [HC004-S] [HC008-S] [HC018-S] [HC019-S] [HC020-S] [HC022-S] [HC026-S] [HC032-S] - 8 x Socket Head Cap - 8 x Socket Head Cap - 8 x Socket Head Cap - 8 x Button Head Cap - 8 x Socket Head Cap - 8 x Socket Head Cap - 8 x Socket Head Cap - 8 x Socket Head Cap...
  • Page 47 SPARE PARTS [HC400-S] [HC402-S] [HC403-S] [HC412-S] [HC416-S] [HC417-S] [HC424-S] [HC425-S] - 4 x Flanged Bearing - 4 x Flanged Bearing - 4 x Ball Bearing - 2 x Flanged Bearing - 4 x Flanged Bearing - 2 x Ball Bearing - 2 x Ball Bearing - 2 x Ball Bearing 2.5x...
