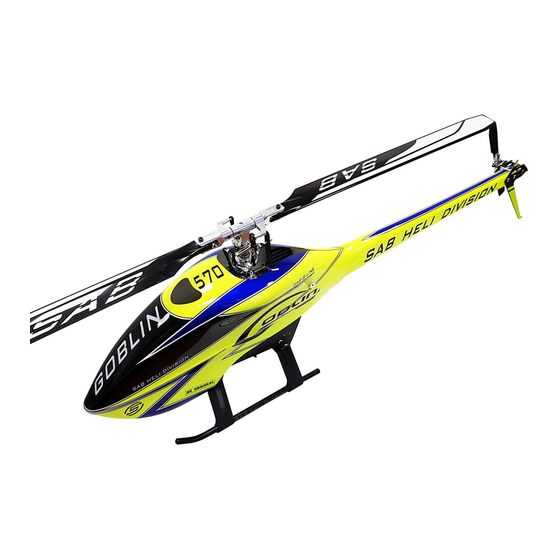

SAB Heli Division Goblin 570 Sport Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for SAB Heli Division Goblin 570 Sport

Summary of Contents for SAB Heli Division Goblin 570 Sport

  • Page 2 Goblin 570 Sport Manual Release 1.0 - March 2018 WORLD DISTRIBUTION www.goblin-helicopter.com For sales inquiries, please email: sales@goblin-helicopter.com For info inquiries, please email: support@goblin-helicopter.com Attention: If you are a consumer and have questions or need of assistance, please contact in a first time the Goblin retailer where you made the purchase EUROPEAN DISTRIBUTION www.sabitaly.it...

  • Page 3: Specifications

    SAB Heli Division cannot be held responsible for issues arising with your model and will not provide support unless you register your serial number.

  • Page 4: Chapter 2, Important Notes

    SAB Heli Division to be defective In the event of a defect, this is the Purchaser’s exclusive remedy. Replacement decisions are at the sole discretion of SAB Heli Division. This warranty does not cover cosmetic damage or damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or modification of or to any part of the Product.

  • Page 5: Additional Components Required

    Chapter 3, In The Box ADDITIONAL COMPONENTS REQUIRED TOOLS, LUBRICANTS, ADHESIVES *Electric Motor: 6S–1000/1400 Kv, 12S–500/700 Kv *Generic pliers maximum diameter 52mm, maximum height 56mm, *Hexagonal driver, size 1.5, 2, 2.5, 3, 4 mm pinion shaft diameter 5 - 6mm ( 6mm is suggested ) *4mm T-Wrench *5.5mm Socket wrench (for M3 nuts) *Speed controller: 6S minimum 100A, 12S minimum 80A...

  • Page 6: Carbon Frame

    Chapter 4, Carbon Frame 4-Carbon Frame The manufacturing process of the carbon parts often leaves micro-burrs and sharp edges. We recommend de-burring the edges to minimize the risks of electrical wire cuts, etc. Very Important in red line zone. Page 4...
  • Page 7 Chapter 4, Carbon Frame Bag 1.1, A, E, Foams 2, 3 Right Main Frame Assembly Battery Support Assembly Battery Support Dx Spacer 54mm (H0312_B-S) Battery Block Main Frame (H0239-S) (H0256-S) (H0955-S) Button Head Cap Screw M2x5mm Battery Support Sx (HC005-S) (H0312_A-S) Right Main Frame Assembly...
  • Page 8 Chapter 4 ,Carbon Frame Bag 1.2, D Landing Gear ROD Assembly ...x2 Landing Gear Plug [H0945] Landing Gear ROD (H0944-S) Use a drop of CA Landing Gear Plug [H0945] Use a drop of CA Plastic Landing Gear Plastic Landing Gear (H0943-S) (H0943-S) Finishing...
  • Page 9 Chapter 4 , Carbon Frame Bag 1.2 Landing Gear ROD Assembly NOTE Approx 40-42mm Set Screw M4x6mm (HC153-S) Page 7...

  • Page 10: Chapter 5, Transmission Assembly

    Chapter 5, Transmission Assembly Bags 2.1, 2.2, 2.3, Foams 2, 3 Bearing 16x5mm 18T Pinion (HC419-S) (H0949-S) Bearing 19x5mm Socket Head Cap Screw (HC422-S) Shouldered M2.5x15mm (HC031-S) Column Metric Hex (H0263-S) Nylon Nut M2.5 Column Secondary Shaft (HC200-S) (H0263-S) (H0294-S) Main Structure Main Shaft (H0212-S)
  • Page 11 Chapter 5, Transmission Assembly Bags 2.4, 2.5, Foam 3 60T Pulley Assembly Swashplate Anti- Rotation Guide Bearing (H0401-S) 15x4mm (HC420-S) One Way Bearing 14x12mm (HC442-S) 60T Pulley Socket Head Cap (H0295-S) Screw M2.5x8mm (HC020-S) Bearing 15x4mm (HC420-S) Finishing Washer M2.5 (H0255-S) Sensor Support (H0224-S)

  • Page 12: Chapter 5, Tranmission Assembly

    Chapter 5, Tranmission Assembly Bags 3.1, 3.2, Foam 3 Metric Hex Nylon Nut M4H5 (HC212-S) Bushing 6x18mm (H0266-S) Washer 4.3x 11x1mm (Needed with 5 mm motor shaft) (HC184-S) Set Screw Spring de 5 / df 0.3 / LL6 21T Pulley M4x4mm (HC316-S) (H0215-21-S)

  • Page 13: Chapter 6, Main Rotor Assembly

    Chapter 6, Main Rotor Assembly 6-Main Rotor Page 11...
  • Page 14 Chapter 6, Main Rotor Assembly Bag 4, Foam 1 Uniball Radius Arm ... x 2 Radius Arm ... x 2 Center Hub Assembly Assembly Assembly Oring (HC330-S) Spacer Arm Radius Arm 2.5x4x6.3mm (H0204-S) Spindle (H0253) (H0213-S) Spacer Arm 2.5x4x3mm (H0254) Center Hub (H0206-S) Flanged Bearing...
  • Page 15 Chapter 7, Installation Of Servos Bags 5.1, 5.2, Foam 2 Tail Servo Assembly Socket Head Cap CF Tail Servo Support Screw M2.5x10mm (H0289-S) (HC022-S) Tail Servo Assembly Socket Head Cap Screw M2.5x8mm (HC020-S) Tail Servo Tail Servo Block (H0392-S) Tail Servo Assembly The distance between the center of the horn and the ball should be between 15-18 mm.

  • Page 16: Chapter 7, Installation Of The Servos

    Chapter 7, Installation Of The Servos Bags 5.3, 5.4 Installation Of The Swashplate Servos The distance between the center of the horn and the ball should be between 16-18 mm). Select the carbon fiber servo mount that is suitable for the size of servos to be used. 16-18mm H0308 Servo Mounting...

  • Page 17: Chapter 8, Assembling The Modules

    Chapter 8, Assembling The Modules Bags 5.5, 5.6 Swashplate Assembly Uniball (H0063-S) Swashplate Metric Hex Assemly Nylon Nut M3 (H0477-S) (HC206-S) Socket Head Cap Uniball Screw M2.5x12mm (H0065-S) (HC026-S) Socket Head Cap Screw M2.5x12mm (HC026-S) Socket Head Cap Screw Shouldered M3x20mm (HC082-S) Swashplate Assemly...

  • Page 18: Chapter 9, Installation Of The Motor

    Pinion = ratio 9:1 H0215-24-S-24T Pinion = ratio 8.5:1 These are pulleys for motors with a 6 mm shaft. Each pulley includes an adapter for motors with a 5 mm shaft. Some example configurations: GOBLIN 570 SPORT CONFIGURATIONS Performance Battery Motor Pinion...

  • Page 19: Motor Belt Tension

    Chapter 9, Installation Of The Motor Bag 6.1 Motor Belt Tension - Install the motor and pulley to the motor mount plate. - Place the motor assembly in position. - Compress the springs by pushing the motor towards the main shaft. - At max compression, tighten one of the slide screws temporarily.

  • Page 20: Chapter 10, Installation Of The Esc

    Chapter 10, Installation Of The ESC De-Burr The Side Frames We recommend de-burring the edges of the carbon parts in areas where electrial wires run. See Page 4. ESC Installation The electronic speed control (ESC) is intalled in the front part of the helicopter. You can easily fasten the ESC with cable ties as shown in figures 1 and 2.
  • Page 21 Chapter 11, Installation of FBL & RX Bags 6.2, 6.3 FBL System Installation We recommend the use of a one unit flybarless system, i.e. Mini vBar, Microbeast, etc. However, a two unit flybarless system can also be installed. For one unit systems, the unit is installed as shown in position 1. See Fig 1,2,3. Position 2 and 3 can be used for RX System.

  • Page 22: Chapter 12, Tail Assembly

    Chapter 12, Tail Assembly Bags 7.1, 7.2, Foam 1 Tail Rotor Hub Assembly Tail Pitch Slider Assembly Tail Hub Tail Pitch Slider 02 Tail Pitch Slider 01 [H0228] [H0232] [H0231] Oring (HC334-S) Spindle Shaft (H0220-S) Flanged Bearing 11x3mm Tail Shaft (HC416-S) (H0227-S) Tail Pitch Slider 03...
  • Page 23 Chapter 12, Tail Assembly Bags 7.3, 7.4, 7.5, 7.6, 7.7, 7.8 Tail Side Plate Assembly Bell Crank Lever Assembly Flanged Bearing Bell Crank Support 2.5x 6x2.5mm (H0229-S) Socket Head Cap Tail Pin (HC400-S) Screw M2.5x6mm (H0264-S) (HC018-S) Spacer Arm Socket Head Cap 2.5x 4x6.3mm Screw M2.5x8mm...

  • Page 24: Chapter 13, Boom Assembly

    Chapter 13, Boom Assembly Bags 7.9, 7.10, 7.11 Tail Boom Assembly Yellow Tail Boom (H0962-S) Orange Tail Boom (H0964-S) DETAIL A Double Sided Tape [HA022] Locking Element Tail Assembly (H0249-S) DETAIL C DETAIL B Block Nylon Screws Install H0394-S On The Boom (H0296-S) Before mounting H0394 on the boom, we recommend to first Boom Block...

  • Page 25: Chapter 13, Installation Of The Boom

    Chapter 13, Installation of the Boom Bag 7.12 Installation Of The Boom [H0287] - Insert the boom in place helping enlarging the frame ( Fig 1,2 ). - Push the boom forward until the nylon bolts bottom out against the end of the slot on the boom.

  • Page 26: Chapter 14, Battery

    Chapter 14, Battery Bag 8 Batteries * Follow the figure for assembly the battery. You can see 6S solution (fig 1,2,3,4 ) and 12 S solution ( fig 5,6,7,8 ). * With 12S configuration, it is recommended to orient down the wires in the front battery (Fig 7). * Before permanently mounting the batteries onto the battery tray, check the ideal position for the best center of gravity.
  • Page 27 Chapter 15, Canopy & Serial Number Bag 9 CANOPY - The canopy touches the frames on the Goblin, this is normal and expected as it is part of the design. To avoid canopy damage due to high frequency vibration, it is necessary to attach the adhesive foam tape HA006 to the canopy. [Bag 9] (Fig 2). - Install the canopy grommets [Bag 9] as shown in Figure 2.
  • Page 28 Chapter 16, In Flight / Maintenance Bag 10 OPERATIONS BEFORE FLIGHT *Set up the remote control and the flybarless system with utmost care. *It is advisable to test the correct settings of the remote and flybarless system without main blades or tail blades fitted. *Check that all wiring is isolated from the carbon/aluminum parts.

  • Page 29: Chapter 17 , Spare Parts

    Chapter 17 , Spare Parts Finishing Washer M3 Spacer Ø7 X Ø9 X 0,5 Uniball Goblin M3Ø5H18 Uniball Goblin M2Ø5H3.5 Uniball Goblin M3Ø5H3.5 [H0007-S] [H0062-S] [H0063-S] [H0064-S] [H0065-S] - 5 x Uniball M2. - 5 x Uniball Spacer. - 5 x Head Cap Screw M2x8. - 10 x Finishing Washer M3.
  • Page 30 Chapter 17 , Spare Parts Canopy Positioner Tail Spindle Main Shaft Spacer Main Shaft [H0217-S] [H0220-S] [H0222-S] [H0223-S] - 1 x Main Shaft. - 2 x Metrix Hex Nylon Nut M3H4. - 1 x Spacer Main Shaft. - 1 x Tail Spindle. - 1 x Socket Head Cap Shoulder M3x20mm.
  • Page 31 Chapter 17 , Spare Parts One Way Pulley Block Nylon Screws Tail Side Plate 28T Front Tail Pulley [H0295-S] [H0296-S] [H0297-S] [H0304-S] - 1 x One Way Pulley. - 1 x One Way Bearing 14x12. - 1 x Block Nylon Screws. - 1 x Front Tail Pulley.
  • Page 32 Chapter 17 , Spare Parts Tail Belt Tensioner Main Frame Tail Fin use for G500/G570 [H0955-S] [H0956-S] [H0946-S] - 1 x Ilder Tensioner. - 1 x Column Tensioner. - 1 x Ilder Support. - 1 x Spring. - 2 x Flanged Bearing 7x3mm.
  • Page 33 Chapter 17, Spare Parts [HC014-S] [HC002-S] [HC004-S] [HC005-S] [HC008-S] - 5 x Socket Head Cap - 5 x Socket Head Cap - 5 x Button Head Cap - 5 x Socket Head Cap - 5 x Socket Head Cap Screws M2x5mm. Screws M2x6mm.
  • Page 34 Chapter 17, Spare Parts [HC316-S] [HC330-S] [HC346-S] [HC349-S] - 2 x Springs de 3 / df 0.53 / LL35. - 4 x Damper Orings HC330. - 2 x Springs de 5 / df 0.3 / LL6. - 2 x Damper Orings HC334. - 1 x Motor Belt 240-3GT-09.

  • Page 35: Upgrades And Accessories

    Black Polo Shirt Black Hoodies New Black T-shirt [HM025-S-M-L-XL-XXL] [HM027-S-M-L-XL-XXL] [HM029-S-M-L-XL-XXL] - SAB HELI DIVISION New Black T-shirt. - SAB HELI DIVISION Black Polo Shirt. - SAB HELI DIVISION Black Hoodies. SAB TOOL KIT SAB Goblin 500/570 Carry Bag [HM054-S]...
