Five mounting points
4 4 4
Steel
45°
Cables (4)
2 2 2
45°
2" min.

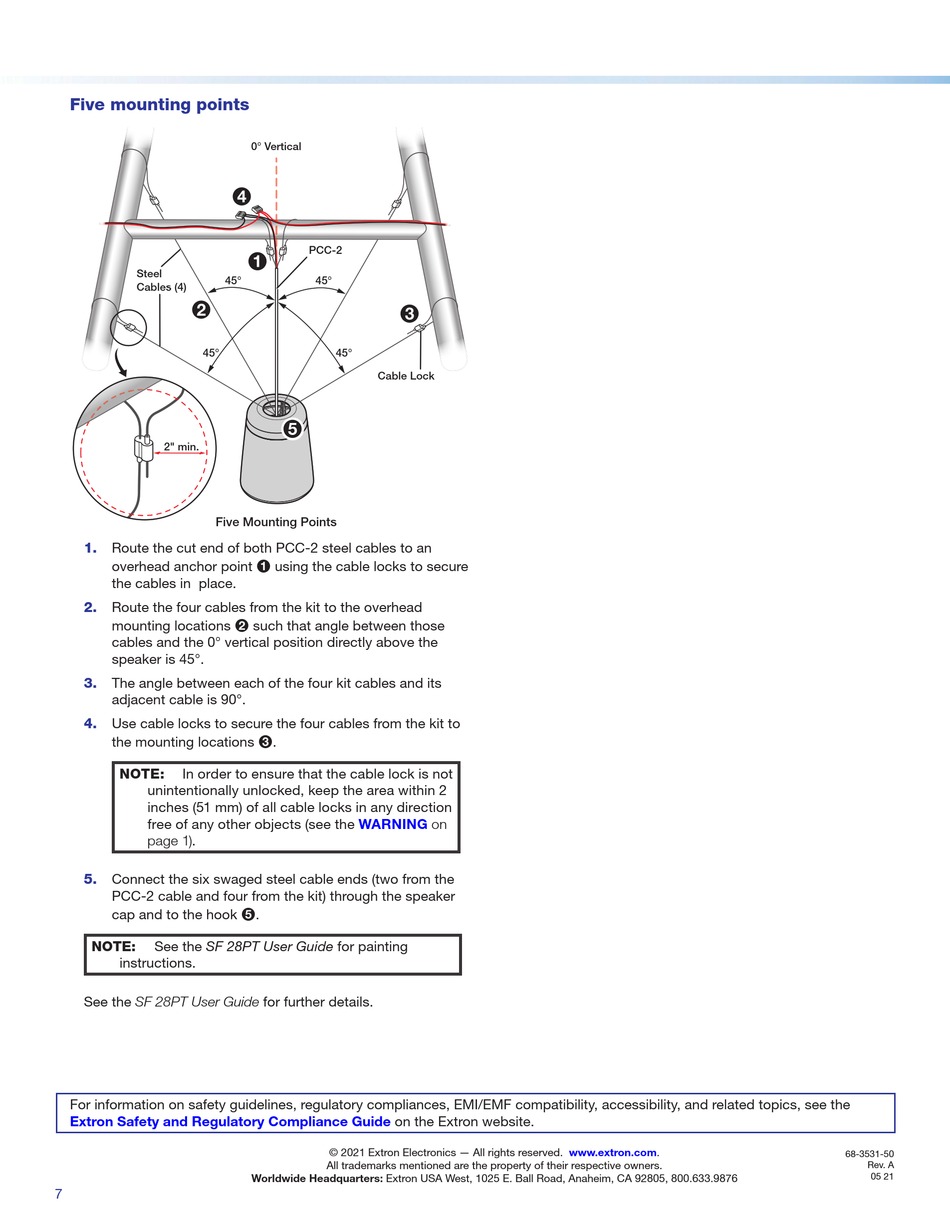

Five Mounting Points
1.
Route the cut end of both PCC-2 steel cables to an
overhead anchor point
the cables in place.
2.
Route the four cables from the kit to the overhead
mounting locations
cables and the 0° vertical position directly above the
speaker is 45°.
3.
The angle between each of the four kit cables and its
adjacent cable is 90°.
4.
Use cable locks to secure the four cables from the kit to
the mounting locations
NOTE:
In order to ensure that the cable lock is not
unintentionally unlocked, keep the area within 2
inches (51 mm) of all cable locks in any direction
free of any other objects (see the
page 1).
5.
Connect the six swaged steel cable ends (two from the
PCC-2 cable and four from the kit) through the speaker
cap and to the hook
NOTE:
See the SF 28PT User Guide for painting
instructions.
See the SF 28PT User Guide for further details.
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and Regulatory Compliance Guide
7
0° Vertical
PCC-2
1 1 1
45°
3 3 3
45°
Cable Lock
5 5 5
using the cable locks to secure
1
such that angle between those
2
.
3
WARNING
.
5
on the Extron website.
© 2021 Extron Electronics — All rights reserved. www.extron.com.
All trademarks mentioned are the property of their respective owners.
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
on
68-3531-50
Rev. A
05 21
