System Architecture

System Architecture
2-2
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
This section describes the processor's configuration on the EZ-KIT Mini
board (Figure 2-1).
24 MHz
crystal
25 MHz
crystal
USB mini ICE-
B 1000
ADP7102
1.1V
5V
ADP171
3.3V

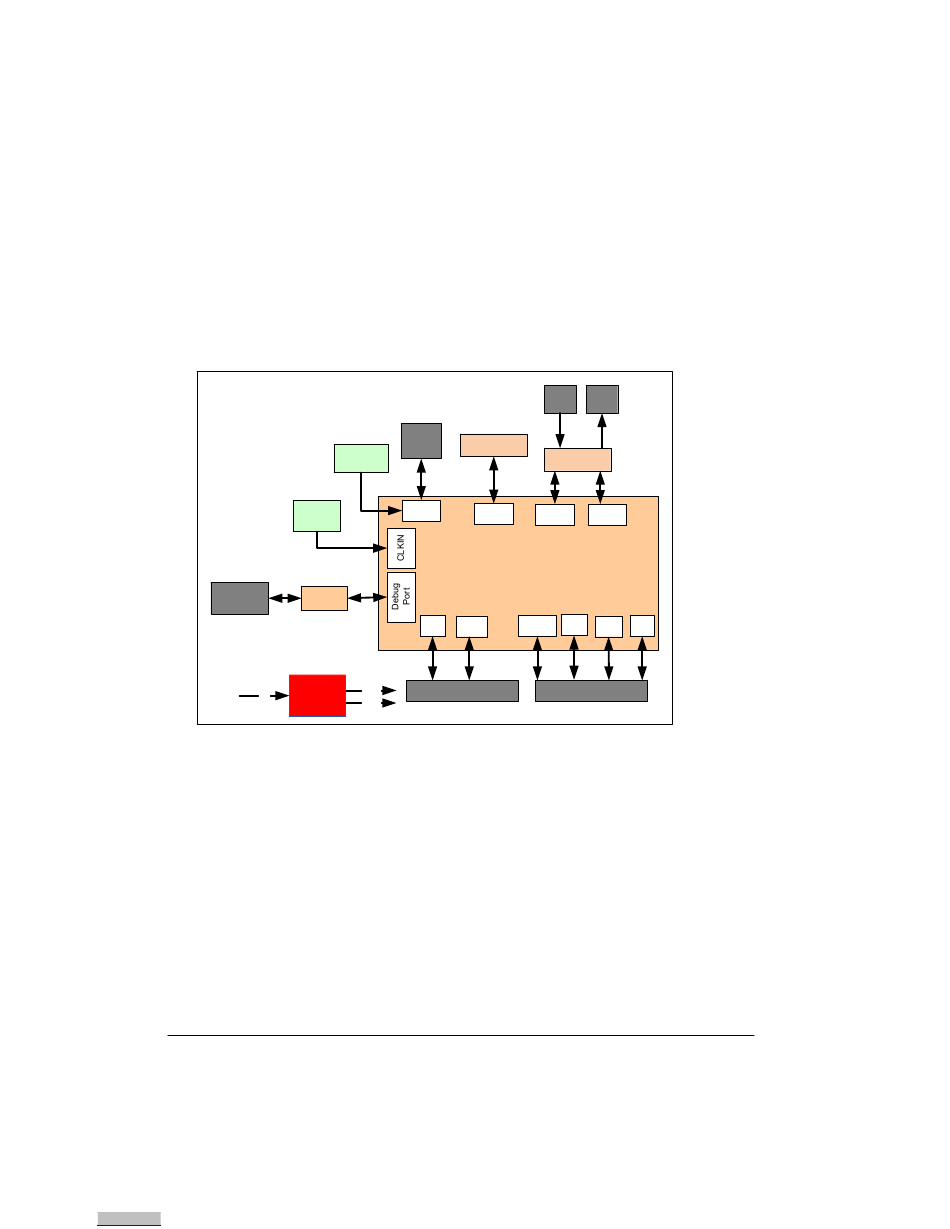

Figure 2-1. EZ-KIT Mini Block Diagram
This EZ-KIT Mini is designed to demonstrate the ADSP-BF706 proces-
sor's capabilities. The ADSP-BF706 EZ-KIT Mini has a 25 MHz input
clock and runs at 400 MHz internally.
USB circuitry and a micro USB AB connector are provided for connecting
to the EZ-KIT Mini as a host or a device. The frequency for the USB cir-
cuit is generated by an external 24 MHz crystal.
User I/O to the processor is provided in the form of one user push button
and one LED. See ADSP-BF706 EZ-KIT Mini Schematic
information.
ADSP-BF706 EZ-KIT Mini Evaluation System Manual
3.5mm
in
USB
32 Mbit Quad
micro AB
SPI Flash
ADAU1761
USB0
SPI2 SPT0
ADSP-BF706
QFN 400MHz
SPI1 SPT1 TMR
GPIO
0.1" holes 0.1" holes
3.5mm
HP out
TWI
TWI
EPPI0
for more
