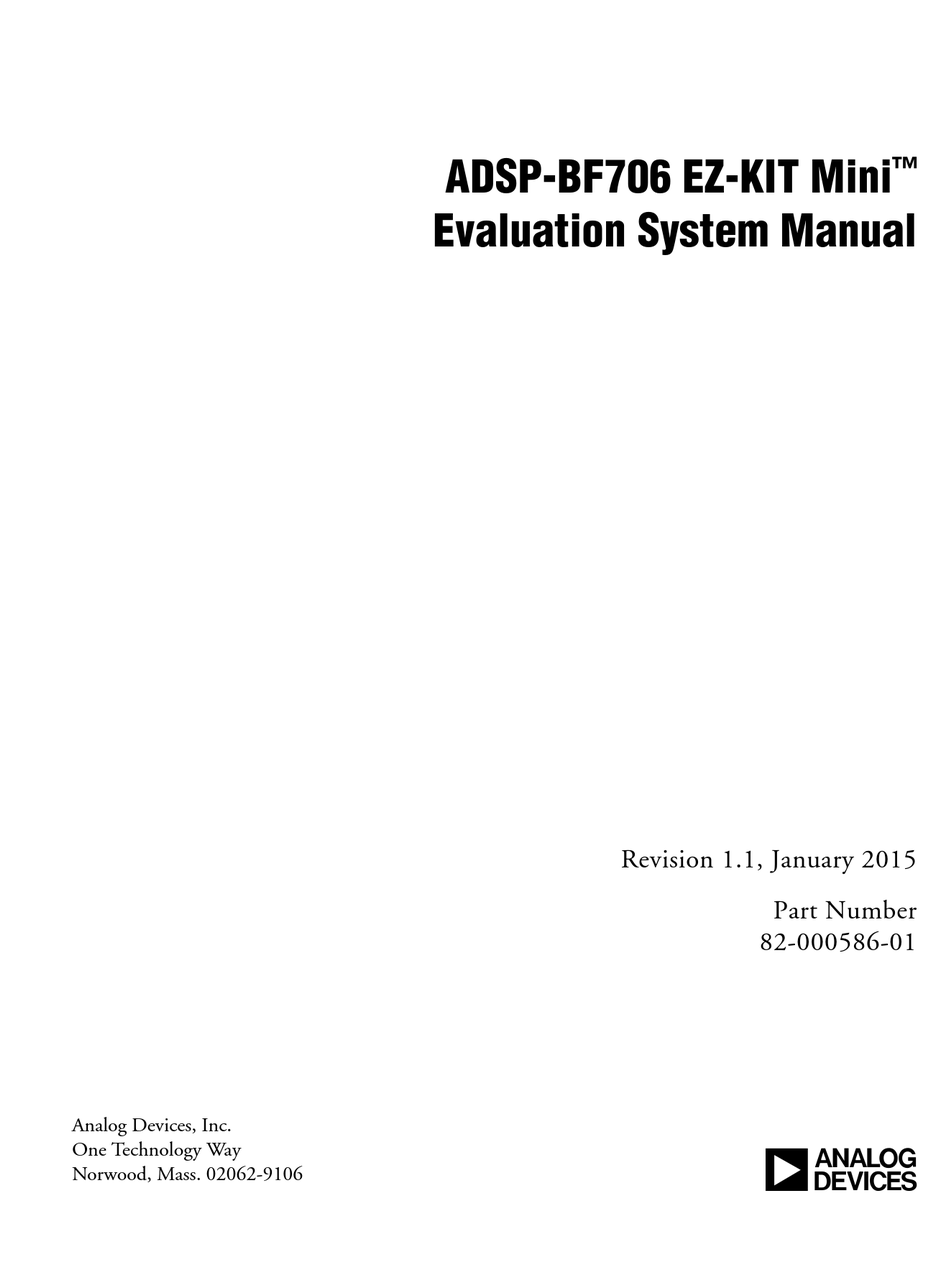

- Page 1 ™ ADSP-BF706 EZ-KIT Mini Evaluation System Manual Revision 1.1, January 2015 Part Number 82-000586-01 Analog Devices, Inc. One Technology Way Norwood, Mass. 02062-9106...
- Page 2 Analog Devices, Inc. Printed in the USA. Disclaimer Analog Devices, Inc. reserves the right to change this product without prior notice. Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use;...
- Page 3 Regulatory Compliance The ADSP-BF706 EZ-KIT Mini is designed to be used solely in a labora- tory environment. The board is not intended for use as a consumer end product or as a portion of a consumer end product. The board is an open system design which does not include a shielded enclosure and therefore may cause interference to other electrical devices in close proximity.
-
Page 5: Table Of Contents
Analog Devices Website ............. xv EngineerZone ................xvi Notation Conventions ..............xvi USING ADSP-BF706 EZ-KIT MINI Package Contents ................1-2 ADSP-BF706 EZ-KIT Mini ............1-2 Default Configuration ..............1-3 EZ-KIT Mini Installation .............. 1-4 ADSP-BF706 EZ-KIT Mini Evaluation System Manual... - Page 6 Evaluation License ................ 1-7 SPI Flash ..................1-8 Audio Codec ................1-8 USB Interface ................1-8 ADSP-BF706 EZ-KIT Mini for Arduino Uno R3 Connectivity ..1-9 External Connection Points ............1-9 Debug Interface ................1-9 Power-On-Self Test ..............1-10 Power Architecture ..............1-10 Power Measurements ..............
- Page 7 Status LED (ZLED1) .............. 2-7 Connectors ................... 2-8 USB Connector (P8) ............... 2-9 USB Connector (ZP1) ............. 2-9 Audio Connectors (J1-2) ............2-9 ADSP-BF706 EZ-KIT MINI BILL OF MATERIALS ADSP-BF706 EZ-KIT MINI SCHEMATIC INDEX ADSP-BF706 EZ-KIT Mini Evaluation System Manual...
- Page 8 Contents viii ADSP-BF706 EZ-KIT Mini Evaluation System Manual...
-
Page 9: Preface
PREFACE Thank you for purchasing the ADSP-BF706 EZ-KIT Mini™, Analog Devices, Inc. low-cost evaluation system for the ADSP-BF706 Blackfin® processors. The ADSP-BF706 processor is a member of the Blackfin family of prod- ucts. Blackfin processors combine a dual-MAC state-of-the-art signal... -
Page 10: Product Overview
• 88-Lead LFCSP (QFN) package • 25 MHz CLKIN core crystal • Quad SPI Flash (SPI2) • 32M bit serial flash memory • Winbond W25Q32 • Audio • ADAU1761 low-power stereo codec • Line-in • Headphone ADSP-BF706 EZ-KIT Mini Evaluation System Manual... - Page 11 (amber), and one debug status (multi-colored) • Push buttons • Two push buttons: one reset and one IRQ/Flag • External connection point connectors • EPPI0 • SPORT • TWI • TMR • GPIOs • USB bus-powered ADSP-BF706 EZ-KIT Mini Evaluation System Manual...
-
Page 12: Purpose Of This Manual
Intended Audience The primary audience for this manual is a programmer who is familiar with Analog Devices processors. This manual assumes that the audience has a working knowledge of the appropriate processor architecture, instruction set, and C/C++ programming languages. -
Page 13: Manual Contents
ADSP-BF706 EZ-KIT Mini Hardware Reference Provides information about the EZ-KIT Mini hardware components. • Appendix A, ADSP-BF706 EZ-KIT Mini Bill Of Materials Provides a list of hardware components used to manufacture the EZ-KIT Mini board. • Appendix B, ADSP-BF706 EZ-KIT Mini Schematic Lists the resources for board-level debugging. -
Page 14: Technical Support
Technical Support Technical Support You can reach Analog Devices processors and DSP technical support in the following ways: • Post your questions in the processors and DSP support community at EngineerZone®: ez.analog.com/community/dsp • Submit your questions to technical support directly at: www.analog.com/support... -
Page 15: Supported Tools
Preface Supported Tools Information on supported tools for the ADSP-BF706 EZ-KIT Mini and the ADSP-BF70x family of Blackfin processors is available at: www.analog.com/BF706EZKitMini Product Information Product information can be obtained from the Analog Devices website and the CCES online help system. -
Page 16: Engineerzone
If you are a registered user, just log on. Your user name is your email address. EngineerZone EngineerZone is a technical support forum from Analog Devices. It allows you direct access to Analog Devices technical support engineers. You can search FAQs and technical information to get quick answers to your embedded processing and DSP design questions. - Page 17 A Warning identifies conditions or inappropriate usage of the product that could lead to conditions that are potentially hazardous for the devices users. In the online version of this book, the word Warning appears instead of this symbol. ADSP-BF706 EZ-KIT Mini Evaluation System Manual xvii...
- Page 18 Notation Conventions xviii ADSP-BF706 EZ-KIT Mini Evaluation System Manual...
-
Page 19: Using Adsp-Bf706 Ez-Kit Mini
• Evaluation License • SPI Flash • Audio Codec • USB Interface • ADSP-BF706 EZ-KIT Mini for Arduino Uno R3 Connectivity • External Connection Points • Debug Interface • Power-On-Self Test • Power Architecture ADSP-BF706 EZ-KIT Mini Evaluation System Manual... -
Page 20: Package Contents
• Example Programs • Reference Design Information Package Contents Your ADSP-BF706 EZ-KIT Mini package contains the following items. • ADSP-BF706 EZ-KIT Mini • USB Mini-B to Standard-A cable • Rubber feet in a bag • Release note Contact the vendor where you purchased your EZ-KIT Mini or contact Analog Devices, Inc. -
Page 21: Default Configuration
Using ADSP-BF706 EZ-KIT Mini Default Configuration The ADSP-BF706 EZ-KIT Mini board is designed to run as a standalone unit. When removing the EZ-KIT Mini board from the package, handle the board carefully to avoid the discharge of static electricity, which can dam- age some components. -
Page 22: Ez-Kit Mini Installation
Note: If you connect USB to the board before installing CCES on the PC, the Windows driver wizard may not find the board drivers. 1. Navigate to the CCES environment via the Start menu. Note that CCES is not connected to the target board. ADSP-BF706 EZ-KIT Mini Evaluation System Manual... - Page 23 The Select Platform page of the Session Wizard appears. 6. Choose the default ADSP-BF706 EZ-KIT via Debug Agent. 7. Click Finish to close the wizard. The new debug configuration is created and added to the Debug Configurations list. ADSP-BF706 EZ-KIT Mini Evaluation System Manual...
- Page 24 JTAG mode debugging only. To use SWD mode, a new platform needs to be created using the Target Configurator. When creating a new platform, choose BF706 EZ-KIT-Mini and then select JTAG or SWD. ADSP-BF706 EZ-KIT Mini Evaluation System Manual...
-
Page 25: Evaluation License
An evaluation license can be upgraded to a full license. Licenses can be purchased from: • Analog Devices directly. Call (800) 262-5645 or 781-937-2384 or go to: www.analog.com/buyonline • Analog Devices, Inc. local sales office or authorized distributor. To locate one, go to: www.analog.com/adi-sales ADSP-BF706 EZ-KIT Mini Evaluation System Manual... -
Page 26: Spi Flash
SPI2. SPI2 is connected to a Winbond W25Q32BC 32 Mb serial flash memory with dual and quad SPI support. This flash is used for booting and scratchpad space. The boot mode of the ADSP-BF706 EZ-KIT Mini is SPI master, which is set by resistors on the board. -
Page 27: Adsp-Bf706 Ez-Kit Mini For Arduino Uno R3 Connectivity
The connectors are standard 0.1" stackable headers that allow for more than one shield to be attached. Signal output from the Arduino Uno R3 board is buffered on the ADSP-BF706 EZ-KIT Mini to ensure that the voltage level is tolerant with the ADSP-BF706 processor. Output signals from the ADSP-BF706 processor drive at 3.3V to connectors... -
Page 28: Power-On-Self Test
POST. readme.html Power Architecture The ADSP-BF706 EZ-KIT Mini has two methods to power the board— through the debug agent’s USB mini connector ( ) or through the micro USB connector ( ) attached to the ADSP-BF706 processor. -
Page 29: Power Measurements
Using ADSP-BF706 EZ-KIT Mini If the ADSP-BF706 EZ-KIT Mini is acting as a USB host through con- nector and needs to supply power to a bus-powered device, install to allow the appropriate bulk capacitance. The voltage domains of the ADSP-BF706 EZ-KIT Mini are 3.3V ( VDD_ ) and 1.1V (... -
Page 30: Reference Design Information
A reference design info package is available for download on the Analog Devices website. The package provides information on the design, layout, fabrication, and assembly of the EZ-KIT Mini. The information can be found at: www.analog.com/BF706EZKitMini 1-12 ADSP-BF706 EZ-KIT Mini Evaluation System Manual... -
Page 31: Adsp-Bf706 Ez-Kit Mini Hardware Reference
Shows the locations and describes the LEDs. • Connectors Shows the locations and provides part numbers for the on-board connectors. In addition, the manufacturer and part number infor- mation is provided for the mating parts. ADSP-BF706 EZ-KIT Mini Evaluation System Manual... -
Page 32: System Architecture
Figure 2-1. EZ-KIT Mini Block Diagram This EZ-KIT Mini is designed to demonstrate the ADSP-BF706 proces- sor’s capabilities. The ADSP-BF706 EZ-KIT Mini has a 25 MHz input clock and runs at 400 MHz internally. USB circuitry and a micro USB AB connector are provided for connecting to the EZ-KIT Mini as a host or a device. -
Page 33: Push Buttons
The reset push button ( ) resets the processor ( ) and is available on connector GPIO Push Button (SW2) The GPIO push button ( ) is connected to the processor’s port PC_02 pin. ADSP-BF706 EZ-KIT Mini Evaluation System Manual... -
Page 34: Jumpers
Figure 2-3. Jumper Locations Power Jumpers (P14-15) Remove jumpers listed in Table 2-1 to measure the respective voltage across the adjacent sense resistor. Table 2-1. Power Jumpers Power Jumper Resistor VDD_INT VDD_EXT ADSP-BF706 EZ-KIT Mini Evaluation System Manual... -
Page 35: Debug Agent Jumper (Zjp1)
5V sourced via USB connector . When using this feature, install a jumper on prior to any USB cable insertion. insertion adds a bulk cap to the 5V supply connected to ADSP-BF706 EZ-KIT Mini Evaluation System Manual... -
Page 36: Leds
One LED is connected to the general-purpose I/O pins of the processor (see Table 2-2). The LED is active high and is (amber) by writing a the correct processor signal. Table 2-2. GPIO LED LED Reference Designator Processor Programmable Flag Pin LED0 PC_03 ADSP-BF706 EZ-KIT Mini Evaluation System Manual... -
Page 37: Reset Led (Led1)
Reset LED (LED1) When (red), it indicates that the master reset is active. The reset LED1 LED is controlled by the Analog Devices ADM6384 supervisory reset cir- cuit. A master reset is asserted by pressing which activates . For LED1... -
Page 38: Connectors
Not installed by default, these connectors are 0.1" stackable head- ers that are available online. Connectors , and are external connection points to processor sig- nals that are not installed by default. See ADSP-BF706 EZ-KIT Mini Schematic for more details. ADSP-BF706 EZ-KIT Mini Evaluation System Manual... -
Page 39: Usb Connector (P8)
Part Number USB Mini-B DIGI-KEY H11589CT-ND Mating Cable USB Mini-B to Standard-A cable Audio Connectors (J1-2) Part Description Manufacturer Part Number 3.5 mm stereo jack DIGI-KEY CP1-3515SJGRTR-ND Mating Connector 3.5 mm cable, headphone cable ADSP-BF706 EZ-KIT Mini Evaluation System Manual... - Page 40 Connectors 2-10 ADSP-BF706 EZ-KIT Mini Evaluation System Manual...
- Page 41 10UF 6.3V 10% 0805 C31,C32,C36,C37, 08056D106KAT2A 0.1UF 10V 10% 0402 C1,C6,C8-C10,C15, 0402ZD104KAT2A C17,C21 0.01UF 16V 10% 0402 C11-C14,C18-C20, 0402YC103KAT2A C22,C23,C26,C42, C43,C45 0.1UF 16V 10% 0603 C34,C35,C38,C39, 0603YC104KAT2A C41,C44,C54 10 1 0.033UF 25V 10% 0603 06033C333KAT2A ADSP-BF706 EZ-KIT Mini Evaluation System Manual...
- Page 42 27 1 47.5K 1/10W 1% 0603 DIGI-KEY 311-47.5KHRTR-ND 28 3 330.0 1/16W 1% 0402 R47,R51,R52 DIGI-KEY 541-330LCT-ND 29 9 100K 1/16W 5% 0402 R17,R19-R21,R41, DIGI-KEY 541-100KJTR-ND R42,R53,R60,R70 30 1 76.8K 1/16W 1% 0402 DIGI-KEY 541-76.8KLCT-ND ADSP-BF706 EZ-KIT Mini Evaluation System Manual...
-
Page 43: Adsp-Bf706 Ez-Kit Mini Bill Of Materials
ADSP-BF706 EZ-KIT Mini Bill Of Materials Reference Ref. Qty. Description Designator Manufacturer Part Number 31 3 10UF 6.3V 20% 0603 C7,C16,C24 DIGI-KEY 490-3896-2-ND 32 2 100UF 16V 20% CT2,CT3 DIGI-KEY 565-2204-2-ND CAPAE660 ELEC 33 1 600 200MA 0603 FER2 DIGI-KEY... - Page 44 VISHAY CRCW040210K0FKED R40,R46,R48-R50, R55,R56,R68, R72-R75,R77-R79 58 1 33 1/16W 5% 0402 VISHAY CRCW040233R0JNEA 59 1 1M 1/10W 5% 0603 VISHAY CRCW06031M00FNEA 60 1 30A GSOT05 SOT23-3 VISHAY GSOT05-E3-08 61 1 W25Q32 SO8W WINBOND W25Q32FVSSIG ADSP-BF706 EZ-KIT Mini Evaluation System Manual...
- Page 45 ADSP-BF706 EZ-KIT-MINI Schematic ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD Title ADSP-BF706 EZ-KIT-MINI Title Size Board No. A0586-2014 Date Sheet 10/17/2014...
- Page 46 3V_SLEEP "FAULT" PA_00/SPI1_CLK/TRACE0_D07/SMC0_ABE0 PC_00/UART1_TX/SPT0_AD1/EPPI0_D15 SPI1_CLK_3P3V GP_OUTPUT PA_01/SPI1_MISO/TRACE0_D06/SMC0_ABE1 PC_01/UART1_RX/SPT0_BD1/EPPI0_D14/SMC0_A09/TM0_ACI4 SPI1_MISO GP_INPUT_3P3V TP13 PA_02/SPI1_MOSI/TRACE0_D05/SMC0_AMS1 PC_02/UART0_RTS/CAN0_RX/EPPI0_D13/SMC0_A10/TM0_ACI5/SYS_WAKE3 SPI1_MOSI_3P3V PUSH_BUTTON 0402 0402 PA_03/SPI1_SEL2/SPI1_RDY/SMC0_ARDY PC_03/UART0_CTS/CAN0_TX/EPPI0_D12/SMC0_A11/TM0_ACI0 SPI1_RDY LED0 PA_04/SPI1_SEL1/TM0_TMR7/SPI2_RDY/SMC0_A08/SPI1_SS SPI1_SS_3P3V PC_04/SPT0_BCLK/SPI0_CLK/MSI0_D1/SMC0_A12/TM0_ACLK0 SPT0_BCLK 0402 SYS_FAULT PA_05/TM0_TMR0/SPI0_SEL1/SMC0_A07/SPI0_SS TM0_TMR0 PC_05/SPT0_AFS/TM0_TMR3/MSI0_CMD SPT0_AFS SYS_NMI PA_06/TM0_TMR1/SPI0_SEL2/SPI0_RDY/SMC0_A06 TM0_TMR1 PC_06/SPT0_BD0/SPI0_MISO/MSI0_D3 SPT0_BD0 SPT1_BTDV/SPT1_ATDV PA_07/TM0_TMR2/SPT1_BTDV/SPT1_ATDV/SMC0_A05/CNT0_DG PC_07/SPT0_BFS/SPI0_MOSI/MSI0_D2/TM0_ACI2 SPT0_BFS PA_08/EPPI0_D11/MSI0_CD/SPT1_ACLK/SMC0_A01 SPT1_ACLK PC_08/SPT0_AD0/SPI0_D2/MSI0_D0...
- Page 47 VDD_EXT GND0 USB0_VBUS_PWR_OUT GND1 VDD_EXT1 VDD_EXT2 VDD_EXT3 VDD_EXT4 0.33UF VDD_EXT5 ESDA5V3SC6 0603 VDD_EXT6 THERM 76.8K VDD_EXT7 0402 VDD_EXT8 1206 VDD_EXT9 SI2333DS VDD_INT VDD_EXT10 SOT23D USB0_VBUS_PWR_IN VDD_INT1 .033UF VDD_INT2 0603 0805 VDD_INT3 VBUS VDD_INT4 USB0_DM USB0_VBUS VDD_INT5 USB0_DP 3.3V "USB0" USB0_ID GND0 GND26 0805...
- Page 48 3V_SLEEP FER2 3V_SLEEP 0603 SPT0_ACLK BCLK 0402 10UF 0.1UF 0.1UF 0805 0603 0603 SPT0_BCLK 0402 SPT0_BFS LRCLK 0402 10UF 0.1UF 10UF 0.1UF IOVDD AVDD0 0805 0603 0805 0603 SPT0_AFS AVDD1 0402 DVDDOUT 22PF 22PF AGND0 0402 0402 DGND AGND1 100UF HP_LEFT_LOOP MICBIAS MICBIAS...
- Page 49 3V_SLEEP 3V_SLEEP 3V_SLEEP LED0 LED2 YELLOW GREEN LED_0603 LED_0603 "RESET" LED1 LED_0603 0402 LABEL "PB1" 330.0 330.0 0402 0402 0402 0402 0402 330.0 0402 PUSH_BUTTON 0402 MOMENTARY SW_ADTSMW64 RESET SYS_HWRST LED0 DA_TARGET_RESET ADM6384YKS29D1Z SN74LVC1G08 SC70_4 MOMENTARY 3V_SLEEP SW_ADTSMW64 "RESET" 0.01UF 0.01UF 0402 0402...
- Page 50 EZ-KIT Mini package, debug agent (ZJP1), diagram of locations, debug power (P14-15), agent jumper (ZJP1), power selection (JP2), interface, default configuration, of this EZ-KIT Mini, default jumper and switch settings, design reference information, 1-12 ADSP-BF706 EZ-KIT Mini Evaluation System Manual...
- Page 51 (ZP1), architecture, 1-10 interface, jumpers, listing, jumpers (P14-15), LED (LED2), measurements, 1-11 selection jumper (JP2), power-on-self test (POST), 1-10 product overview, push buttons, SW1 (reset), SW2 (GPIO), reset LED (LED1), push button (SW1), ADSP-BF706 EZ-KIT Mini Evaluation System Manual...
- Page 52 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Analog Devices Inc. ADZS-BF706-EZMINI...
