This section describes connector functionality and provides information
about mating connectors. The connector locations are shown in
Figure 2-5.

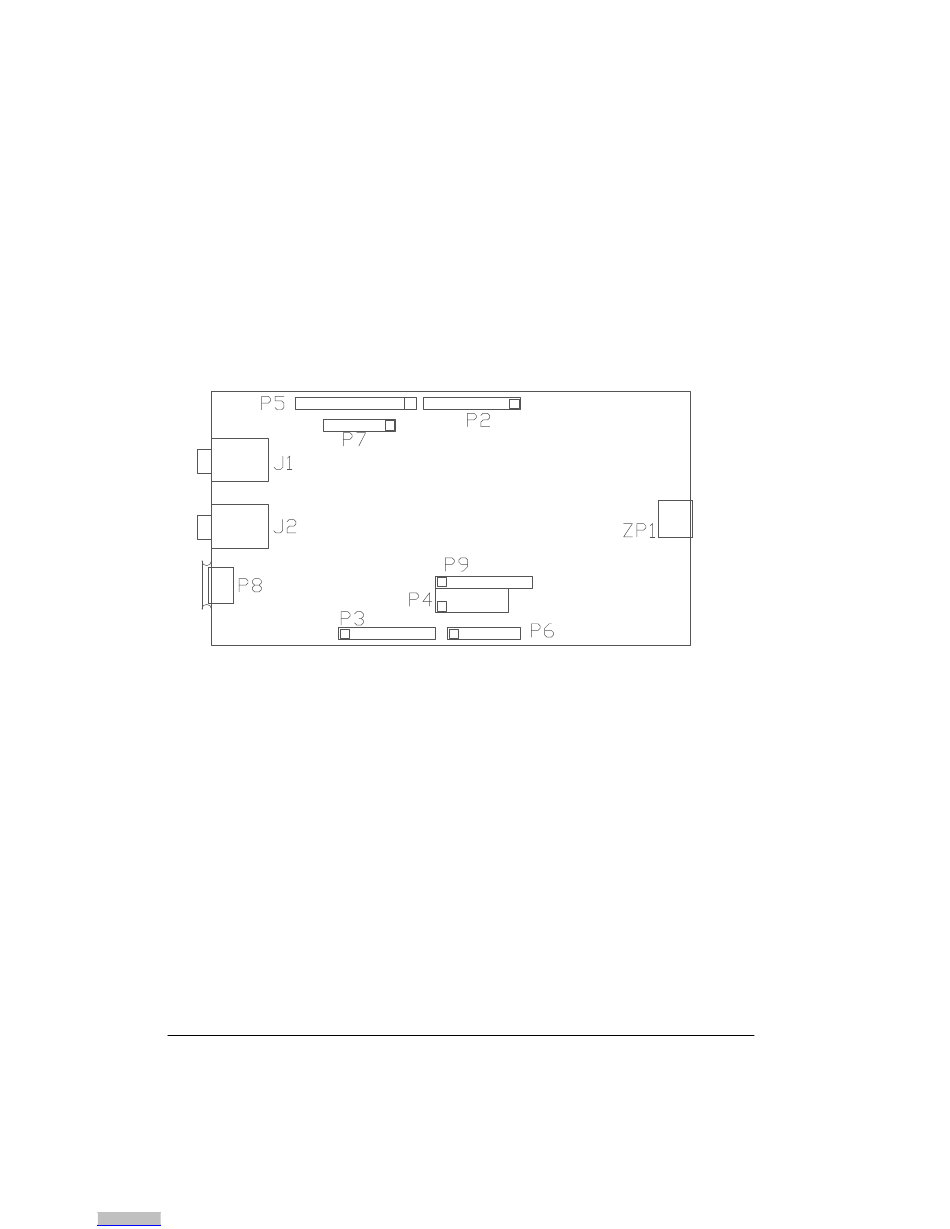

Figure 2-5. Connector Locations
Connectors , , , and
P2 P3 P5
boards. Not installed by default, these connectors are 0.1" stackable head-
ers that are available online.
Connectors , , and
P1 P4
nals that are not installed by default. See
Schematic for more details.
ADSP-BF706 EZ-KIT Mini Evaluation System Manual
allow interfacing with Arduino Uno Rev 3.0
P6
are external connection points to processor sig-
P9
