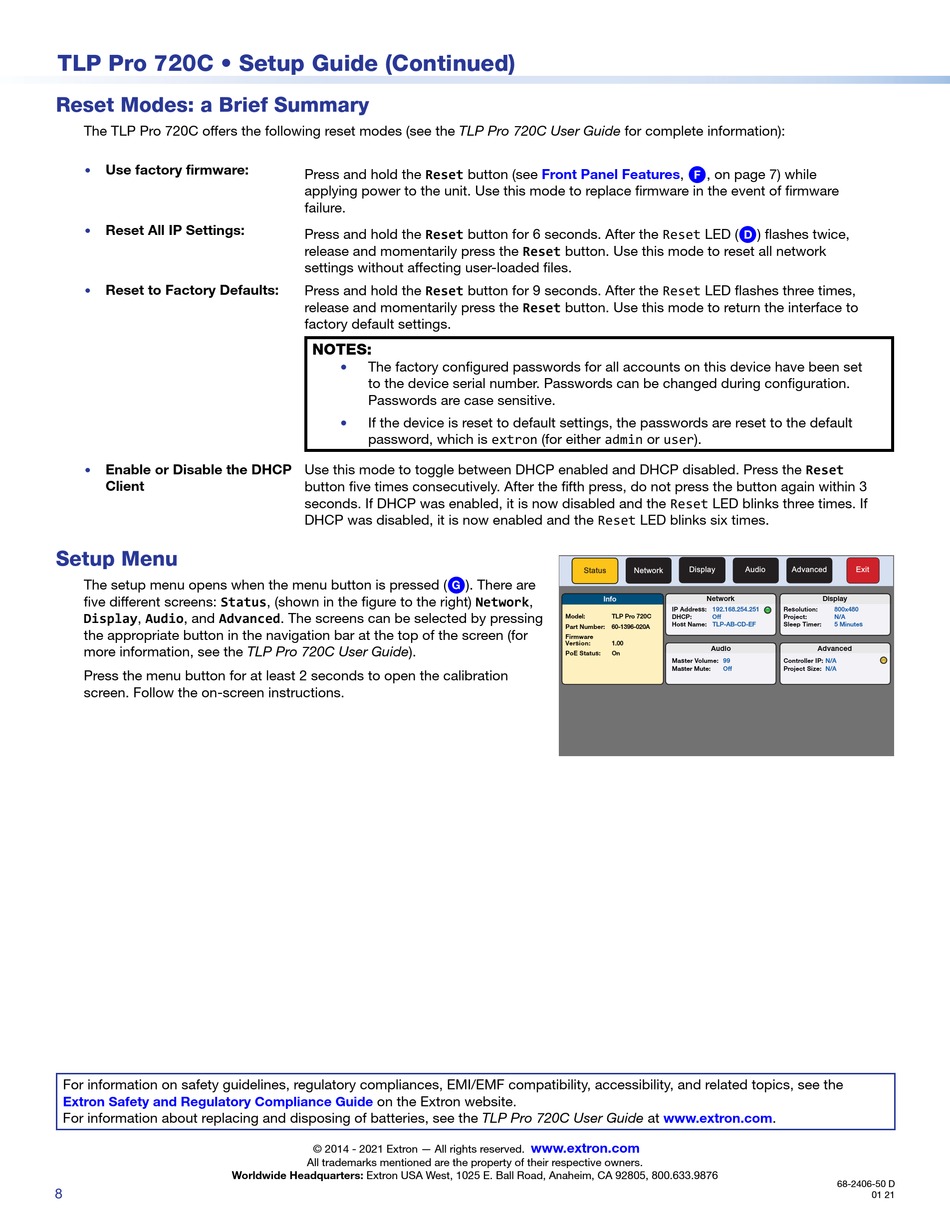

TLP Pro 720C • Setup Guide (Continued)

Reset Modes: a Brief Summary

The TLP Pro 720C offers the following reset modes (see the TLP Pro 720C User Guide for complete information):
Use factory firmware:
•
Reset All IP Settings:
•
Reset to Factory Defaults:
•
Enable or Disable the DHCP
•
Client

Setup Menu

The setup menu opens when the menu button is pressed (
five different screens: Status, (shown in the figure to the right) Network,
Display, Audio, and Advanced. The screens can be selected by pressing
the appropriate button in the navigation bar at the top of the screen (for
more information, see the TLP Pro 720C User Guide).
Press the menu button for at least 2 seconds to open the calibration
screen. Follow the on-screen instructions.
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and Regulatory Compliance Guide
For information about replacing and disposing of batteries, see the TLP Pro 720C User Guide at
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
8
Press and hold the Reset button (see
applying power to the unit. Use this mode to replace firmware in the event of firmware
failure.
Press and hold the Reset button for 6 seconds. After the Reset LED (
release and momentarily press the Reset button. Use this mode to reset all network
settings without affecting user-loaded files.
Press and hold the Reset button for 9 seconds. After the Reset LED flashes three times,
release and momentarily press the Reset button. Use this mode to return the interface to
factory default settings.
NOTES:
• The factory configured passwords for all accounts on this device have been set
to the device serial number. Passwords can be changed during configuration.
Passwords are case sensitive.
• If the device is reset to default settings, the passwords are reset to the default
password, which is extron (for either admin or user).
Use this mode to toggle between DHCP enabled and DHCP disabled. Press the Reset
button five times consecutively. After the fifth press, do not press the button again within 3
seconds. If DHCP was enabled, it is now disabled and the Reset LED blinks three times. If
DHCP was disabled, it is now enabled and the Reset LED blinks six times.
G ). There are
on the Extron website.
