TLP Pro 525T, 725T, and 1025T Series • Setup Guide
Overview

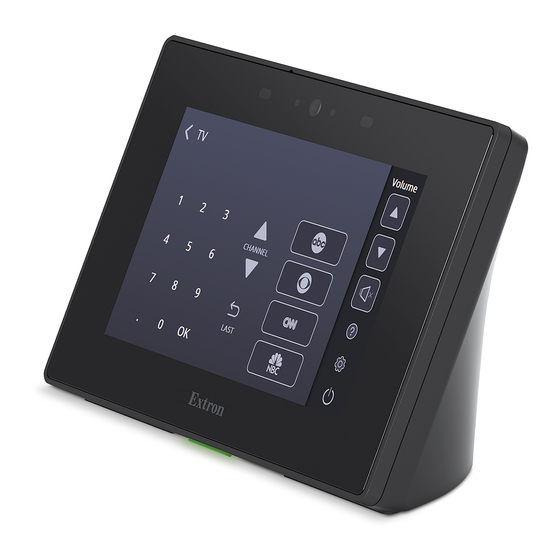

The Extron TLP Pro 525T, TLP Pro 725T, and TLP Pro 1025T series are capacitive touchscreen touchpanels with a TFT active
matrix color LCD screens. All these models can be placed on any convenient flat surface.
The TLP Pro 525T Series are 5-inch tabletop capacitive touchscreens with a resolution of 800x480 and 24-bit color depth.
The TLP Pro 725T Series are 7-inch tabletop capacitive touchscreens with a resolution of 1024x600 and 24-bit color depth.
The TLP Pro 1025T Series are 10-inch tabletop capacitive touchscreens with a resolution of 1280x800 and 24-bit color depth.
This guide provides instructions for experienced installers to install these touchpanels. For complete instructions, see the
TLP Pro 525, 725, and 1025 Series User Guide, at www.extron.com.
Setup Checklist
Get Ready
Download and install the latest version of the following software:
…
GUI Designer — For designing layouts for Extron TouchLink
…
… Global Configurator
Global Scripter
…
… Toolbelt — Provides device discovery, device information, firmware updates, and configuration of network settings,
system utilities, and user management for TouchLink Pro devices
NOTE: All four software programs are available from www.extron.com.
… Obtain the following network information from your network administrator:
… DHCP status (on or off). If DHCP is off, you must also obtain:
… IP address
… Username — This can be either admin or user.
… Password — The factory configured passwords for all accounts on this device have been set to the device serial
number. Passwords can be changed during configuration. Passwords are case sensitive.
NOTE:
If the device is reset to default settings, the password is the default password configuration. The default
password is
Make a note of the touchpanel MAC address.
…
Mount and Cable All Devices
NOTE: If the touchpanel is to be permanently fixed to the table, you should set it up for network communication before
mounting.
ATTENTION:
• Do not power on the touchpanels until you have read the Attention in the "Base" section of the TLP Pro 525, 725, and
1025 Series User Guide.
• Ne branchez pas les écrans tactiles avant d'avoir lu la mise en garde dans la section « Base » du TLP Pro 525, 725, and
1025 Series User Guide.
… Mount the units. There are several mounting options for TouchLink Pro touchpanels (see
Connect the touchpanel to a Power over Ethernet injector (not provided). Extron recommends the XTP PI 100 power injector,
…
which must be purchased separately.
Connect the power injector to the LAN and power it on.
…
Plus and Professional — For setting up and configuring the control processor and touchpanel
®
® — Provides an integrated development environment for Extron control systems programming
… Subnet mask
(for either or
extron admin
Pro touchpanels and third party touch interfaces
®
… Gateway
accounts).
user
Product Category
Mounting on the next page).
