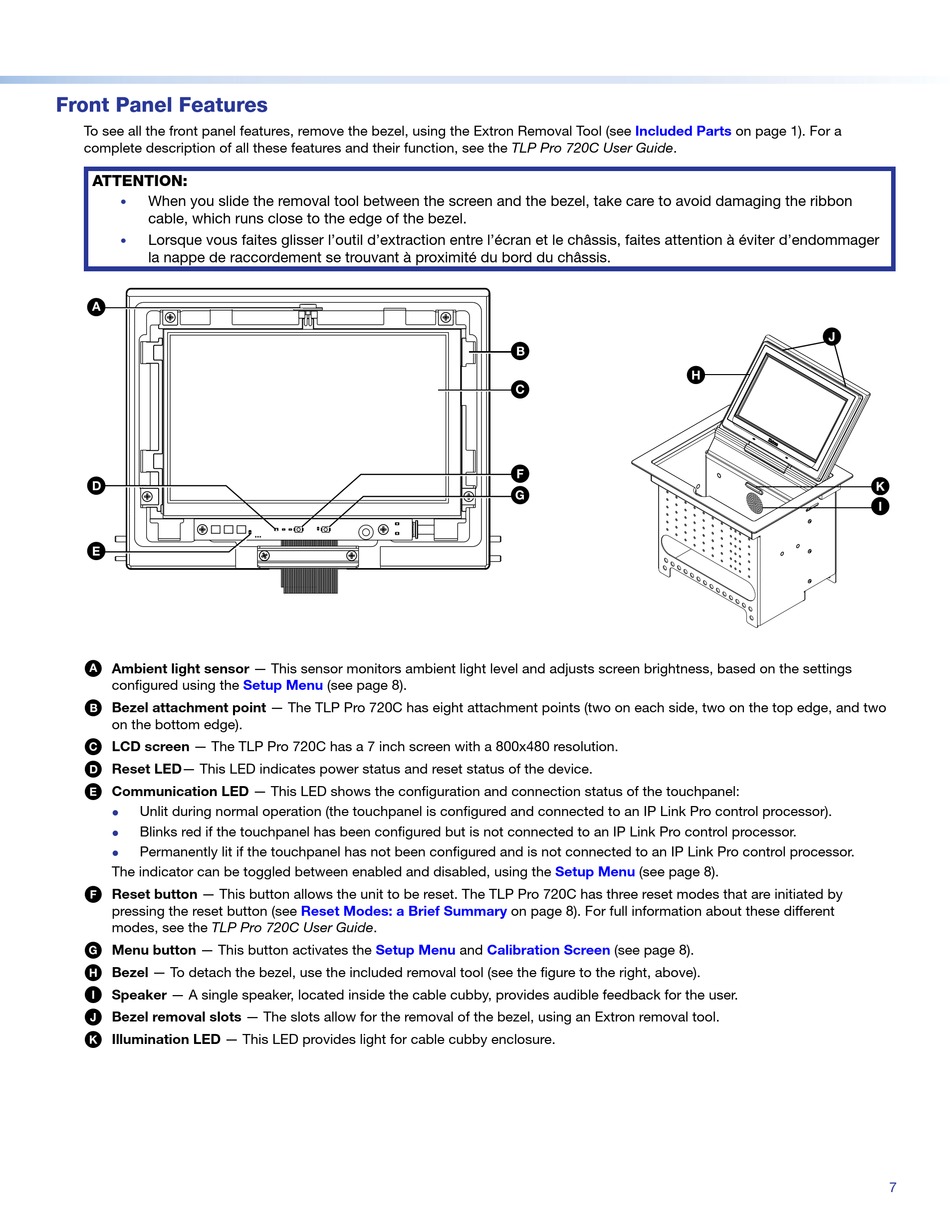

Front Panel Features

To see all the front panel features, remove the bezel, using the Extron Removal Tool (see
complete description of all these features and their function, see the TLP Pro 720C User Guide.
ATTENTION:
When you slide the removal tool between the screen and the bezel, take care to avoid damaging the ribbon
•
cable, which runs close to the edge of the bezel.
Lorsque vous faites glisser l'outil d'extraction entre l'écran et le châssis, faites attention à éviter d'endommager
•
la nappe de raccordement se trouvant à proximité du bord du châssis.
A A A
D D D
E E E
A Ambient light sensor — This sensor monitors ambient light level and adjusts screen brightness, based on the settings
configured using the
B Bezel attachment point — The TLP Pro 720C has eight attachment points (two on each side, two on the top edge, and two
on the bottom edge).
C LCD screen — The TLP Pro 720C has a 7 inch screen with a 800x480 resolution.
Reset LED— This LED indicates power status and reset status of the device.
D
Communication LED — This LED shows the configuration and connection status of the touchpanel:
E
Unlit during normal operation (the touchpanel is configured and connected to an IP Link Pro control processor).
z
Blinks red if the touchpanel has been configured but is not connected to an IP Link Pro control processor.
z
Permanently lit if the touchpanel has not been configured and is not connected to an IP Link Pro control processor.
z
The indicator can be toggled between enabled and disabled, using the
Reset button — This button allows the unit to be reset. The TLP Pro 720C has three reset modes that are initiated by
F
pressing the reset button (see
modes, see the TLP Pro 720C User Guide.
Menu button — This button activates the
G
H Bezel — To detach the bezel, use the included removal tool (see the figure to the right, above).
I Speaker — A single speaker, located inside the cable cubby, provides audible feedback for the user.
Bezel removal slots — The slots allow for the removal of the bezel, using an Extron removal tool.
J
K Illumination LED — This LED provides light for cable cubby enclosure.
Setup Menu
(see page 8).
Reset Modes: a Brief Summary
Setup Menu
Included Parts
B B B
C C C
F F F
G G G
Setup Menu
on page 8). For full information about these different
and Calibration Screen (see page 8).
Product Category
on page 1). For a
H H H
(see page 8).
J J J
K K K
I I I
