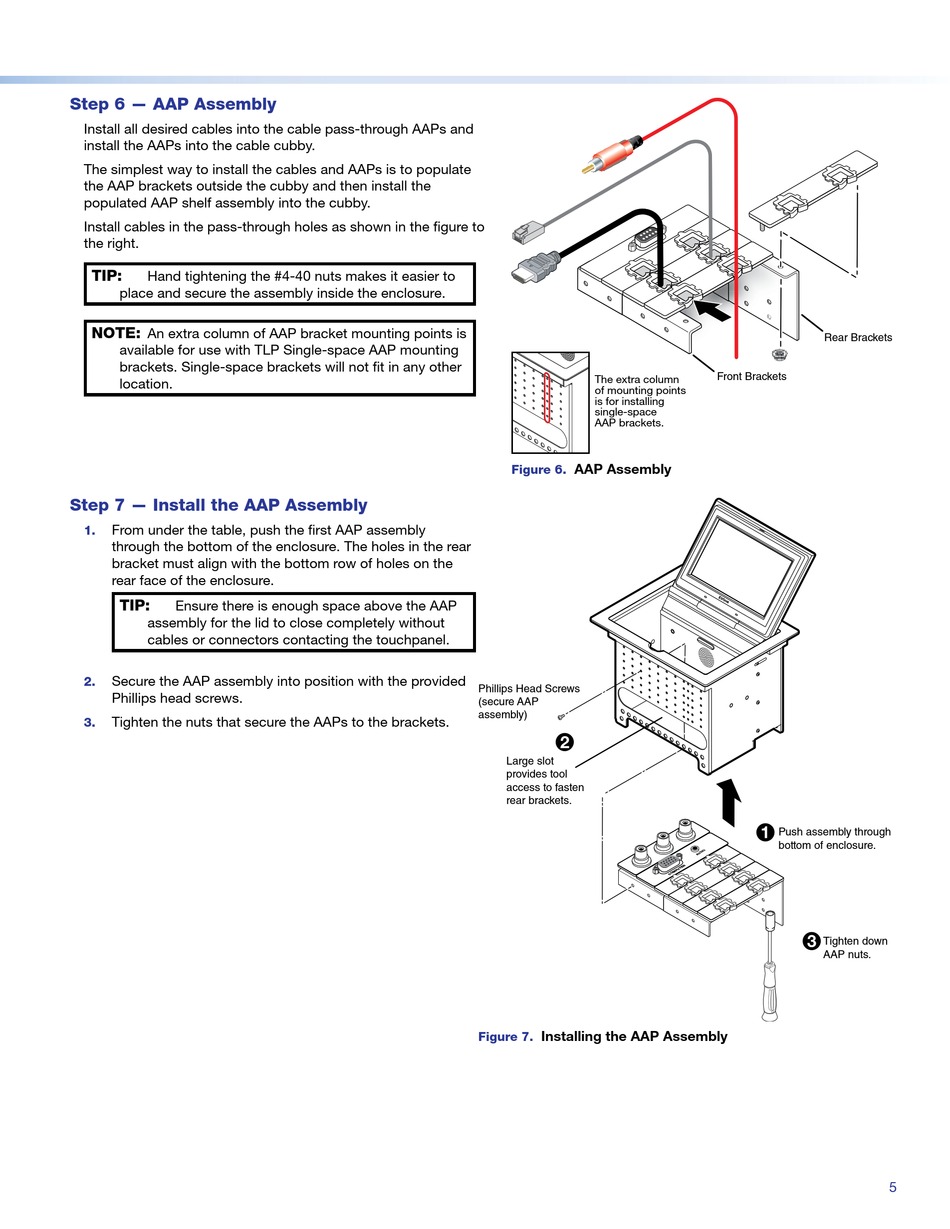

Step 6 — AAP Assembly
Install all desired cables into the cable pass-through AAPs and
install the AAPs into the cable cubby.
The simplest way to install the cables and AAPs is to populate
the AAP brackets outside the cubby and then install the
populated AAP shelf assembly into the cubby.
Install cables in the pass-through holes as shown in the figure to
the right.
TIP:
Hand tightening the #4-40 nuts makes it easier to
place and secure the assembly inside the enclosure.
NOTE:
An extra column of AAP bracket mounting points is
available for use with TLP Single-space AAP mounting
brackets. Single-space brackets will not fit in any other
location.
Step 7 — Install the AAP Assembly
From under the table, push the first AAP assembly
1.
through the bottom of the enclosure. The holes in the rear
bracket must align with the bottom row of holes on the
rear face of the enclosure.
TIP:
Ensure there is enough space above the AAP
assembly for the lid to close completely without
cables or connectors contacting the touchpanel.
Secure the AAP assembly into position with the provided
2.
Phillips head screws.
Tighten the nuts that secure the AAPs to the brackets.
3.
The extra column
of mounting points
is for installing
single-space
AAP brackets.
AAP Assembly
Figure 6.
Phillips Head Screws
(secure AAP
assembly)
2 2 2
Large slot
provides tool
access to fasten
rear brackets.
Installing the AAP Assembly
Figure 7.
Product Category
Rear Brackets
Front Brackets
1 1 1
Push assembly through
bottom of enclosure.
3 3 3
Tighten down
AAP nuts.
