RESET
MENU

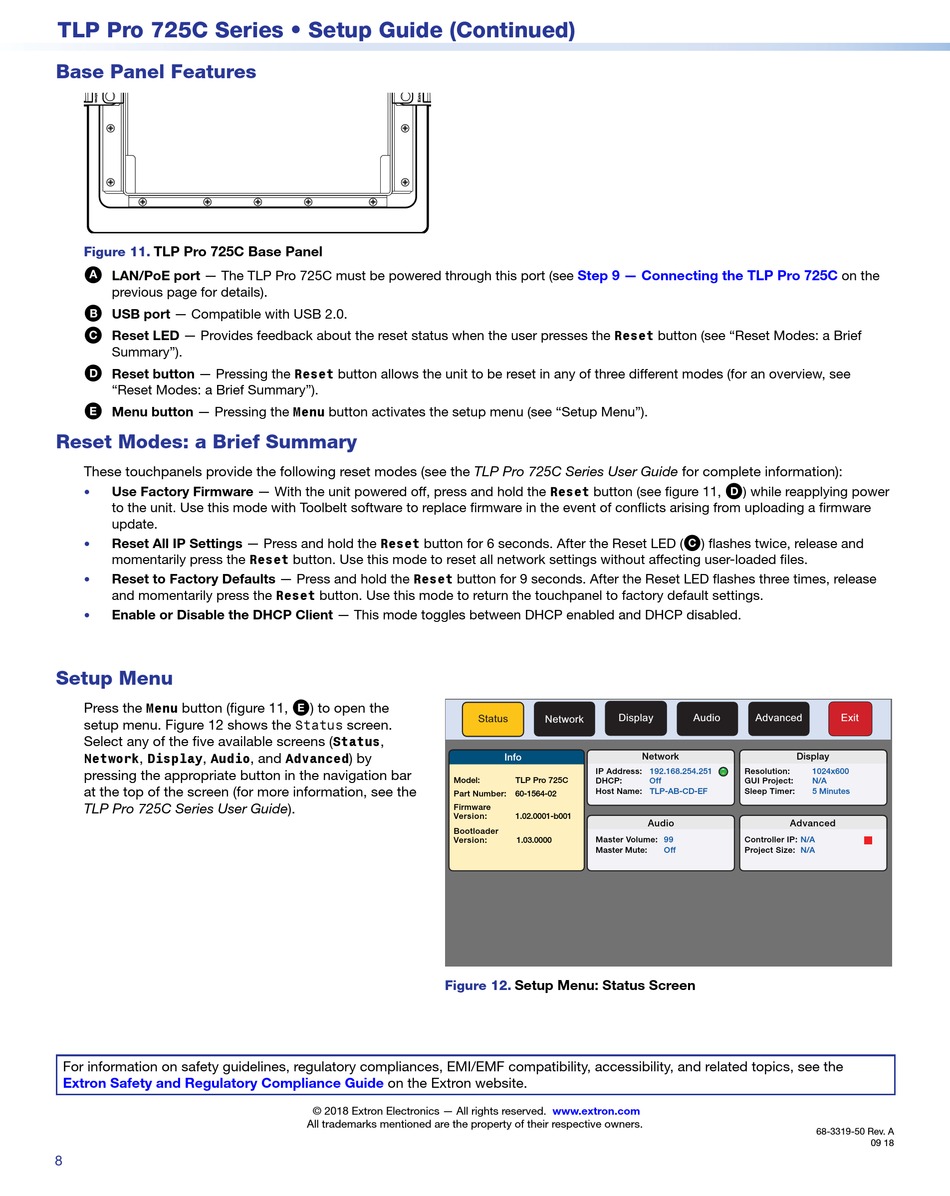

TLP Pro 725C Series • Setup Guide (Continued)
Base Panel Features
1
TLP Pro 725C Base Panel
Figure 11.
A
LAN/PoE port — The TLP Pro 725C must be powered through this port (see
previous page for details) .
B USB port — Compatible with USB 2.0.
C
Reset LED — Provides feedback about the reset status when the user presses the Reset button (see "Reset Modes: a Brief
Summary").
D
Reset button — Pressing the Reset button allows the unit to be reset in any of three different modes (for an overview, see

"Reset Modes: a Brief Summary").

E
Menu button — Pressing the Menu button activates the setup menu (see "Setup Menu").
Reset Modes: a Brief Summary
These touchpanels provide the following reset modes (see the TLP Pro 725C Series User Guide for complete information):
Use Factory Firmware — With the unit powered off, press and hold the Reset button (see figure 11,
•
to the unit. Use this mode with Toolbelt software to replace firmware in the event of conflicts arising from uploading a firmware
update.
Reset All IP Settings — Press and hold the Reset button for 6 seconds. After the Reset LED (
•
momentarily press the Reset button. Use this mode to reset all network settings without affecting user-loaded files.
Reset to Factory Defaults — Press and hold the Reset button for 9 seconds. After the Reset LED flashes three times, release
•
and momentarily press the Reset button. Use this mode to return the touchpanel to factory default settings.
Enable or Disable the DHCP Client — This mode toggles between DHCP enabled and DHCP disabled.
•

Setup Menu

Press the
Menu
setup menu. Figure 12 shows the
Select any of the five available screens (
Network , Display
pressing the appropriate button in the navigation bar
at the top of the screen (for more information, see the
TLP Pro 725C Series User Guide).
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and Regulatory Compliance Guide
8
USB
LAN / PoE
275 mA
button (figure 11, ) to open the
E
screen.
Status
Status
, Audio , and Advanced ) by
© 2018 Extron Electronics — All rights reserved.
All trademarks mentioned are the property of their respective owners.
Status Network
,
Info
Model: TLP Pro 725C
Part Number: 60-1564-02
Firmware
Version: 1.02.0001-b001
Bootloader
Version: 1.03.0000
Setup Menu: Status Screen
Figure 12.
on the Extron website.
www.extron.com
Step 9 — Connecting the TLP Pro 725C
D ) while reapplying power
C ) flashes twice, release and
Display Audio Advanced
Network
IP Address: 192.168.254.251 Resolution:
DHCP: Off GUI Project:
Host Name: TLP-AB-CD-EF Sleep Timer:
Audio
Master Volume: 99 Controller IP:
Master Mute: Off Project Size:
on the
Exit
Display
1024x600
N/A
5 Minutes
Advanced
N/A
N/A
68-3319-50 Rev. A
09 18
