Extron electronics TLP Pro 525T Series Setup Manual

TLP Pro 525T, 725T, and 1025T Series • Setup Guide
Overview

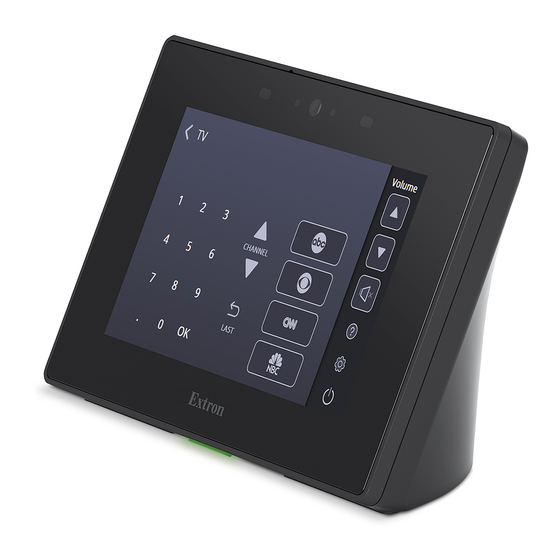

The Extron TLP Pro 525T, TLP Pro 725T, and TLP Pro 1025T series are tabletop capacitive touchscreen touchpanels with a TFT
active matrix color LCD screens. All these models can be placed on any convenient flat surface.
The TLP Pro 525T Series are 5-inch touchscreens with a resolution of 800x480.
•
The TLP Pro 725T Series are 7-inch touchscreens with a resolution of 1024x600.
•
The TLP Pro 1025T Series are 10-inch touchscreens with a resolution of 1280x800.
•
All three models have 24-bit color depth.
This guide provides instructions for experienced installers to install these touchpanels. For complete instructions, see the
TLP Pro 525, 725, and 1025 Series User Guide, at www.extron.com.
Setup Checklist
Get Ready
… Download and install the latest version of the following software:
… GUI Designer — For designing layouts for Extron TouchLink
Global Configurator
…
Global Scripter
…
… Toolbelt — Provides device discovery, device information, firmware updates, and configuration of network settings,
system utilities, and user management for TouchLink Pro devices
NOTE: All four software programs are available from www.extron.com.
… Obtain the following network information from your network administrator:
DHCP status (on or off). If DHCP is off, you must also obtain:
…
… IP address
… Username — This can be either admin or user.
Password — The factory configured passwords for all accounts on this device have been set to the device serial
…
number. Passwords can be changed during configuration. Passwords are case sensitive.
NOTE:
If the device is reset to default settings, the password is the default password, which is
or
admin user
… Make a note of the touchpanel MAC address.
Mount and Cable All Devices
NOTE: If the touchpanel is to be permanently fixed to the table, you should set it up for network communication before
mounting.
ATTENTION:
• Do not power on the touchpanels until you have read the Attention notice in the "Base" section of the
TLP Pro 525, 725, and 1025 Series User Guide.
• Ne branchez pas les écrans tactiles avant d'avoir lu la mise en garde dans la section « Base » du
TLP Pro 525, 725, and 1025 Series User Guide.
… Mount the units. There are several mounting options for TouchLink Pro touchpanels (see
… Connect the touchpanel to a Power over Ethernet injector (not provided). Extron recommends the XTP PI 100 power injector,
which must be purchased separately.
… Connect the power injector to the LAN and power it on.
Plus and Professional — For setting up and configuring the control processor and touchpanel
®
® — Provides an integrated development environment for Extron control systems programming
… Subnet mask
accounts).
Pro touchpanels and third party touch interfaces
®
… Gateway
Mounting
Product Category
extron (for either
on the next page).
1
