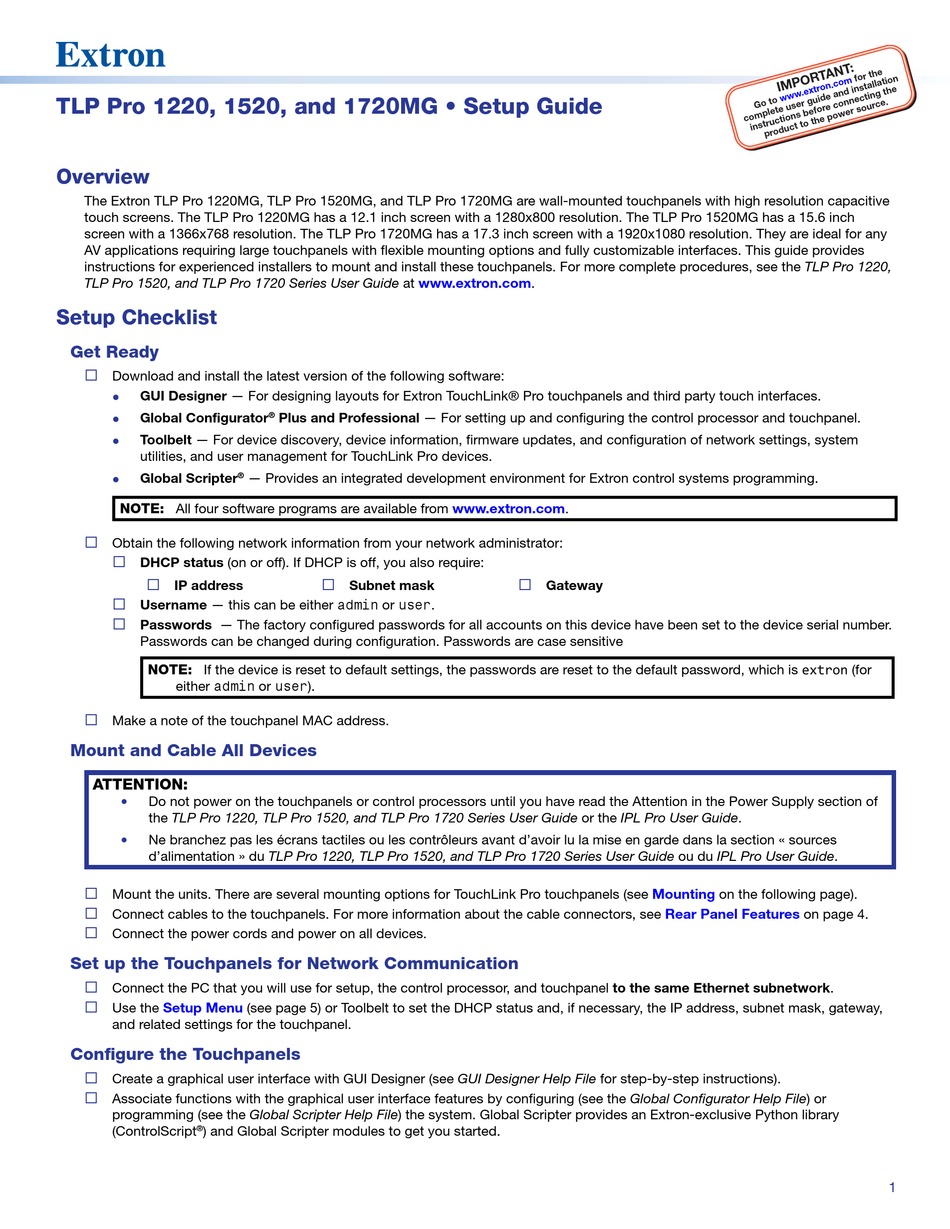

TLP Pro 1220, 1520, and 1720MG • Setup Guide

Overview

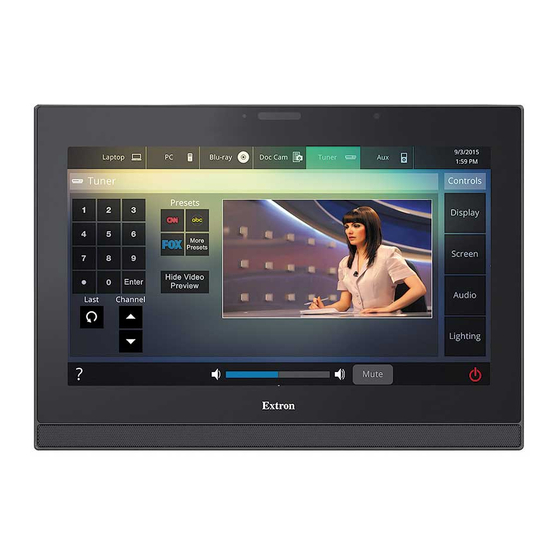

The Extron TLP Pro 1220MG, TLP Pro 1520MG, and TLP Pro 1720MG are wall-mounted touchpanels with high resolution capacitive
touch screens. The TLP Pro 1220MG has a 12.1 inch screen with a 1280x800 resolution. The TLP Pro 1520MG has a 15.6 inch
screen with a 1366x768 resolution. The TLP Pro 1720MG has a 17.3 inch screen with a 1920x1080 resolution. They are ideal for any
AV applications requiring large touchpanels with flexible mounting options and fully customizable interfaces. This guide provides
instructions for experienced installers to mount and install these touchpanels. For more complete procedures, see the TLP Pro 1220,
TLP Pro 1520, and TLP Pro 1720 Series User Guide at

Setup Checklist

Get Ready
… Download and install the latest version of the following software:
GUI Designer — For designing layouts for Extron TouchLink® Pro touchpanels and third party touch interfaces.
z
Global Configurator
z
Toolbelt — For device discovery, device information, firmware updates, and configuration of network settings, system
z
utilities, and user management for TouchLink Pro devices.
Global Scripter
z
NOTE: All four software programs are available from
…
Obtain the following network information from your network administrator:
… DHCP status (on or off). If DHCP is off, you also require:
… IP address
Username — this can be either admin or user.
…
… Passwords — The factory configured passwords for all accounts on this device have been set to the device serial number.
Passwords can be changed during configuration. Passwords are case sensitive
NOTE: If the device is reset to default settings, the passwords are reset to the default password, which is extron (for
either admin or user).
… Make a note of the touchpanel MAC address.

Mount and Cable All Devices

ATTENTION:
• Do not power on the touchpanels or control processors until you have read the Attention in the Power Supply section of
the TLP Pro 1220, TLP Pro 1520, and TLP Pro 1720 Series User Guide or the IPL Pro User Guide.
• Ne branchez pas les écrans tactiles ou les contrôleurs avant d'avoir lu la mise en garde dans la section « sources
d'alimentation » du TLP Pro 1220, TLP Pro 1520, and TLP Pro 1720 Series User Guide ou du IPL Pro User Guide.
… Mount the units. There are several mounting options for TouchLink Pro touchpanels (see
… Connect cables to the touchpanels. For more information about the cable connectors, see
…
Connect the power cords and power on all devices.

Set up the Touchpanels for Network Communication

Connect the PC that you will use for setup, the control processor, and touchpanel to the same Ethernet subnetwork.
…
Setup Menu
… Use the
and related settings for the touchpanel.

Configure the Touchpanels

… Create a graphical user interface with GUI Designer (see GUI Designer Help File for step-by-step instructions).
… Associate functions with the graphical user interface features by configuring (see the Global Configurator Help File) or
programming (see the Global Scripter Help File) the system. Global Scripter provides an Extron-exclusive Python library
(ControlScript ) and Global Scripter modules to get you started.
®
Plus and Professional — For setting up and configuring the control processor and touchpanel.
®
® — Provides an integrated development environment for Extron control systems programming.
… Subnet mask
(see page 5) or Toolbelt to set the DHCP status and, if necessary, the IP address, subnet mask, gateway,
www.extron.com
.
www.extron.com
.
… Gateway
Mounting
on the following page).
Rear Panel Features
on page 4.
