TLP Pro 720C • Setup Guide (Continued)

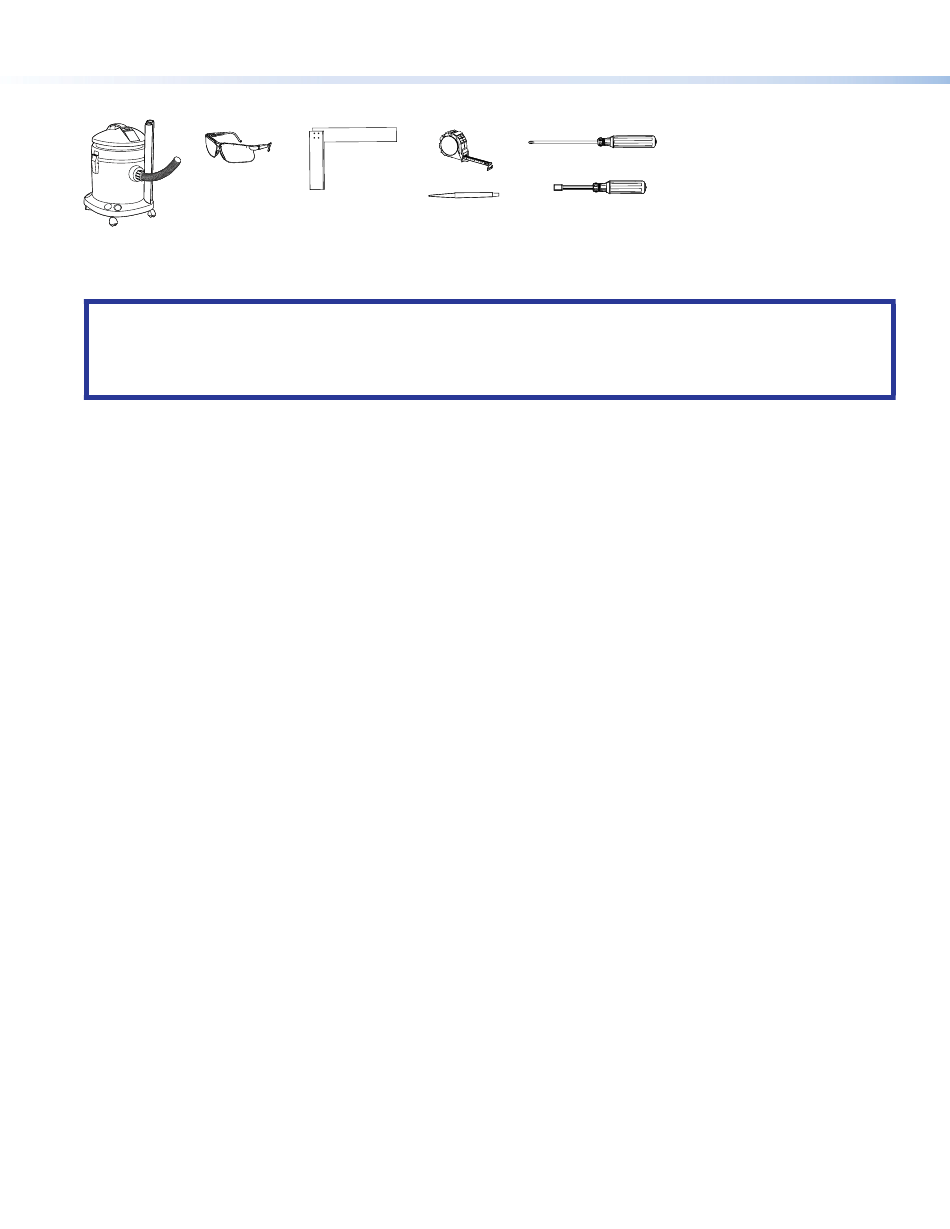

Tools Required for Installation

Safety Glasses
Vacuum Cleaner
Tools Required for Installation
Figure 2.
Mount and Cable All Devices
ATTENTION:
• Do not power on the touchpanels until you have read the Attention in the Power Supply section of the TLP Pro 720C
User Guide.
• Ne branchez pas les écrans tactiles avant d'avoir lu la mise en garde dans la section « sources d'alimentation » du
TLP Pro 720C User Guide.
… Mount the units (see
… Install power modules in the cable cubby.
… Install AAPs and run cables to the cable cubby.
… Connect cables to the touchpanels.
Connect the power cords and power on all devices.
…
Set up the Touchpanels for Network Communication
… Connect the PC that you will use for setup, the control processor, and the touchpanel to the same Ethernet subnetwork.
… Use the Setup Menu
gateway, and related settings for the touchpanel.

Configure the Touchpanels

The GUI Designer Help File, the Global Configurator Help File, and the Toolbelt Help File provide step-by-step instructions and
detailed information. The Global Configurator Help File includes an introduction to the software and sections on how to start a
project and configuration.
Global Scripter provides an Extron-exclusive Python library (ControlScript®) and Global Scripter modules to get you started.
Mounting
Planning
… Before making any cuts, select the best location for the TLP Pro 720C.
… Ensure that the edge that opens on the lid is oriented correctly.
… Ensure there is enough space for all the system cables and components, including cable retractors, if they are to be installed.
The space requirements for retractors are shown in the TLP Pro 720C User Guide, which is available at www.extron.com.
… Decide on the method for cutting a hole in the table:
… Hand router and metal router guide
… CNC wood router
Jigsaw and paper template
…
Verify that you have the correct template or dimensions.
…
… Check all relevant regulations.
… Ensure that the installation complies with local, state, and national building and electrical codes.
… Ensure that the installation complies with the Americans with Disabilities Act or other accessibility requirements.
2
Square
Mounting below).
(see page 8) or Toolbelt to set the DHCP status and, if necessary, the IP address, subnet mask,
Phillips Screw Driver
Tape Measure
1/4" Hex Nut Driver
Marking Pen
